Rear Package Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  2. Remove the fasteners.
  3. Pull the rear package trim upward and detach clips A and locator pin B from the body.
  4. Detach tabs C from the body and remove the rear package trim.
  5. Install in the reverse order of removal.

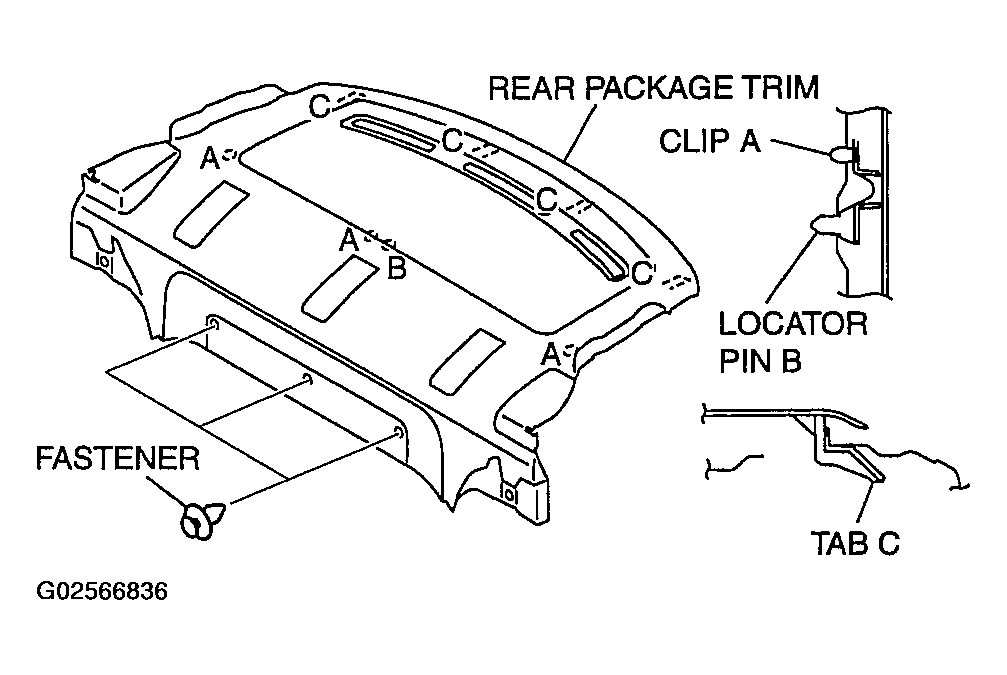

    Fig 1: Removing/Installing Rear Package Trim
    G02566836Courtesy of MAZDA MOTORS CORP.
