Windshield Washer Hose Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

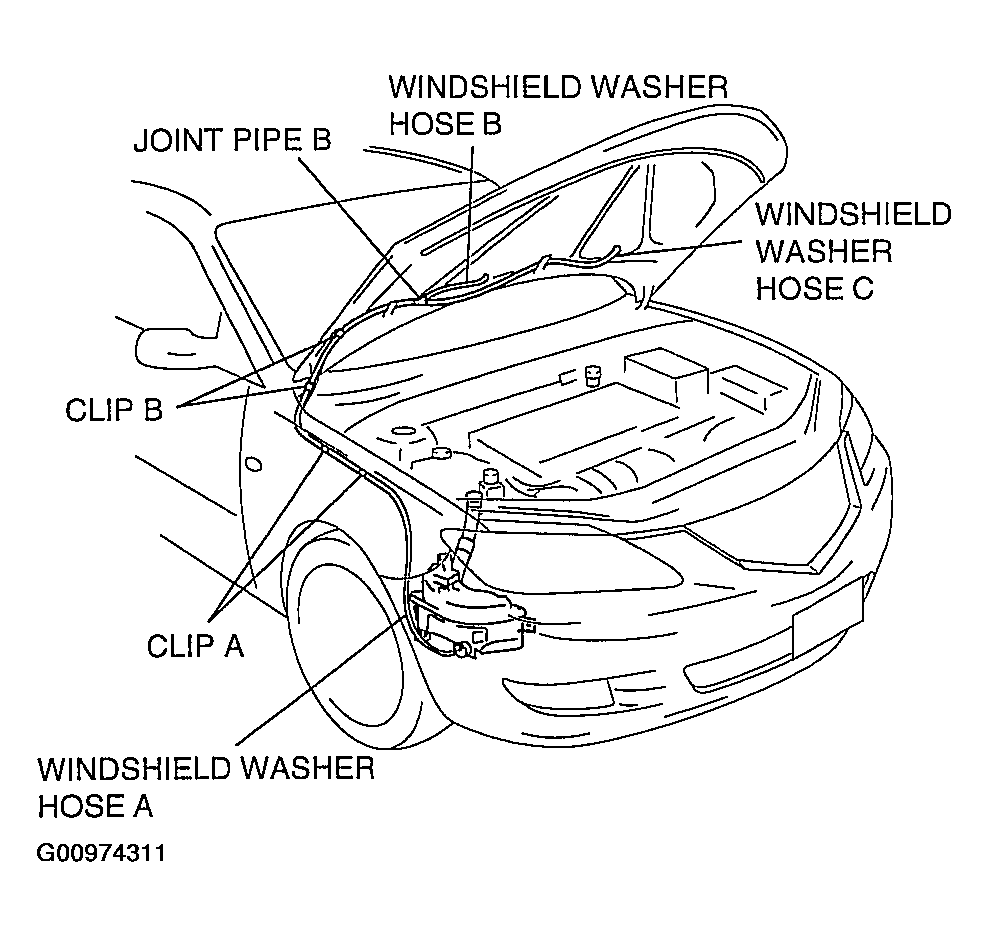

- Remove the hood insulator. (See HOOD REMOVAL/INSTALLATION .)
- Slightly bend back the mudguard (RH).
- Disconnect joint pipe A.
- Remove windshield washer hose A from clips A.
- Remove clips B.
- Disconnect windshield washer hose B from the washer nozzle.
- Disconnect windshield washer hose C from the washer nozzle.
- Disconnect joint pipe B, then remove windshield washer hose A, B and C.
- Install in the reverse order of removal.
