Wiper And Washer Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Front scuff plate (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
- Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
- Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)

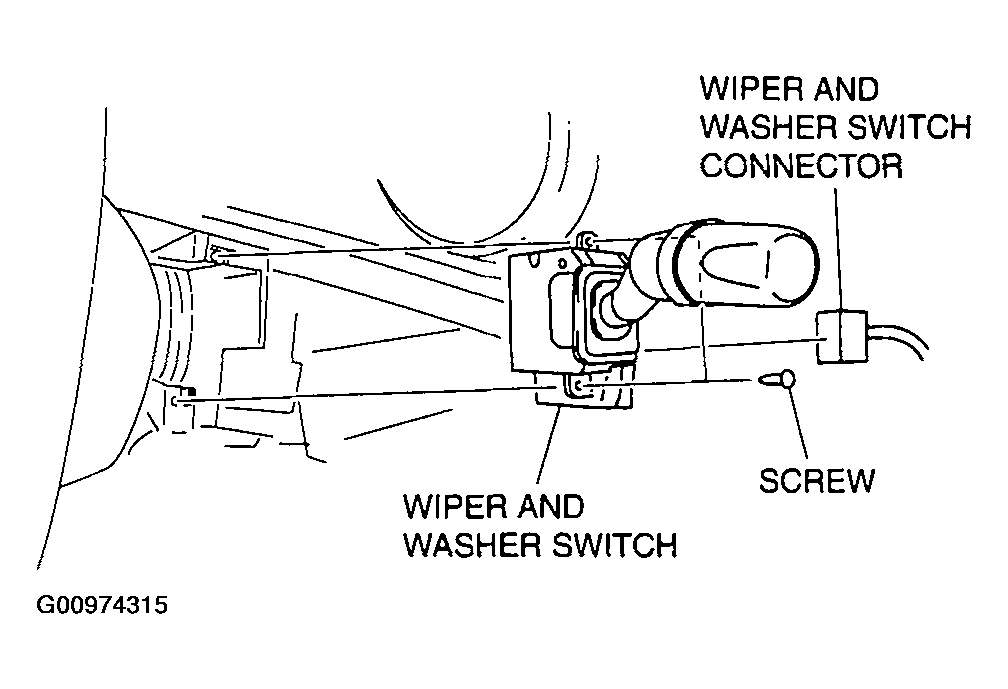

- Disconnect the wiper and washer switch connector.
- Remove the screws, then remove the wiper and washer switch.
- Install in the reverse order of removal.
