Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the wiper motor onto the wiper transmission assembly with the 2 bolts.
Tighten

Tighten the 2 bolts to 8 N.m (71 lb in).

Fig 1: Installing Wiper Motor (1 Of 5)

G01457698

Courtesy of GENERAL MOTORS CORP.

Install the drive link onto the wiper motor crank arm with the J 39529.

Fig 2: Installing Wiper Motor (2 Of 5)

G01457699

Courtesy of GENERAL MOTORS CORP.

Install the wiper transmission assembly on the vehicle with the 2 bolts.
Tighten

Tighten the 2 bolts to 9 N.m (80 lb in).

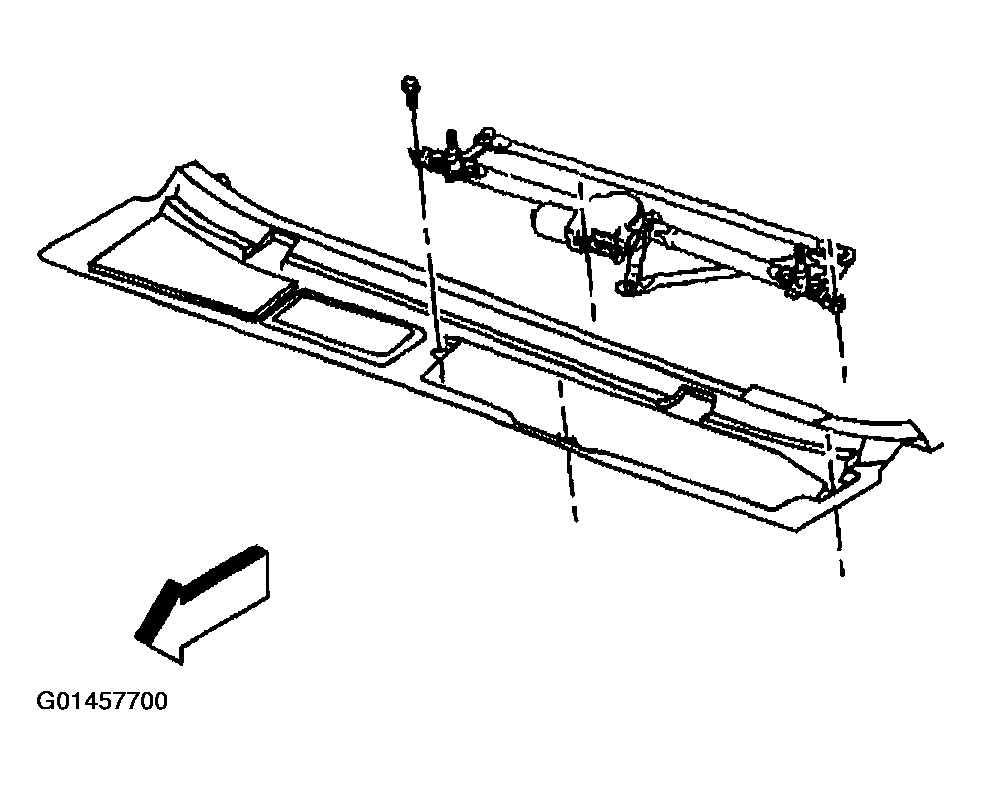

Fig 3: Installing Wiper Motor (3 Of 5)

G01457700

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the wiper motor.

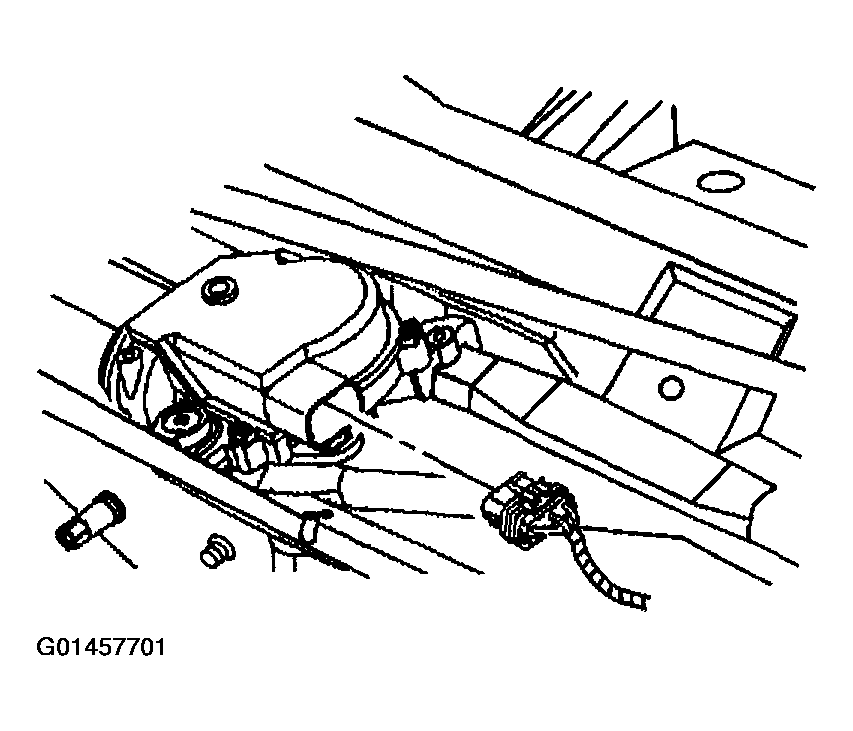

Fig 4: Installing Wiper Motor (4 Of 5)

G01457701

Courtesy of GENERAL MOTORS CORP.

Install the reinforcement panel with the 4 bolts.
Tighten

Tighten the 4 bolts to 9 N.m (80 lb in).

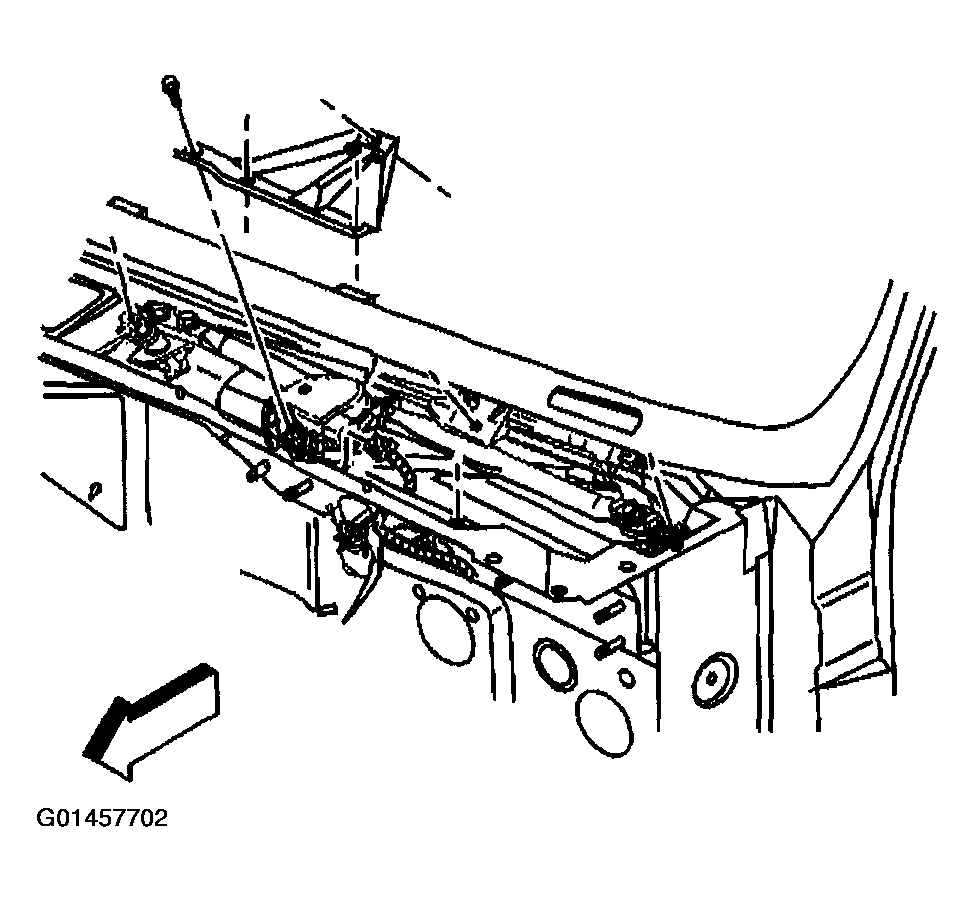

Fig 5: Installing Wiper Motor (5 Of 5)

G01457702

Courtesy of GENERAL MOTORS CORP.

Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
Install the wiper arms. Refer to WIPER ARM REPLACEMENT .
Operate the wipers and check for proper operation.
