Aiming Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle on a level surface 7.6 m (25 ft) away from a wall or other flat surface.
Measure the distance from the floor to the center of the fog lamp (5).
Using this measurement, mark the horizontal centerline of the fog lamp (1) on the flat surface directly in front of the vehicle.

Fig 1: Aiming Procedure Of Fog Lamp (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Turn ON the fog lamps.

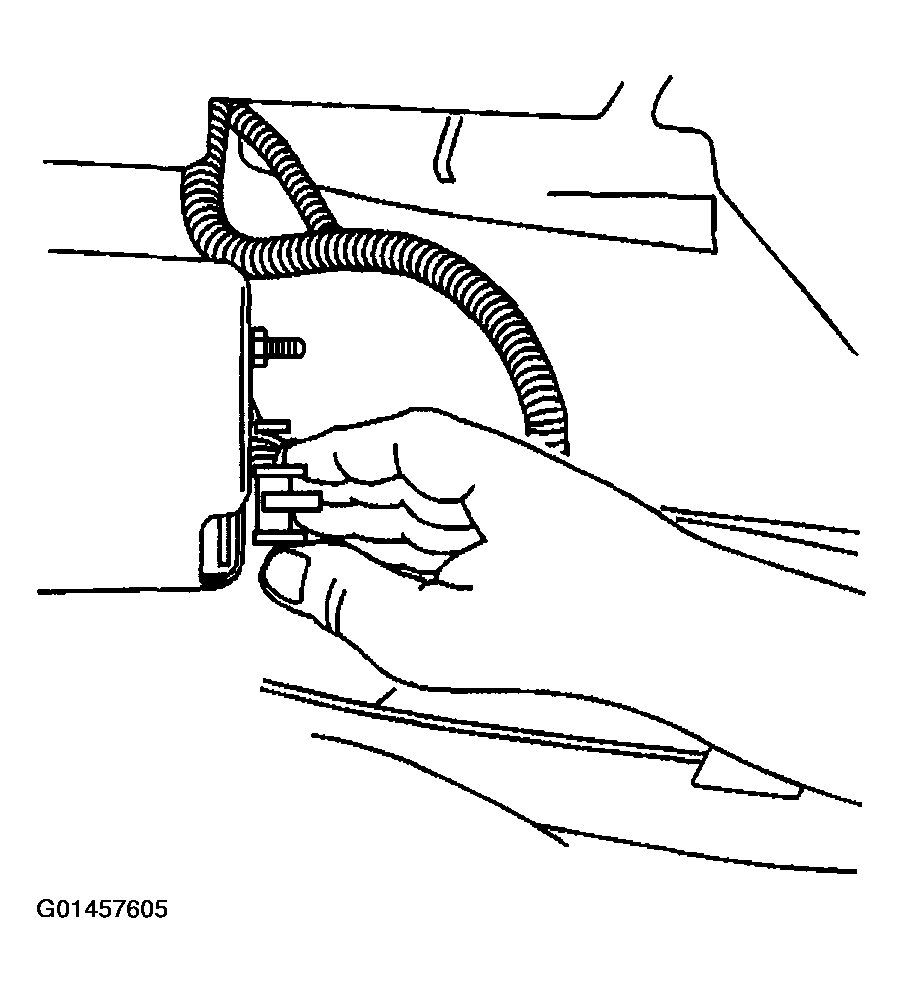

Reach under the rear lower edge of the front fascia in order to access the fog lamp vertical adjustment screw on the rear of the fog lamp.
Adjust the fog lamp so that the top edge of the fog lamp beam pattern is 100 mm (4 in) below the horizontal centerline.
Turn OFF the fog lamps.

Fig 2: Aiming Procedure Of Fog Lamp (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
