Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the wheelhouse panel to the wheelhouse.
Install the push-in retainers (2) to the wheelhouse panel.

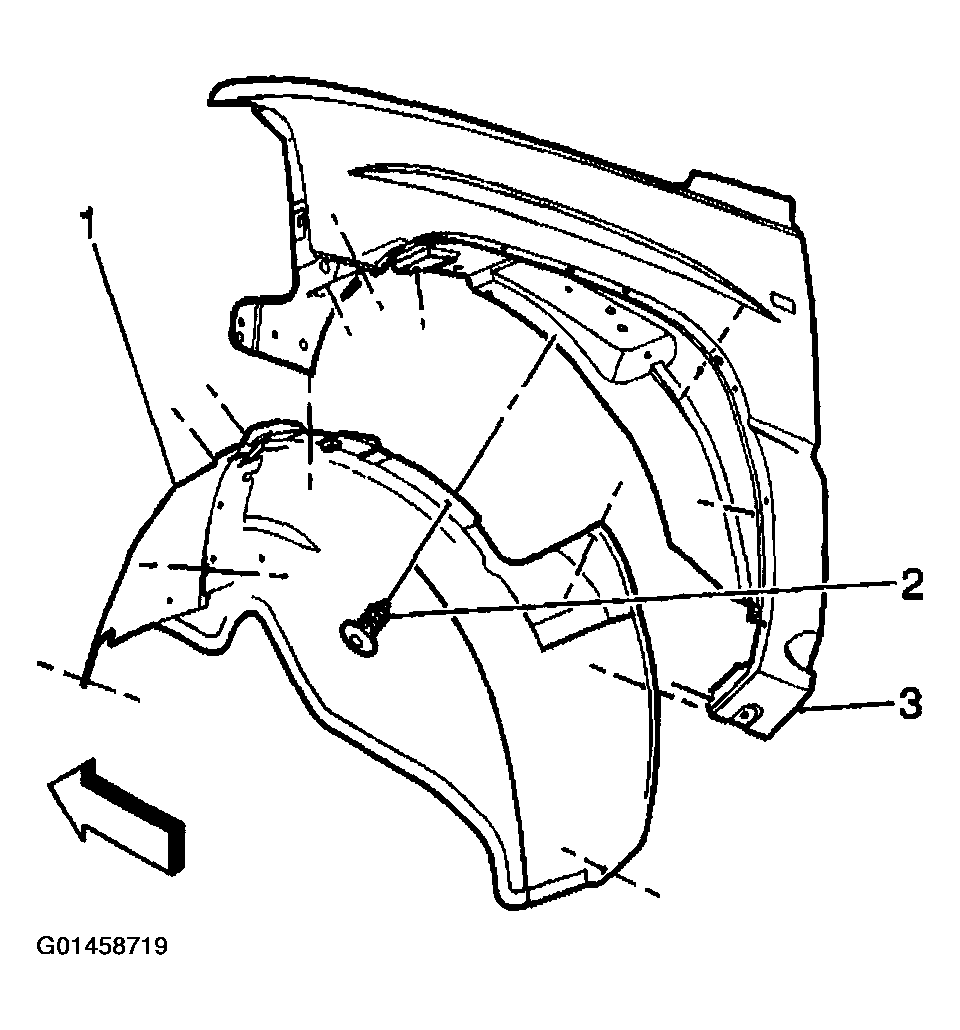

Fig 1: Installing Wheelhouse Panel
Courtesy of GENERAL MOTORS CORP.
Install the retainers (2) to the front fascia (1). If applicable.
Install the top clips retaining the harness to the top of the wheelhouse panel.

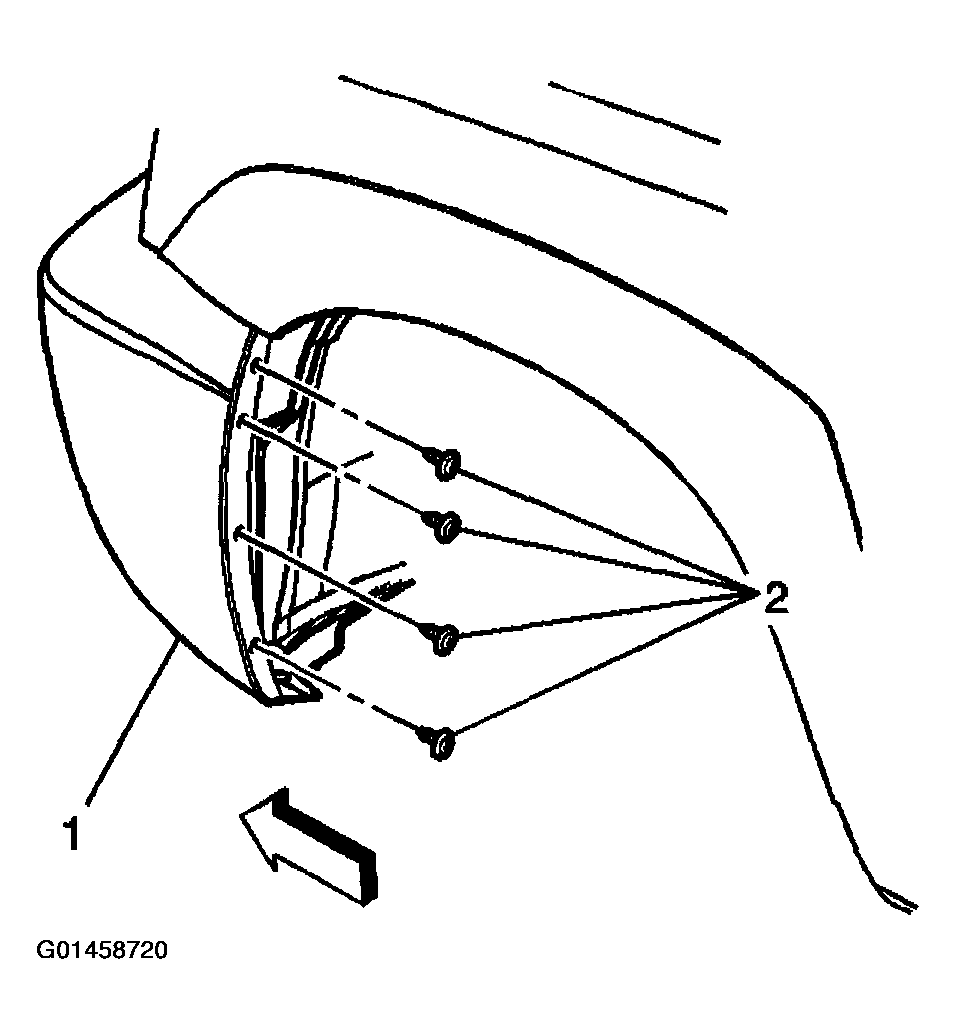

Fig 2: Installing Retainers To Front Fascia
Courtesy of GENERAL MOTORS CORP.
