Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the lower control arm. Refer to LOWER CONTROL ARM REPLACEMENT .
- Secure the lower control arm in a vice.
Important: The lower control arm vertical bushing MUST be installed in the same position which it was removed in order to maintain the original vehicle ride, handling and road feel.

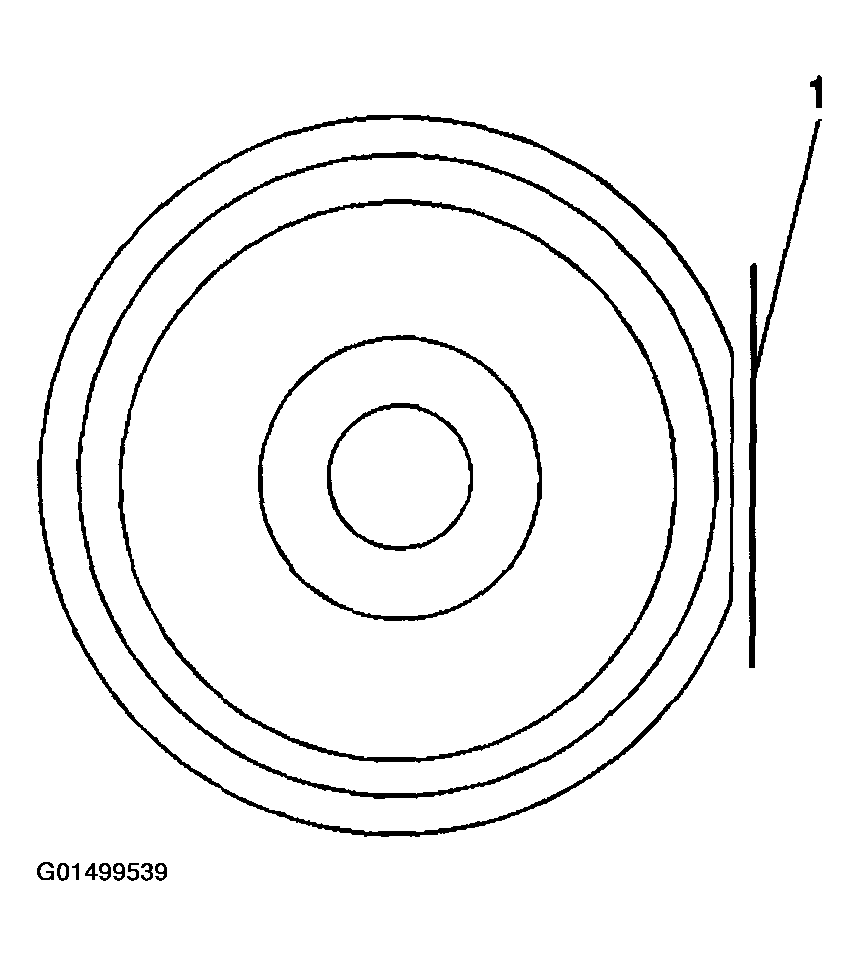

- Mark the lower control arm along the flat edge of the bushing flange (1).
Important: Apply J23444-A (or equivalent high pressure lubricant) to the threads of the J21474-27.

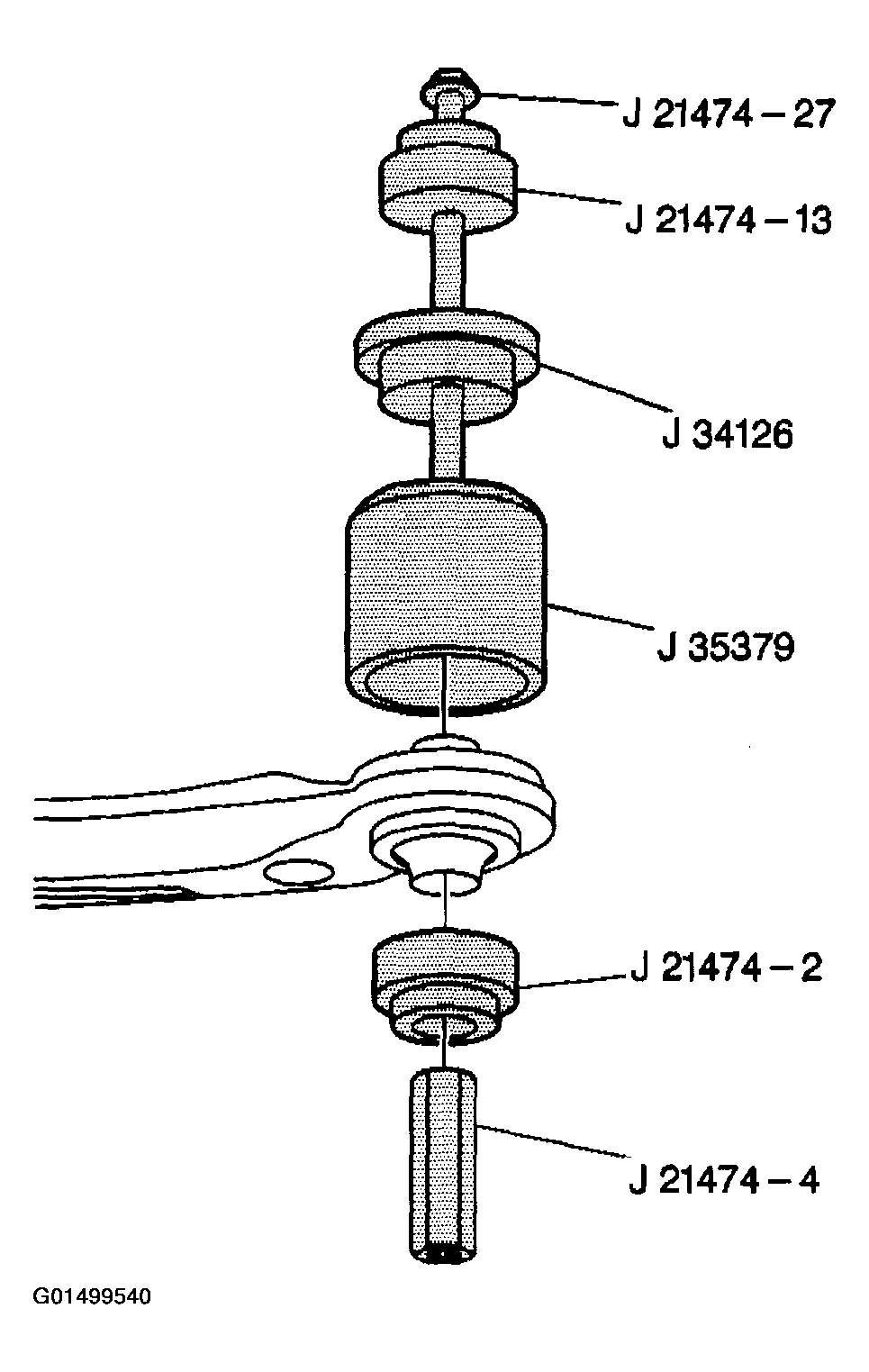

- Assemble the following bushing tools as shown.
- Tighten the J21474-4 until the bushing is removed from the control arm.
- Disassemble the bushing tools.
