Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer hose to the vehicle.
  2. Install the washer hose to the washer pump.
  3. Connect the washer hose to the washer solvent container neck.
  4. Install the washer hose grommet to the slot in the grille panel.
  5. Connect the washer hose to the air inlet grille panel.
  6. Connect the washer hose to the wiper arms.
  7. Close the hood.

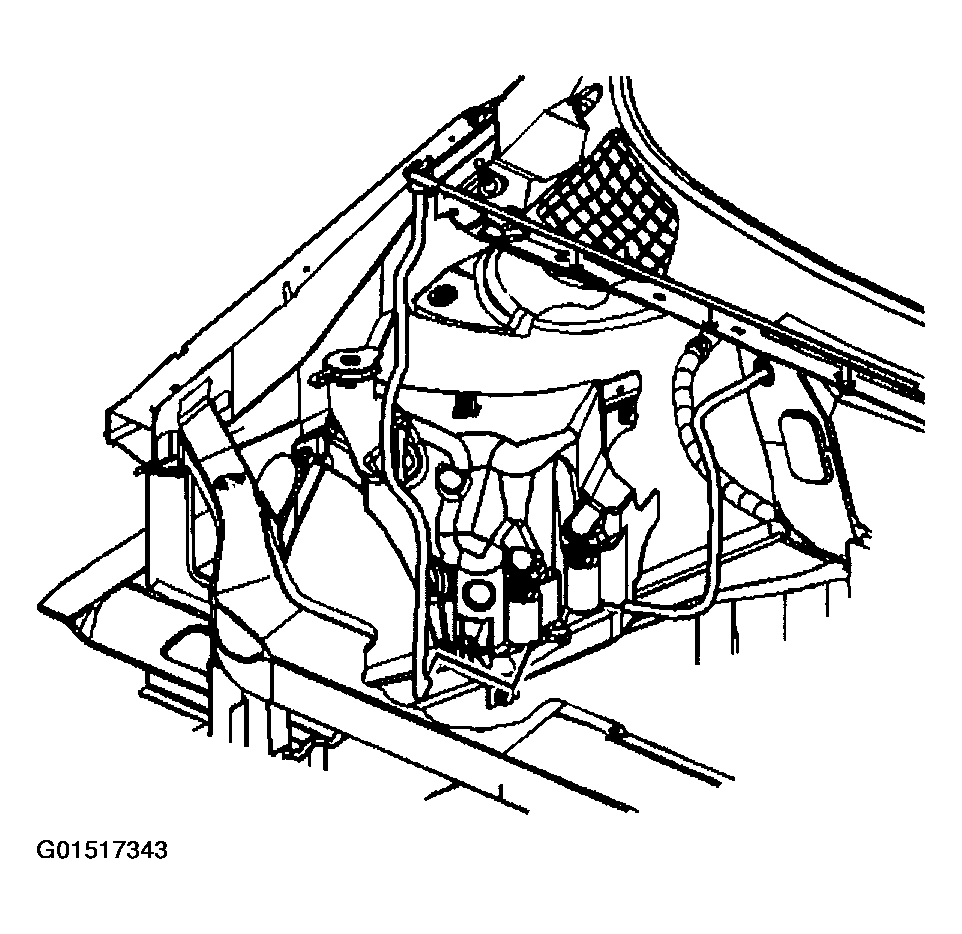

    Fig 1: Installing Windshield Washer Hose
    G01517343Courtesy of GENERAL MOTORS CORP.
