Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front washer pump to the washer solvent container pressing in until fully seated.

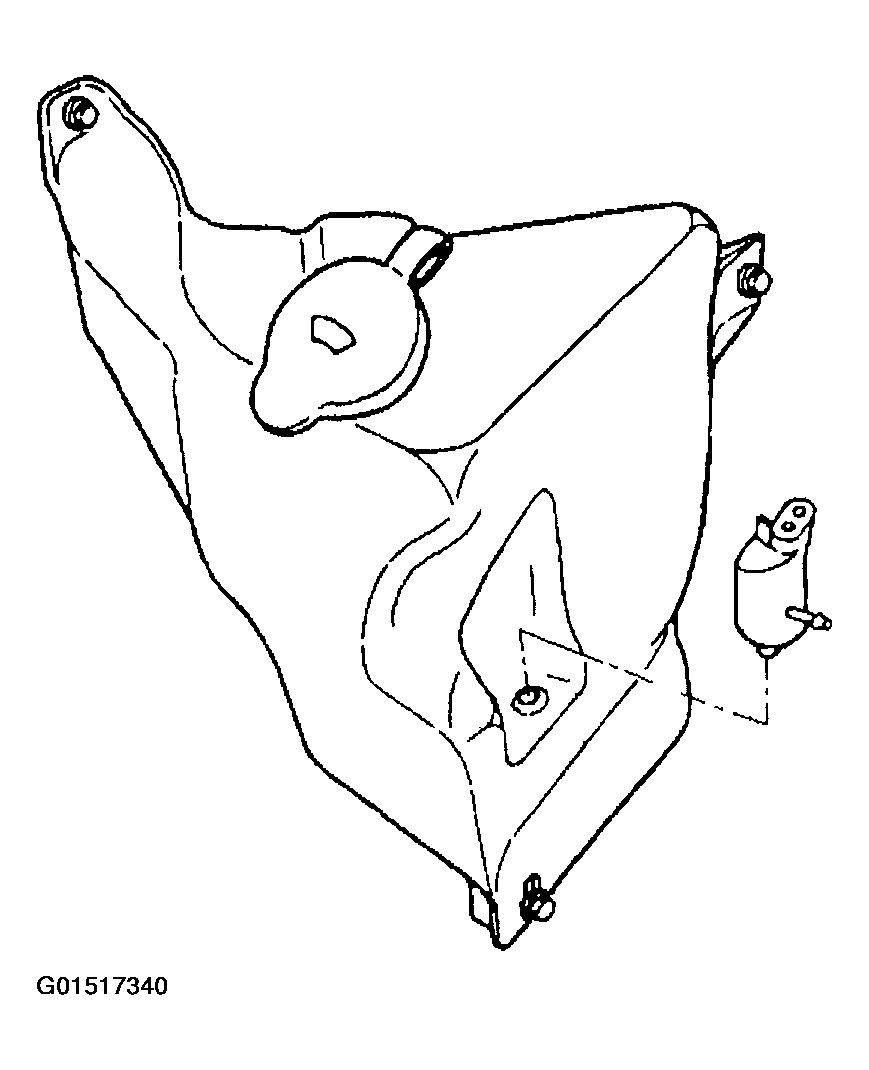

    Fig 1: Positioning Front Washer Pump
    G01517340Courtesy of GENERAL MOTORS CORP.
  2. Connect the front washer hose to the front washer pump.
  3. Connect the front washer pump electrical connector.
  4. Fill the washer solvent container with washer solvent.
  5. Close the hood.

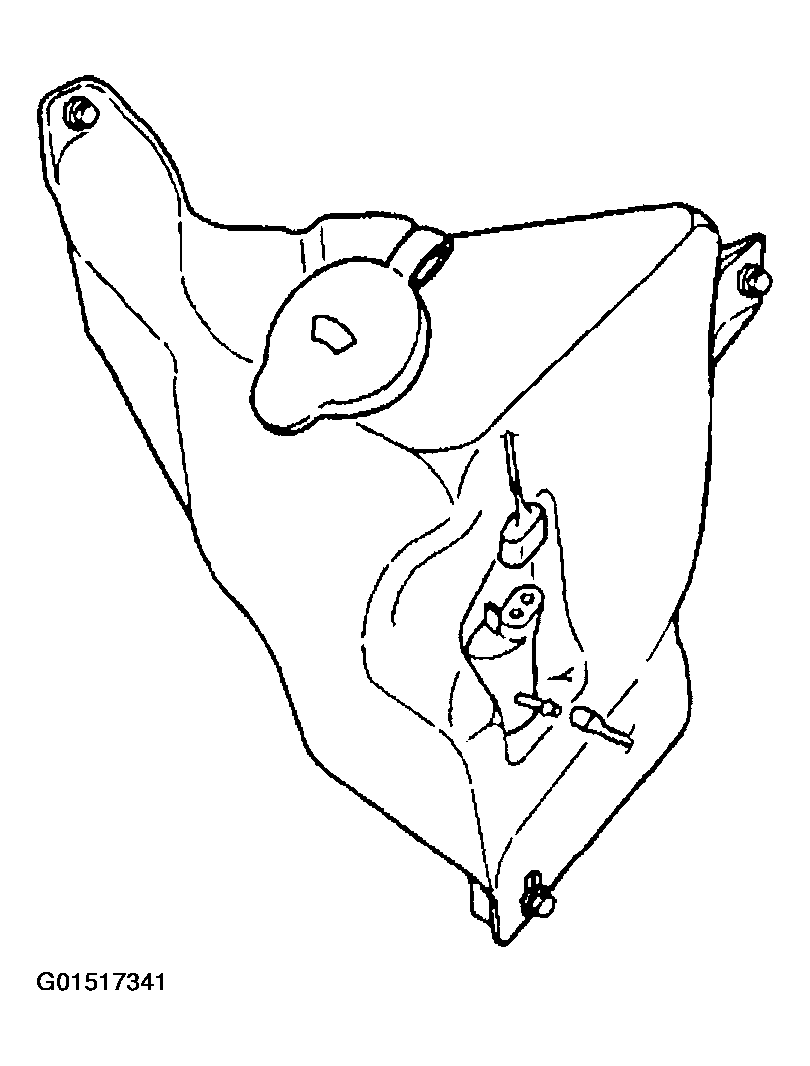

    Fig 2: Connecting Front Washer Pump Electrical Connector And Front Washer Hose
    G01517341Courtesy of GENERAL MOTORS CORP.
