Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the right side engine compartment.
  2. Install the washer solvent container screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

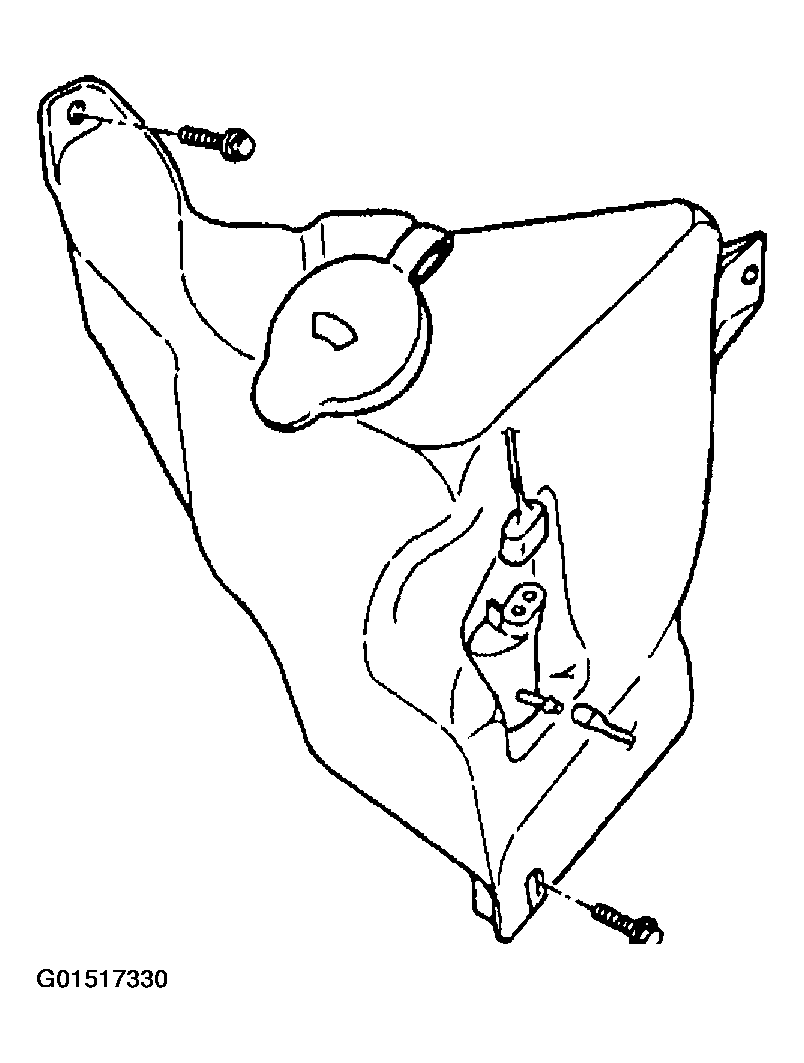

    Fig 1: Installing Washer Solvent Container Screws
    G01517330Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent container level sensor electrical connector.

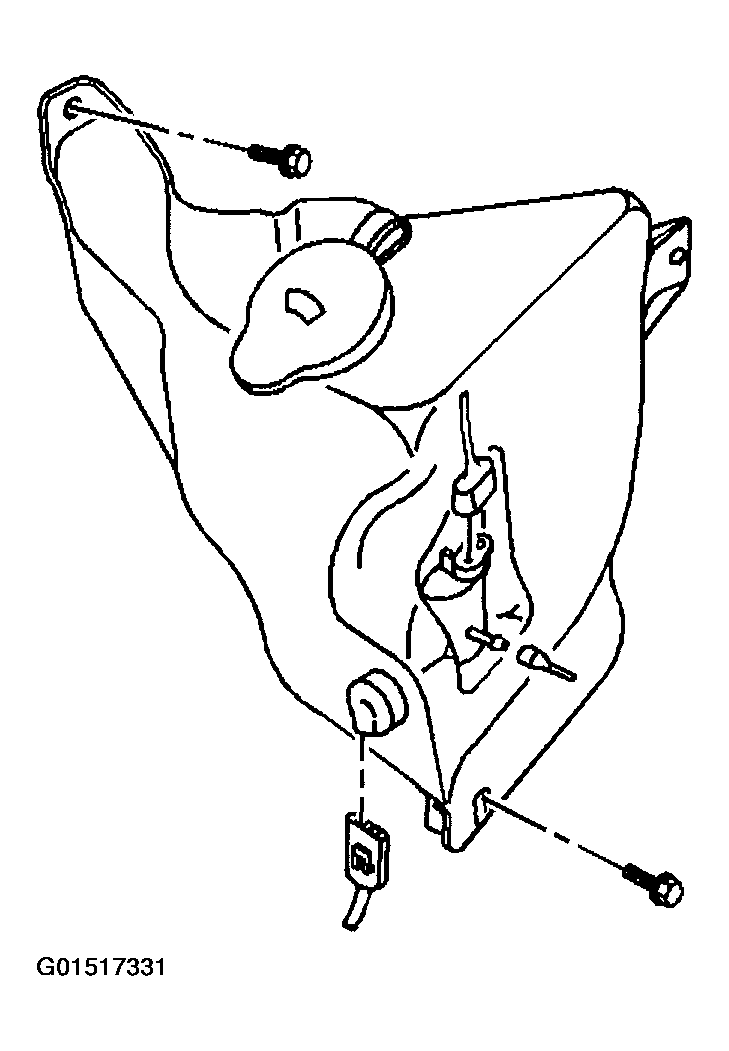

    Fig 2: Connecting Washer Solvent Container Level Sensor Electrical Connector
    G01517331Courtesy of GENERAL MOTORS CORP.
  4. Connect the rear washer pump electrical connector if equipped.
  5. Connect the washer hose to the rear washer pump if equipped.

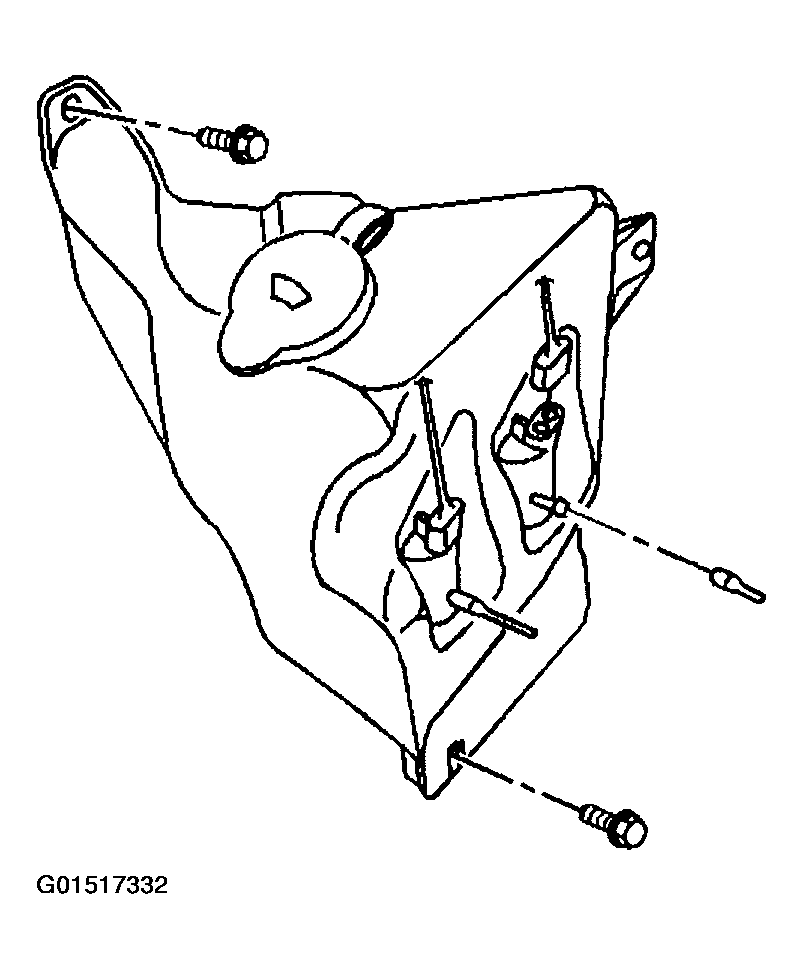

    Fig 3: Connecting Rear Washer Pump Electrical Connector And Washer Hose
    G01517332Courtesy of GENERAL MOTORS CORP.
  6. Connect the front washer pump electrical connector.
  7. Connect the front washer hose to the front washer pump.
  8. Fill the washer solvent container with washer solvent.
  9. Install the battery.

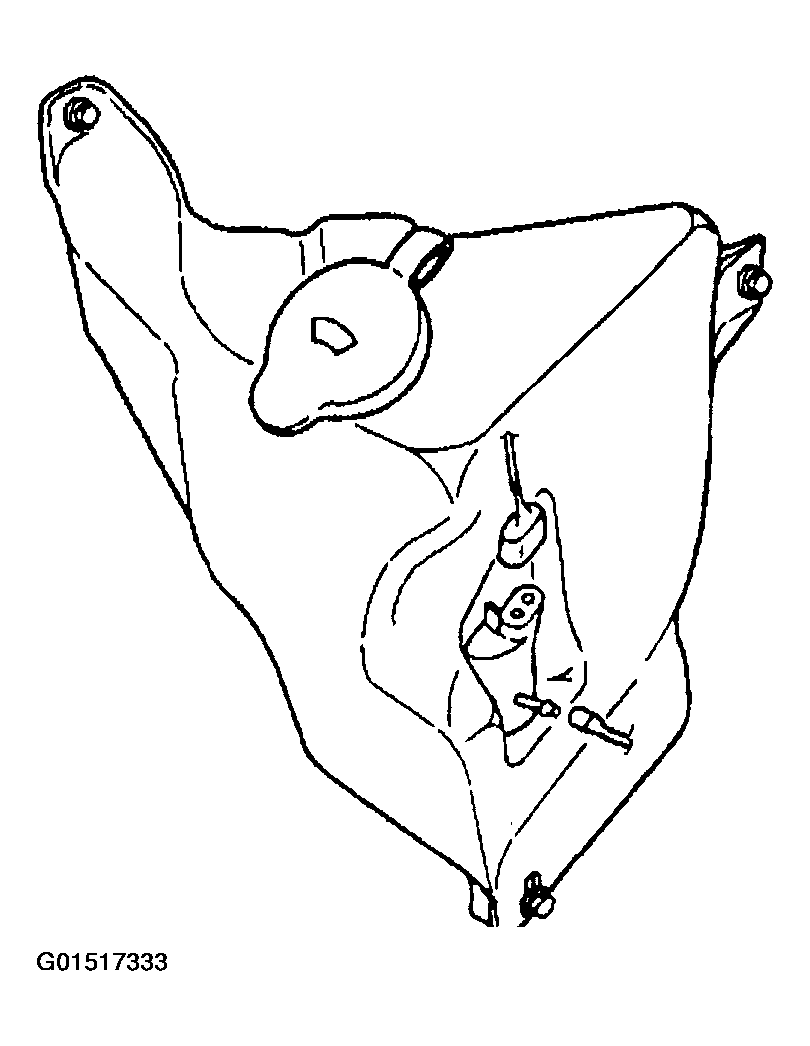

    Fig 4: Connecting Front Washer Pump Electrical Connector And Front Washer Hose
    G01517333Courtesy of GENERAL MOTORS CORP.
