Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
Remove the HVAC control assembly retaining screws.
Depress the HVAC control assembly retaining tabs and remove the HVAC control assembly from the instrument panel.

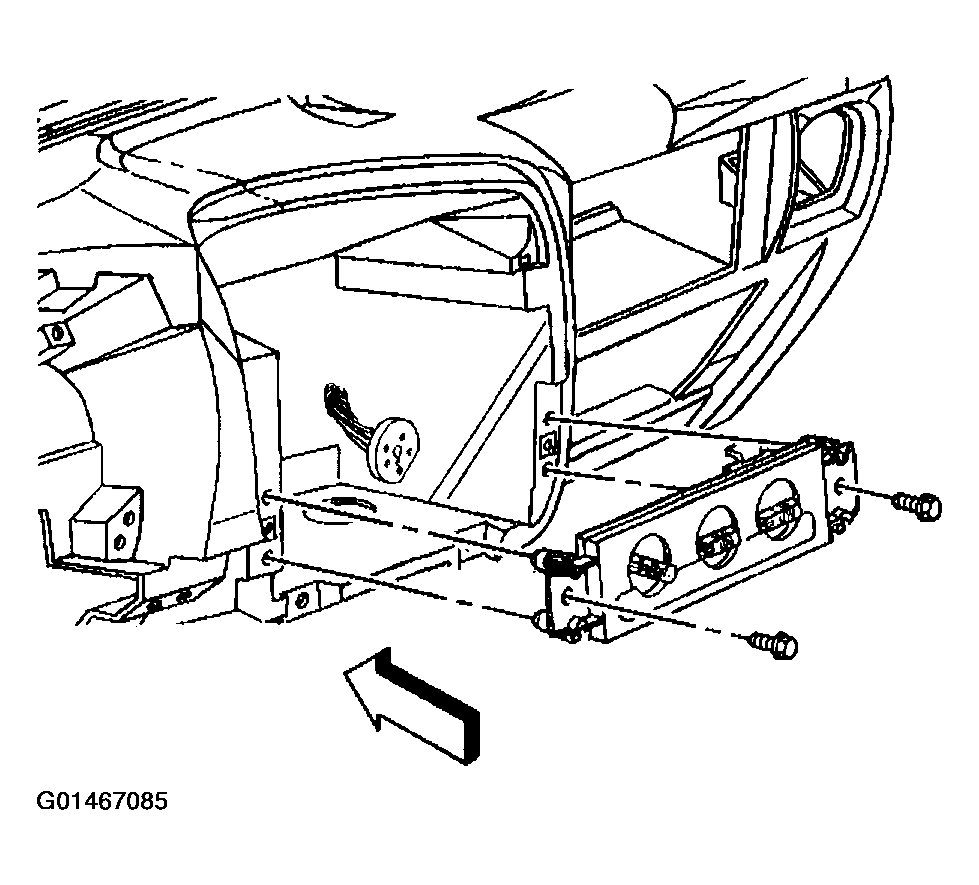

Fig 1: HVAC Control Assembly Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Disconnect the vacuum harness connector from the HVAC control assembly.

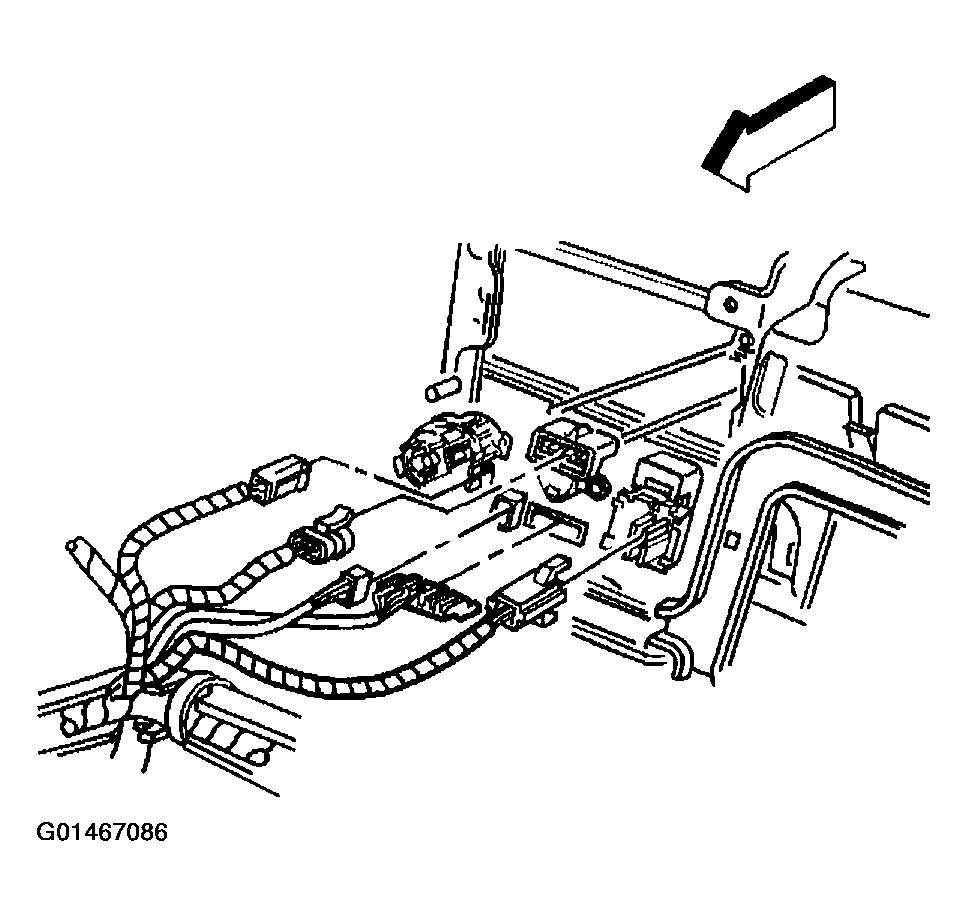

Fig 2: Disconnecting Vacuum Harness Connector From HVAC Control Assembly
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the HVAC control assembly.
