Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Align the marks made during disassembly in order to install the liftgate window latch support.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts that retain the liftgate window latch support to the liftgate.
Tighten

Tighten the bolts to 9 N.m (80 lb in).
Connect the electrical connectors as needed.
Install the liftgate window latch. Refer to LATCH REPLACEMENT - LIFT GATE WINDOW .

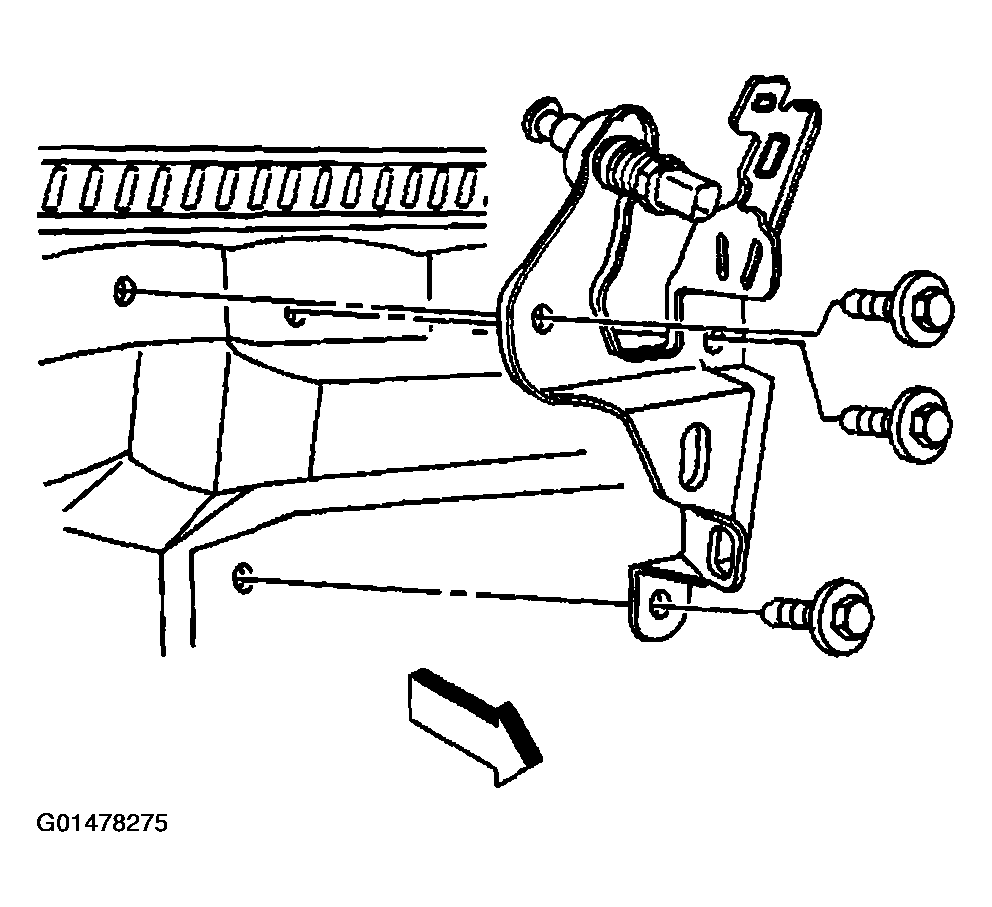

Fig 1: Installing Liftgate Window Latch Support To Liftgate
Courtesy of GENERAL MOTORS CORP.
