Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, align the hinges to the marks made at disassembly in order to install the endgate window to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the endgate window hinges to the vehicle.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Install the endgate window struts. Refer to STRUT REPLACEMENT - END GATE .
  4. Connect the rear window defogger connectors, if equipped.
  5. Install the high mount stoplamp (endgate window-mounted only). Refer to HIGH MOUNTED STOP LAMP REPLACEMENT (UTILITY - ENDGATE WINDOW) or HIGH MOUNTED STOP LAMP REPLACEMENT (UTILITY - ROOF MOUNTED) or HIGH MOUNTED STOP LAMP REPLACEMENT (PICKUP) in Lighting Systems.

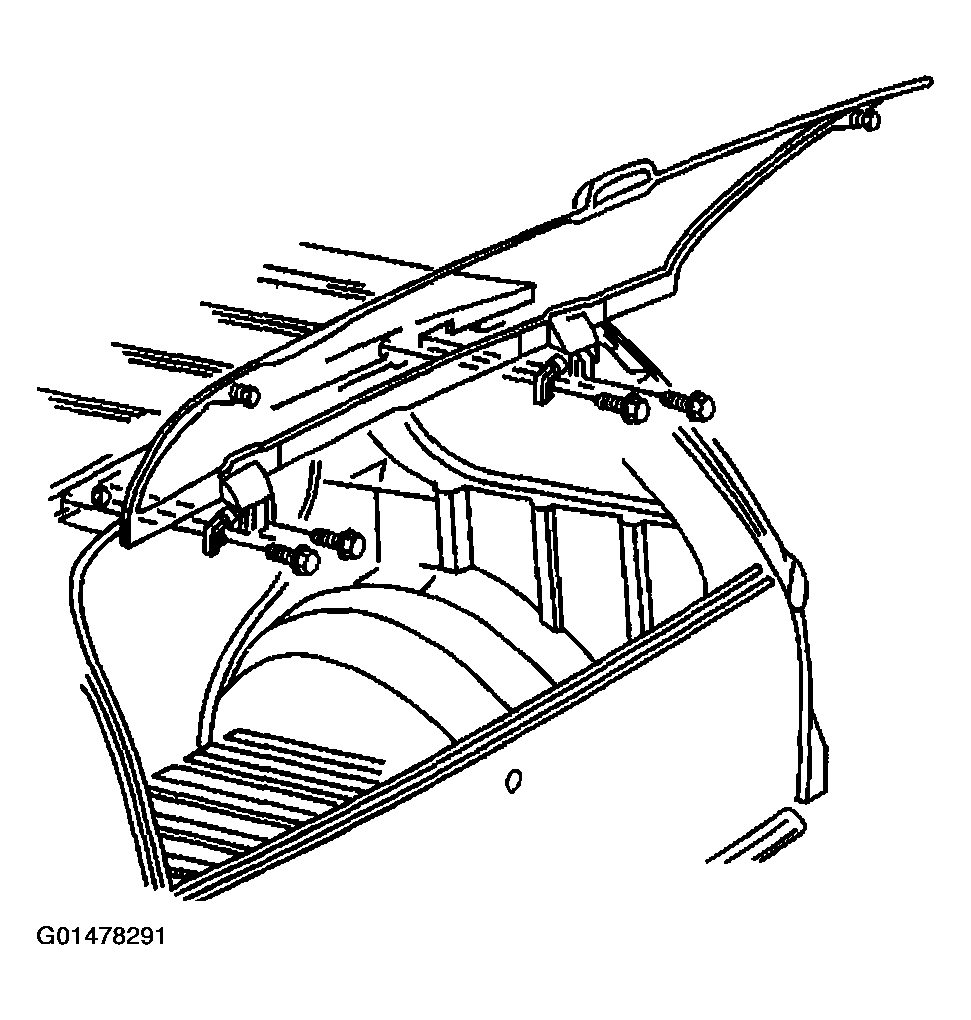

    Fig 1: Endgate Window Struts
    G01478291Courtesy of GENERAL MOTORS CORP.
