Garage Door Opener Connector End View
Garage Door Opener Connector End View

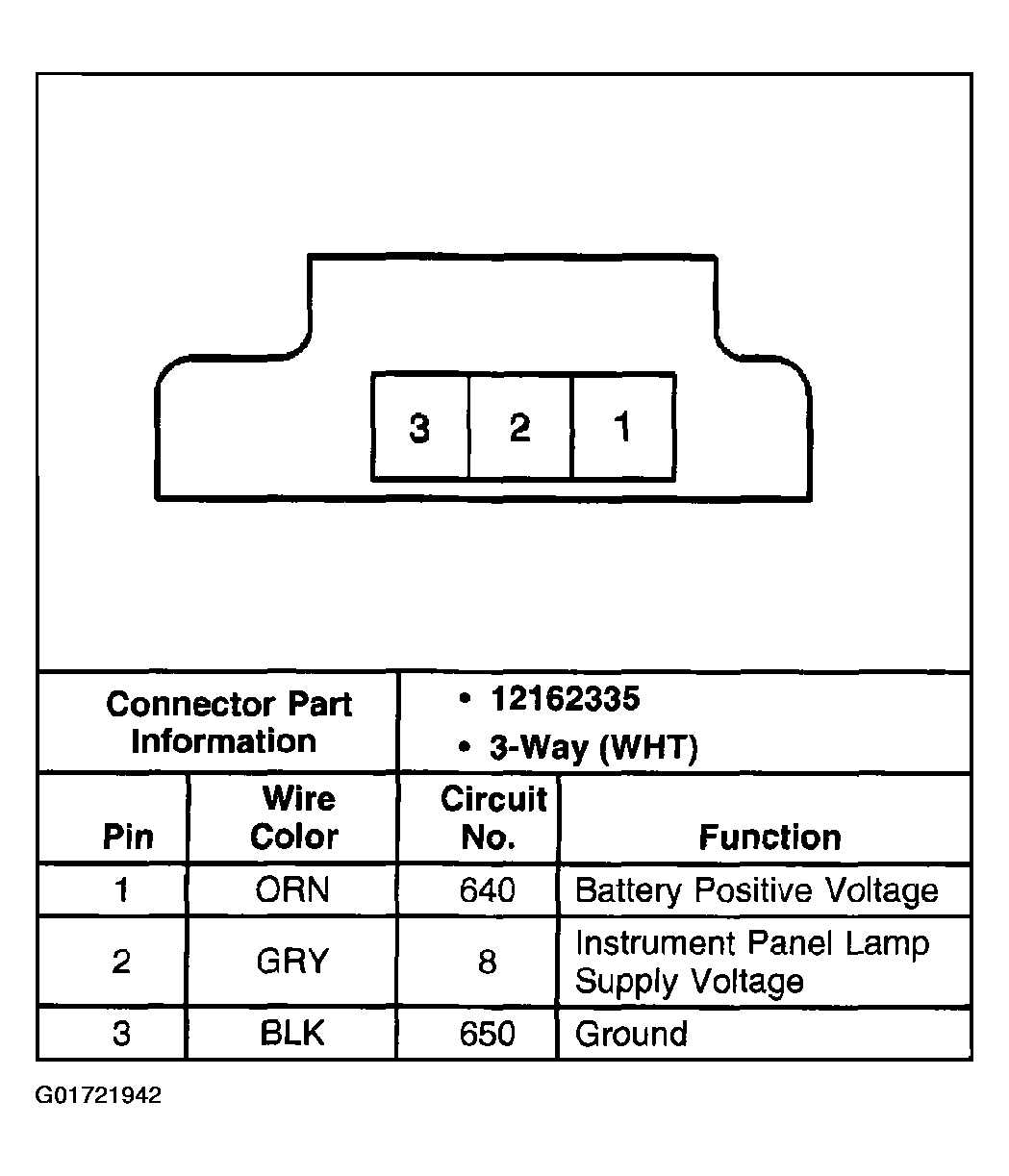

Fig 1: Garage Door Opener Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
