Head Up Display (HUD) Switch Connector End View
Head Up Display (HUD) Switch Connector End View

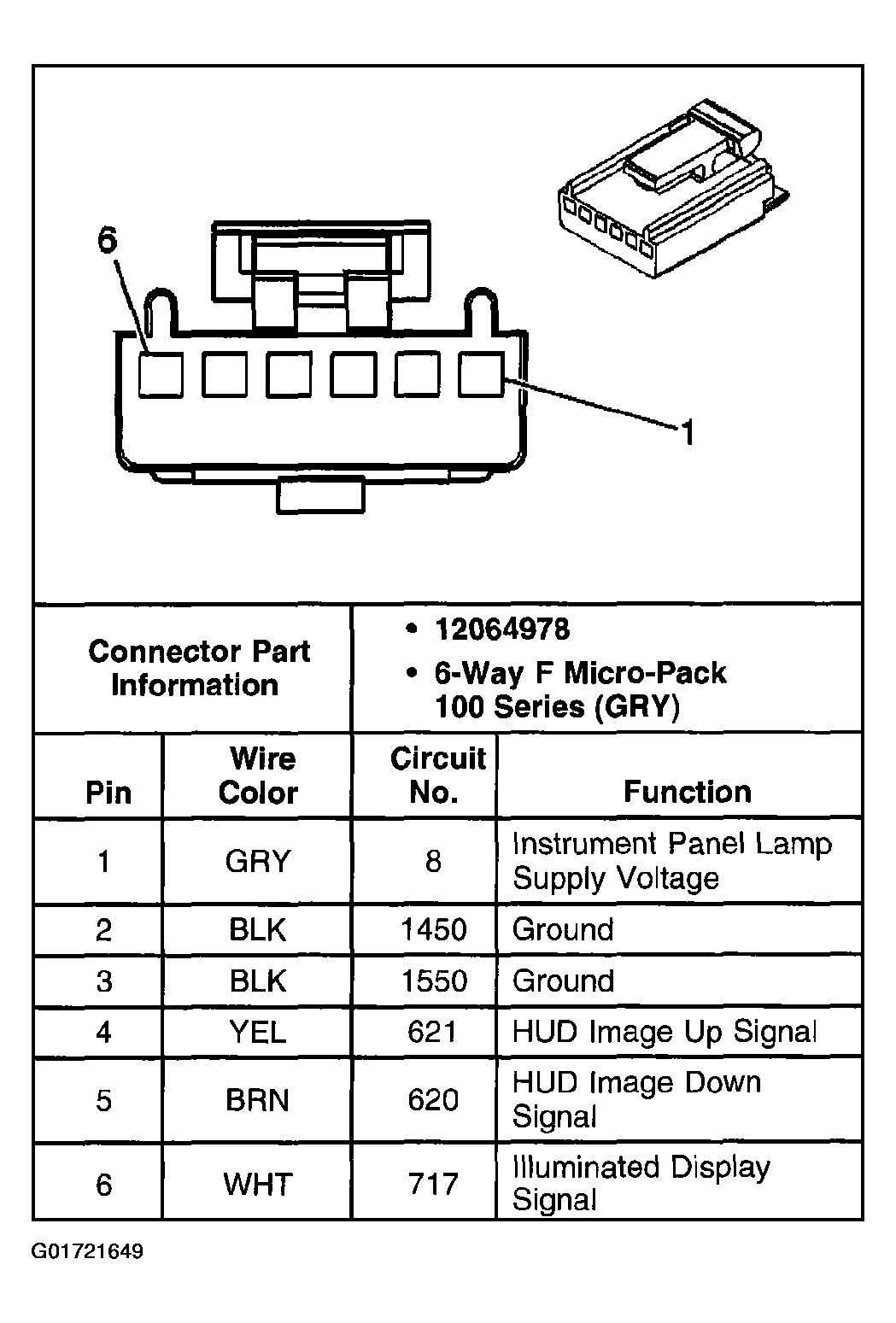

Fig 1: Head Up Display (HUD) Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
