Turn Signal/Multifunction Switch - C2 Connector End View
Turn Signal/Multifunction Switch - C2 Connector End View

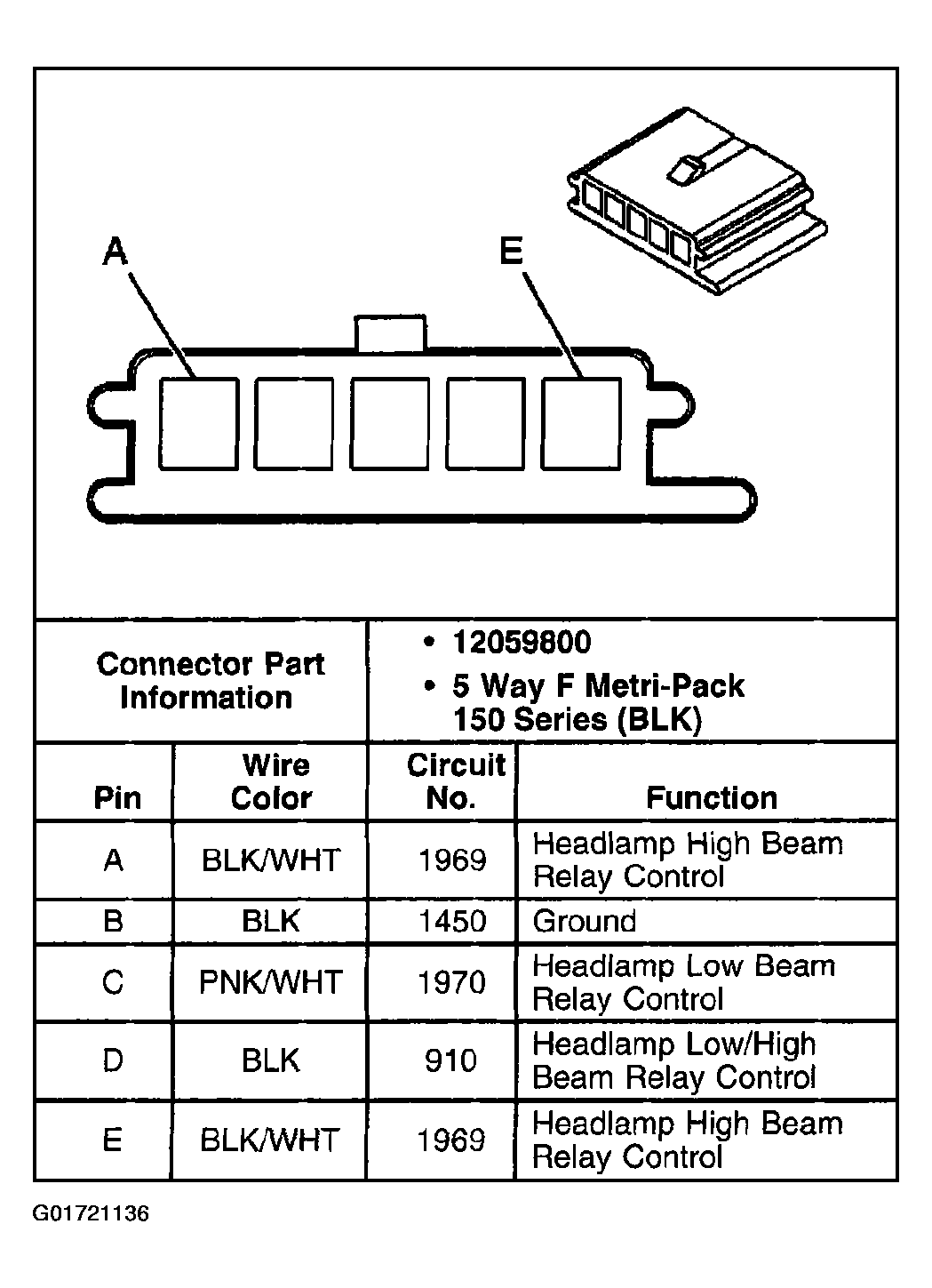

Fig 1: Turn Signal/Multifunction Switch - C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
