Installation Procedure

Install the seat belt buckle to the right front seat.

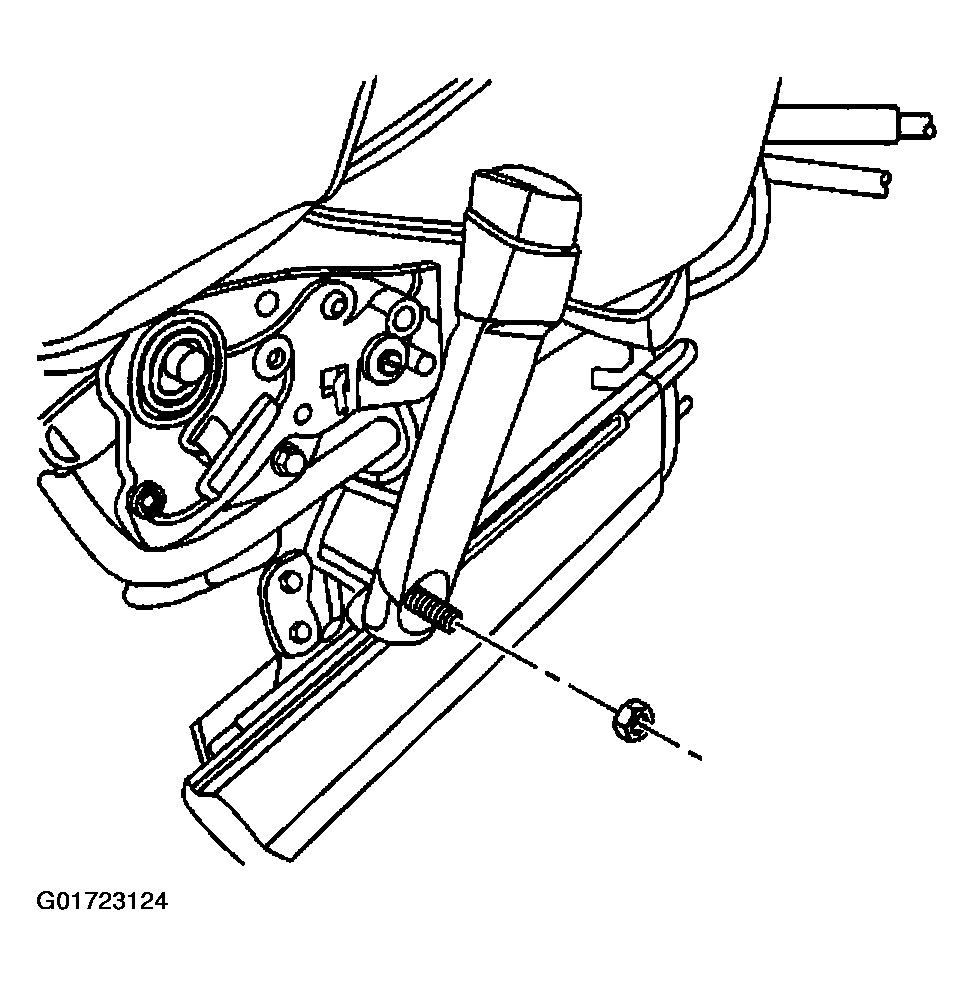

Fig 1: Installing Right Front Seat Belt Buckle
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the nut to the seat belt anchor stud.
Tighten

Tighten the seat belt buckle anchor nut to 42 N.m (31 lb ft).
Install the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT - FRONT .
Install the right front seat. Refer to SEAT REPLACEMENT - BUCKET .

Fig 2: Installing Seat Belt Anchor Stud Nut
Courtesy of GENERAL MOTORS CORP.
