Disabling System (Saturn, L Series)

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Turn front wheels to straight-ahead position. Turn ignition off and remove key. Remove IGN1 mini-fuse from underhood fuse block. Remove lower left instrument panel closeout panel.
  2. Push out clips that secure Yellow 2-pin air bag connectors to instrument panel brace. See Figure. Remove Connector Position Assurance (CPA) clips. Disconnect both Yellow 2-pin connectors.
  3. If vehicle is equipped with curtain (head) air bags, remove right rear seat shoulder belt cover. See Figure. Remove fastener and shoulder belt. Fold down rear seat back.

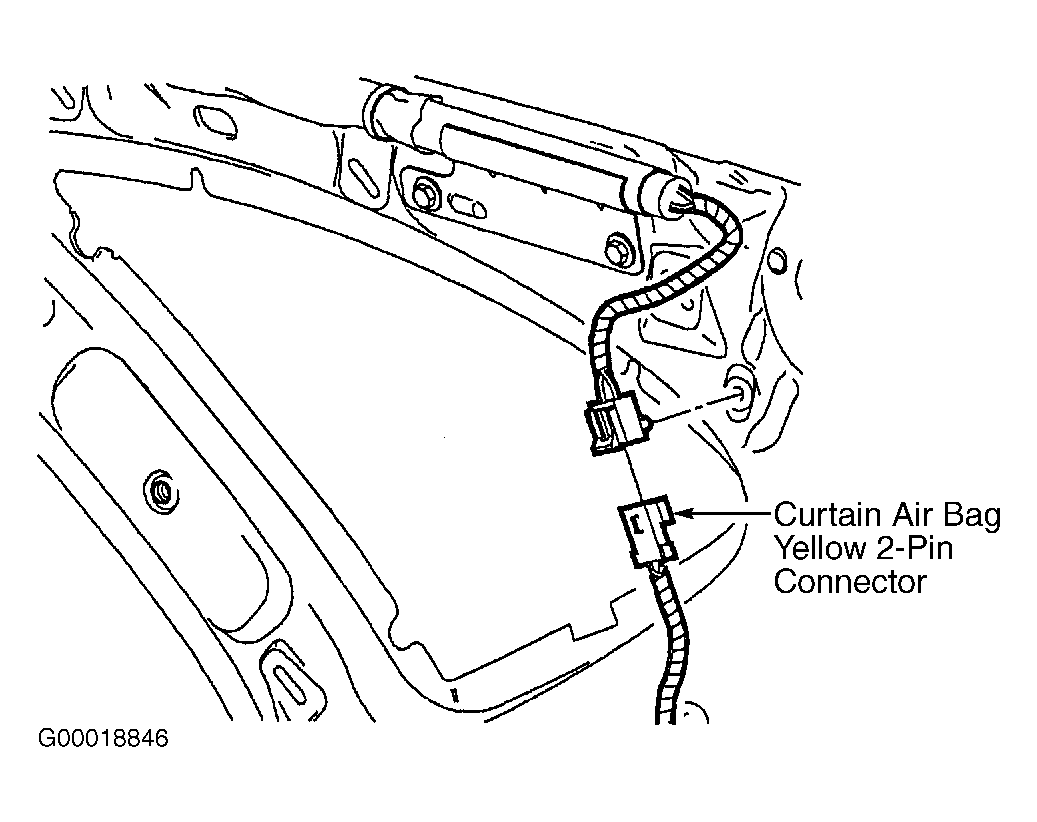

  4. Route right rear shoulder belt out of "C" pillar access slot. Remove right rear "C" pillar trim panel by pulling gently at "C" pillar clip locations. Remove right rear "C" pillar trim panel. Repeat procedure on left rear "C" pillar trim panel. Remove Connector Position Assurance (CPA) clips. Disconnect left and right side curtain air bag Yellow 2-pin connectors. See Figure.
