Installation Procedure

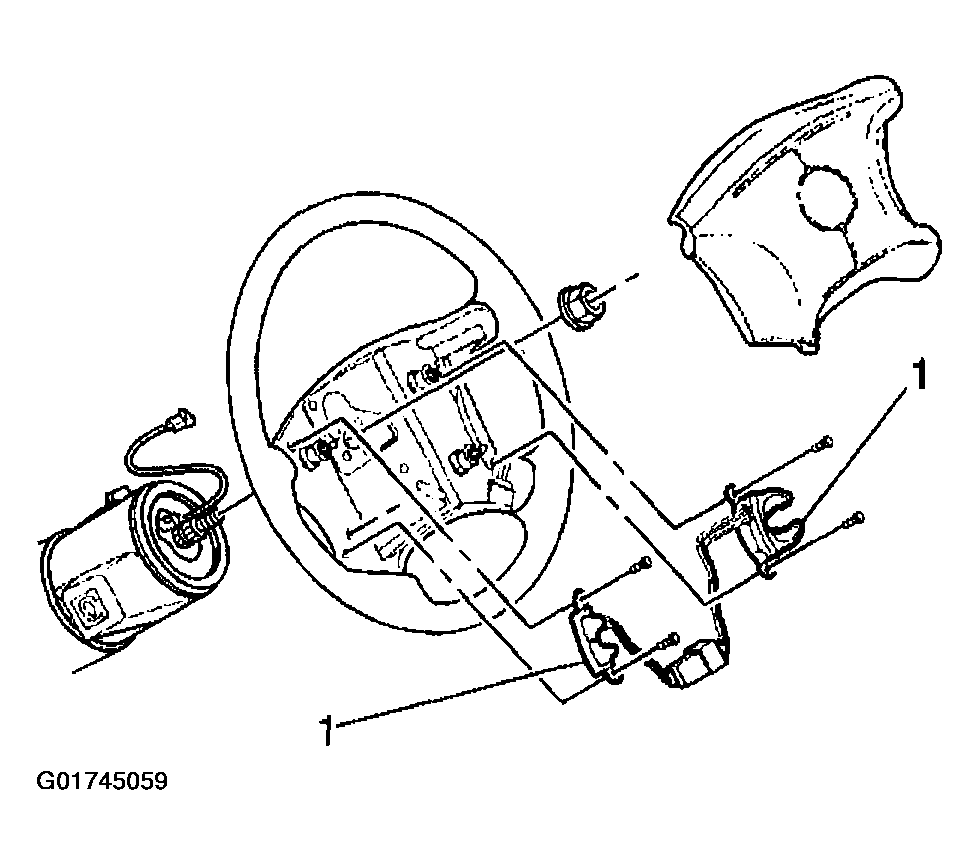

Fig 1: Pressing Control Switches Into Steering Wheel
G01745059Courtesy of GENERAL MOTORS CORP.
  1. Connect the wiring harnesses to the switches.
  2. Press the control switches (1), into the steering wheel.
  3. Install the rear trim cover to the steering wheel.
  4. Install the steering wheel to the steering column. Refer to Steering Wheel Replacement .
