Automatic Level Control Inflator Fill Valve Inoperative

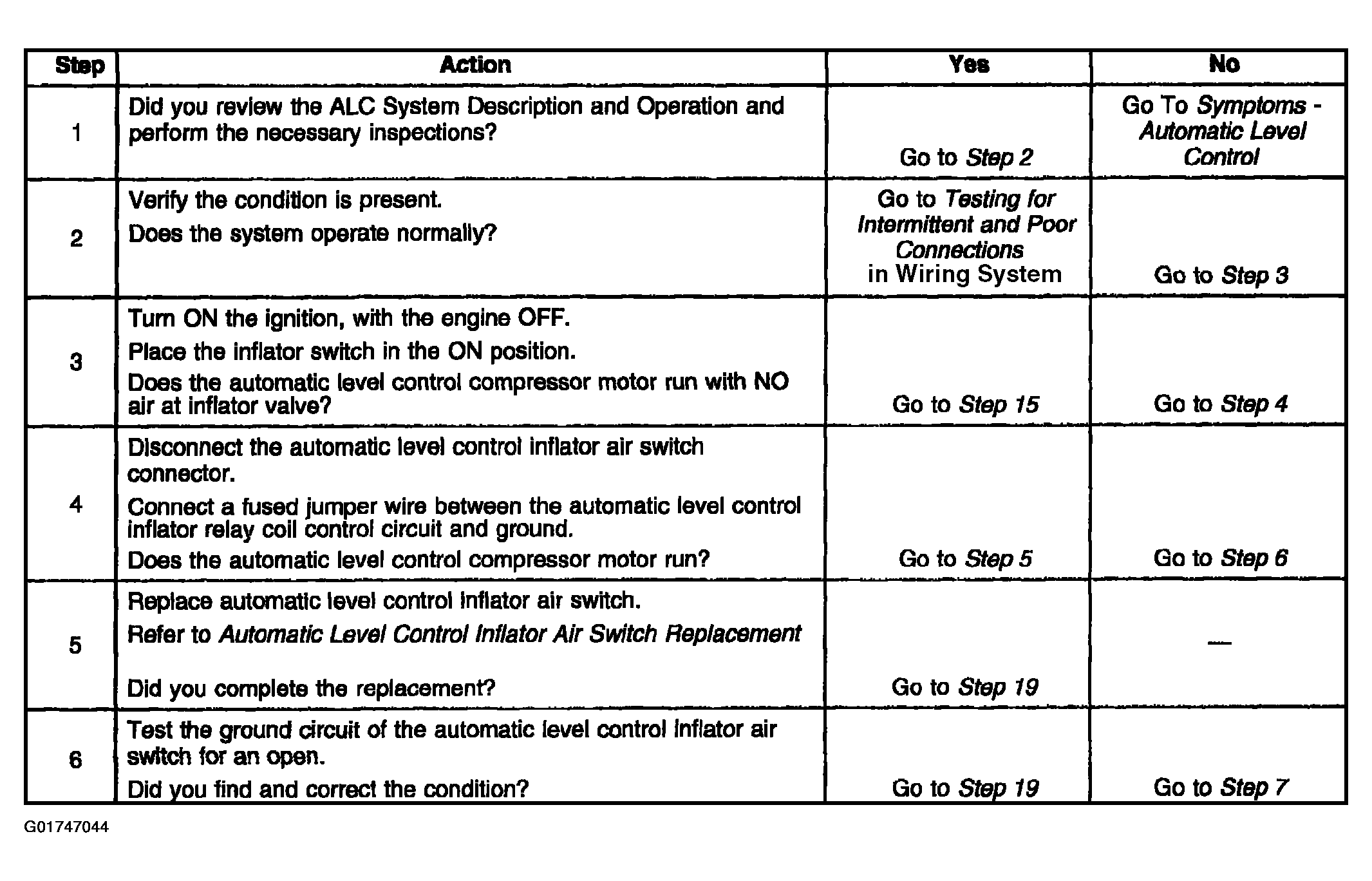

Fig 1: Automatic Level Control Inflator Fill Valve Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

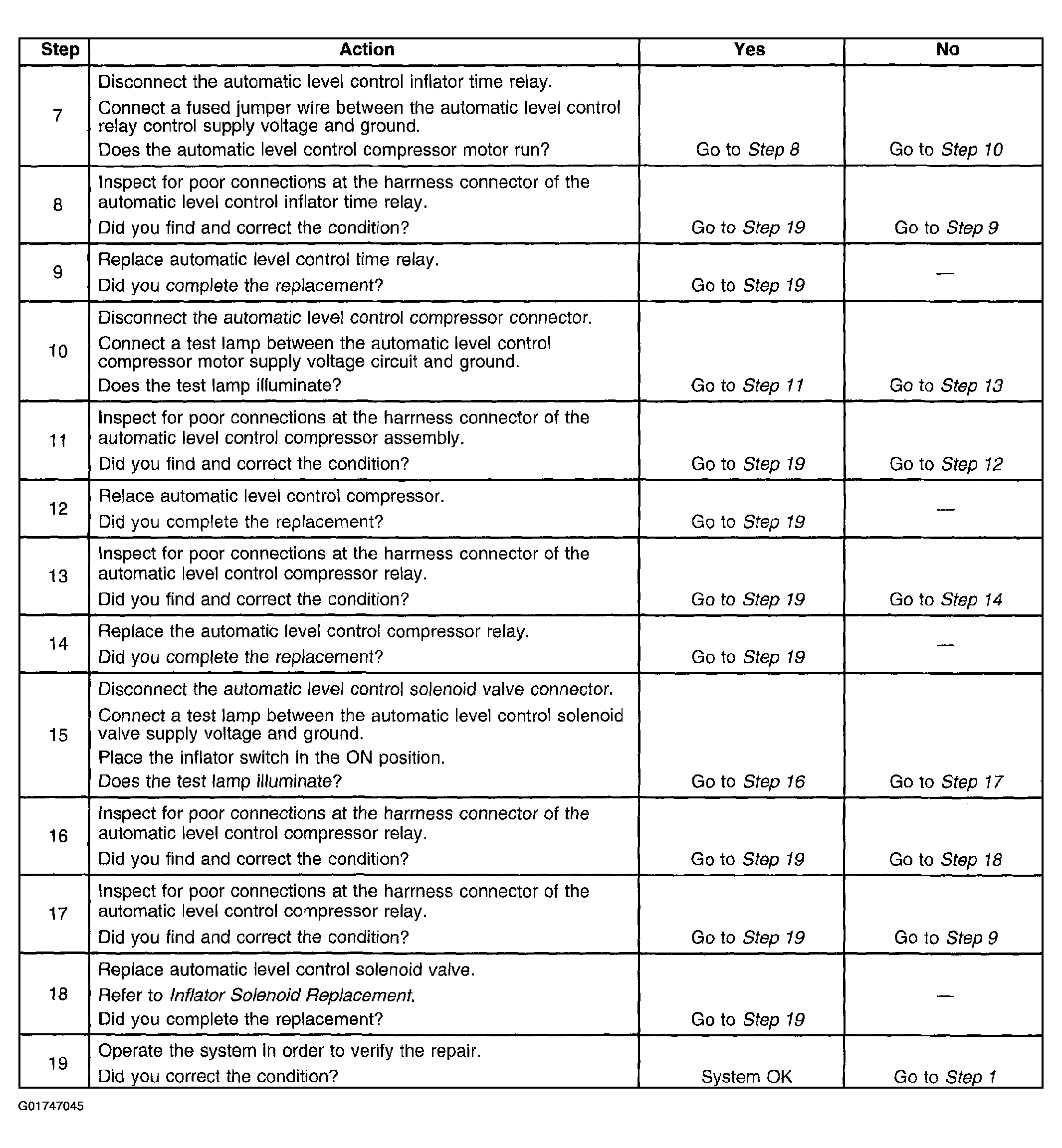

Fig 2: Automatic Level Control Inflator Fill Valve Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
