Removal Procedure

  1. Remove the inflator fill valve access cover.
  2. Remove the lower rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  3. Disconnect the inflator solenoid electrical connector.
  4. Disconnect the air tubes from the inflator solenoid.

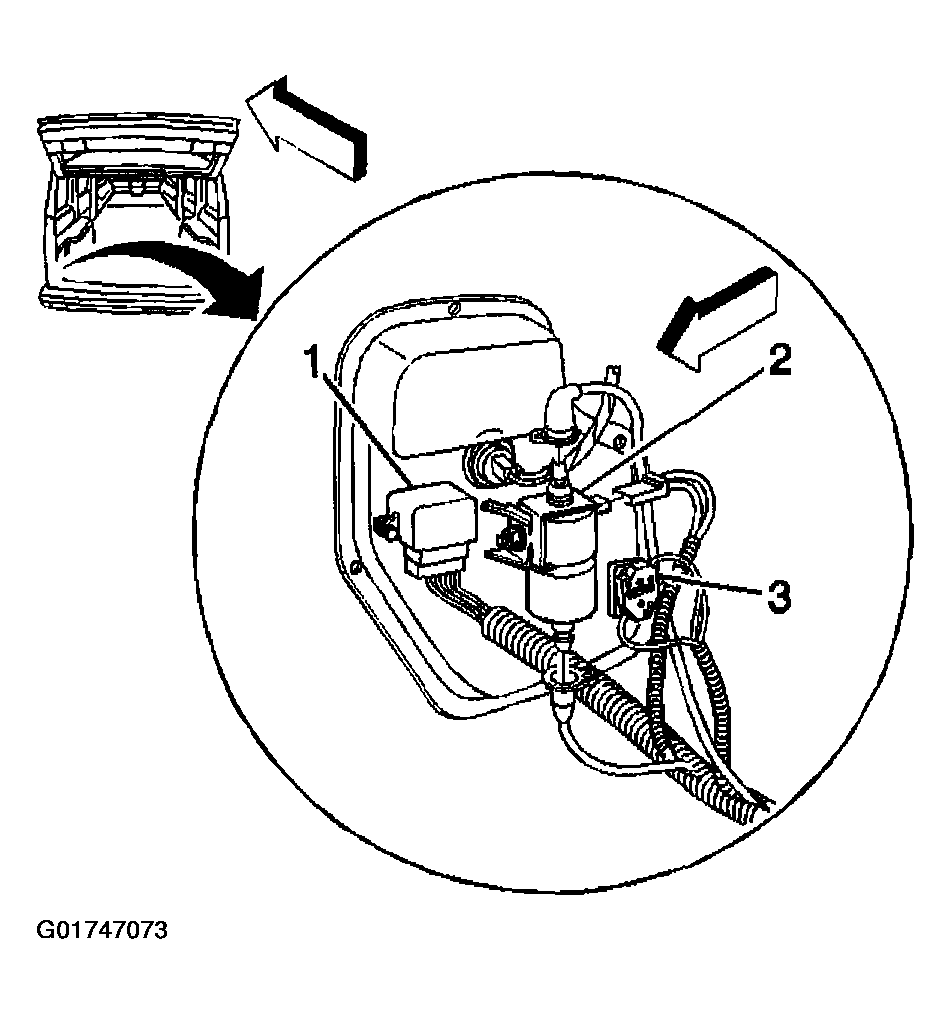

    Fig 1: Disconnecting Inflator Solenoid Electrical Connector & Air Tubes
    G01747073Courtesy of GENERAL MOTORS CORP.
  5. Remove the inflator solenoid fill valve cap.
  6. Remove the inflator solenoid fill valve nut and washer.
  7. Remove the inflator solenoid nut.
  8. Remove the inflator solenoid.

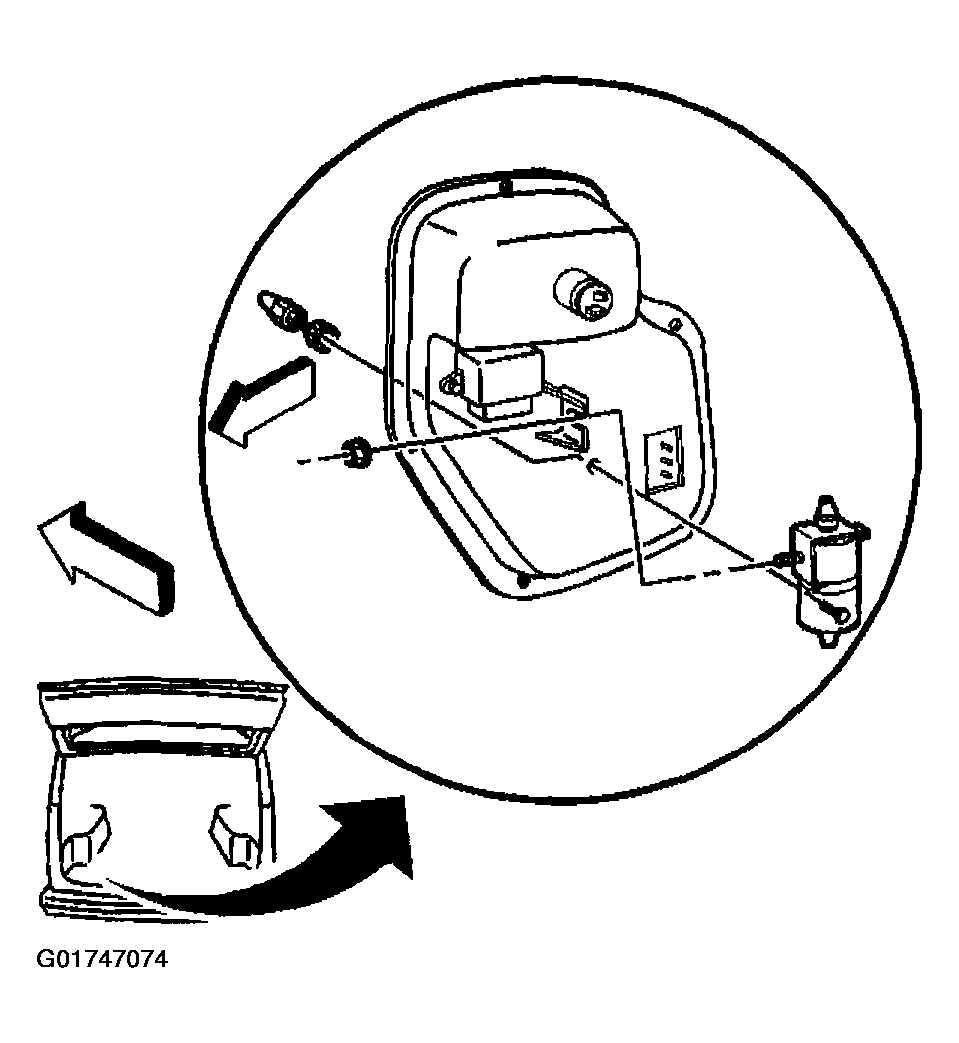

    Fig 2: Removing Inflator Solenoid, Nut, Cap & Washer
    G01747074Courtesy of GENERAL MOTORS CORP.
