Automatic Level Control Suspension Schematics

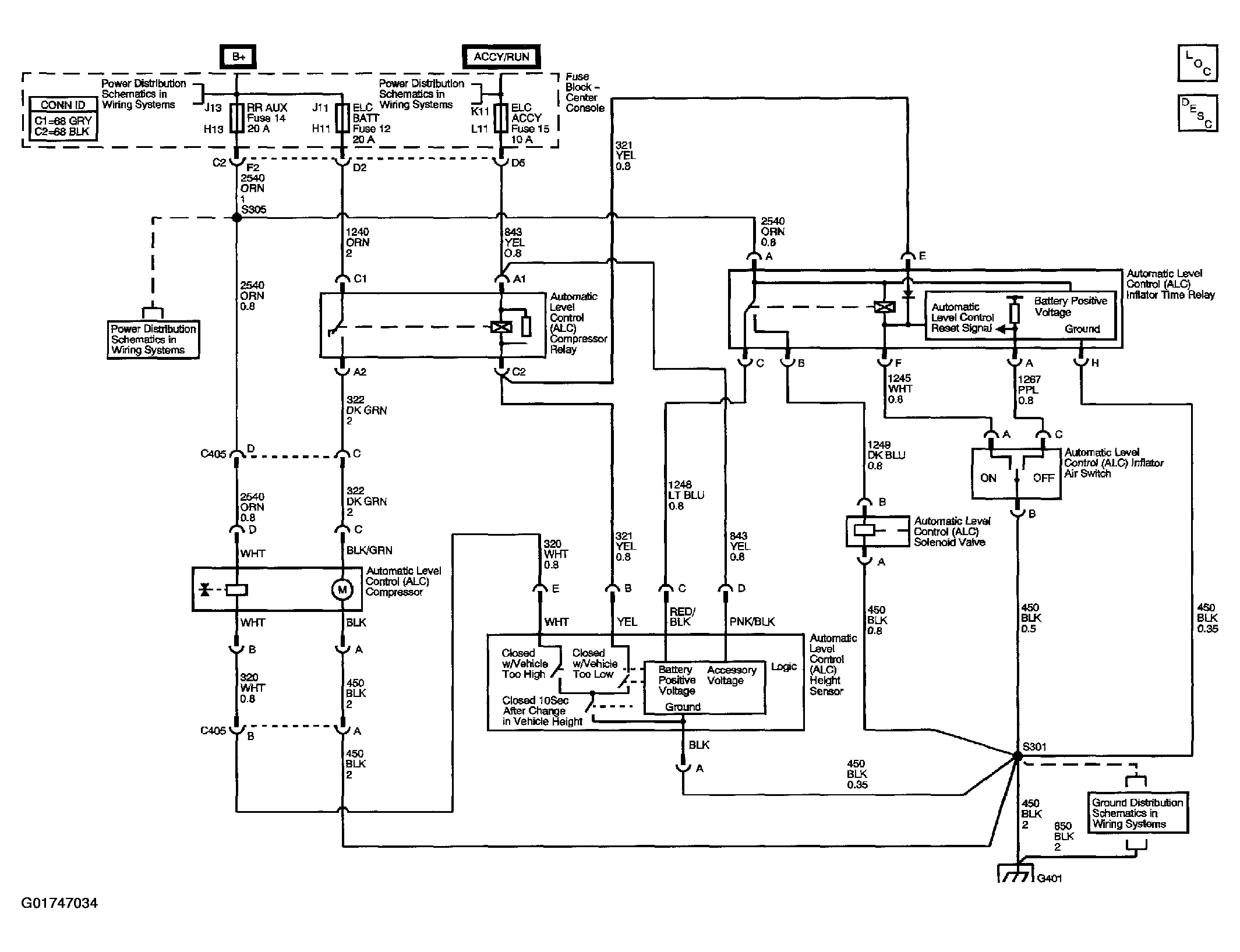

Fig 1: Automatic Level Control Suspension Schematics
G01747034Courtesy of GENERAL MOTORS CORP.
