Installation Procedure

  1. Use a pry bar in order to install the stabilizer shaft insulator.

    Ensure that the stabilizer shaft insulator locating tabs (3) align with the indentations in the frame (2).

  2. Ensure that the stabilizer shaft insulator locating tabs (3) align with the indentations in the frame (2).
  3. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  5. Lower the vehicle.

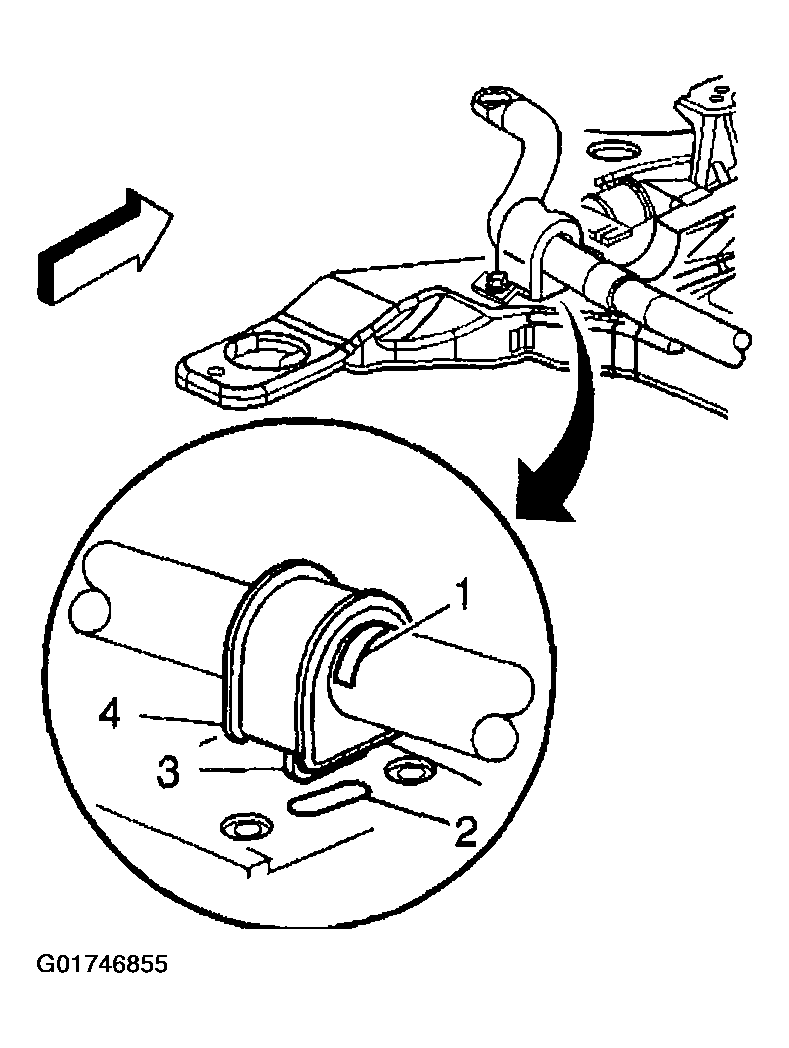

    Fig 1: Installing Stabilizer Shaft Insulators
    G01746855Courtesy of GENERAL MOTORS CORP.
