Stabilizer Shaft Link Replacement
›
Removal Procedure
Removal Procedure
Raise and support the vehicle. Refer to
LIFTING AND JACKING THE VEHICLE
.
Remove the stabilizer shaft link bolt and nut.
Use a pry bar in order remove the stabilizer shaft link insulators and the spacer.

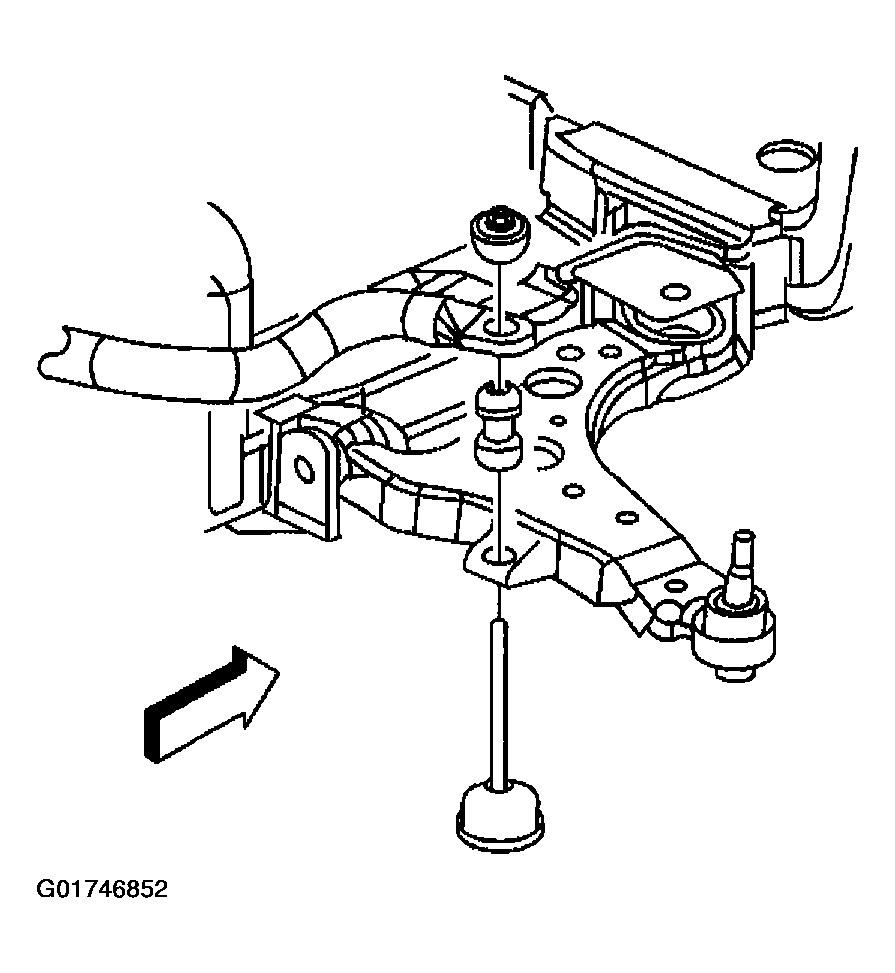

Fig 1: Removing Stabilizer Shaft Link Bolt & Nut
Courtesy of GENERAL MOTORS CORP.
