Wheel Alignment Specifications
›
Specifications
›
Blazer, Jimmy, SONOMA & S10 Pickup
Blazer, Jimmy, SONOMA & S10 Pickup

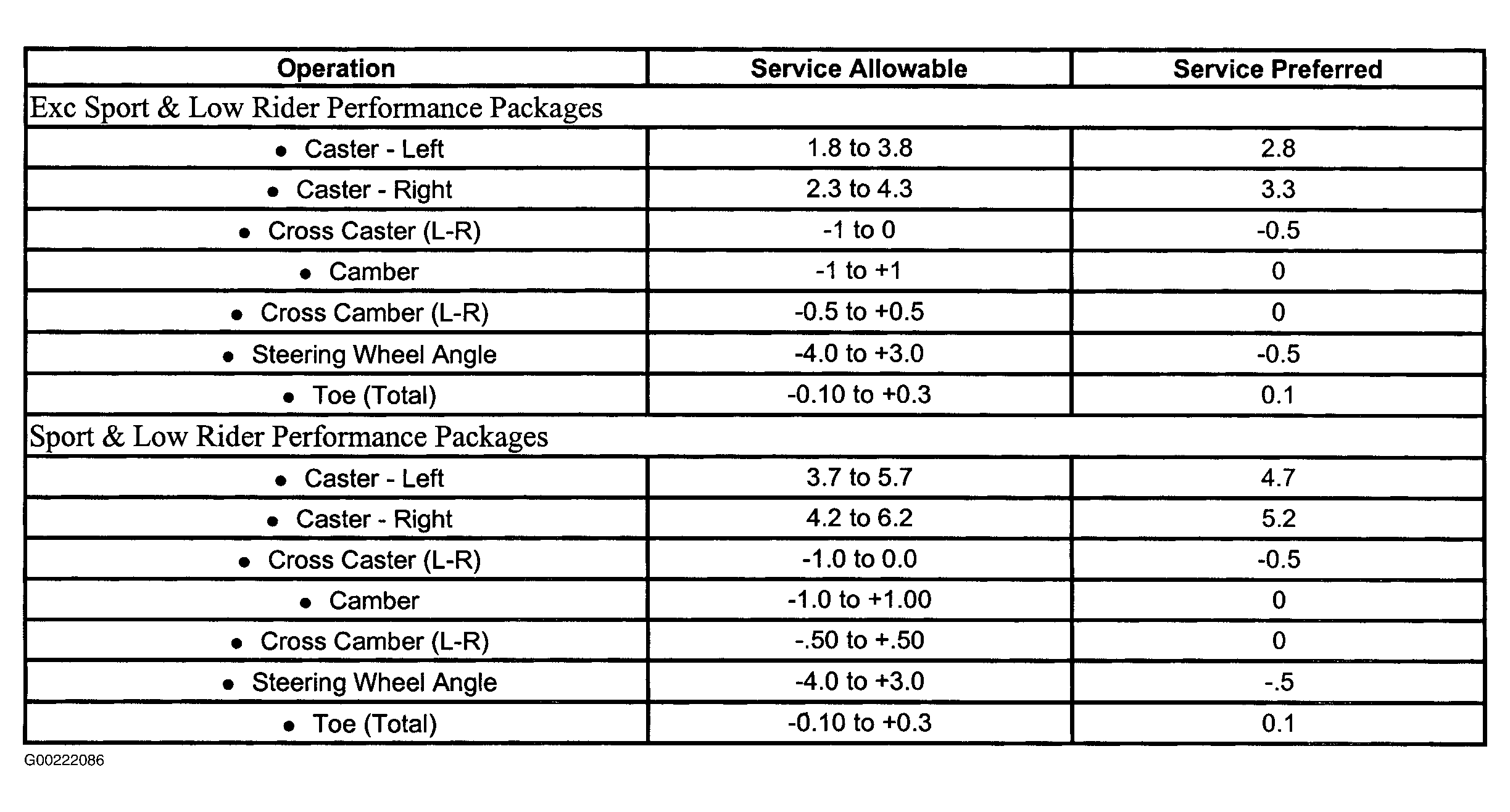

Fig 1: Wheel Alignment Specifications (Blazer, Jimmy, Sonoma & S10 Pickup)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
