Transfer Case Disassembled View

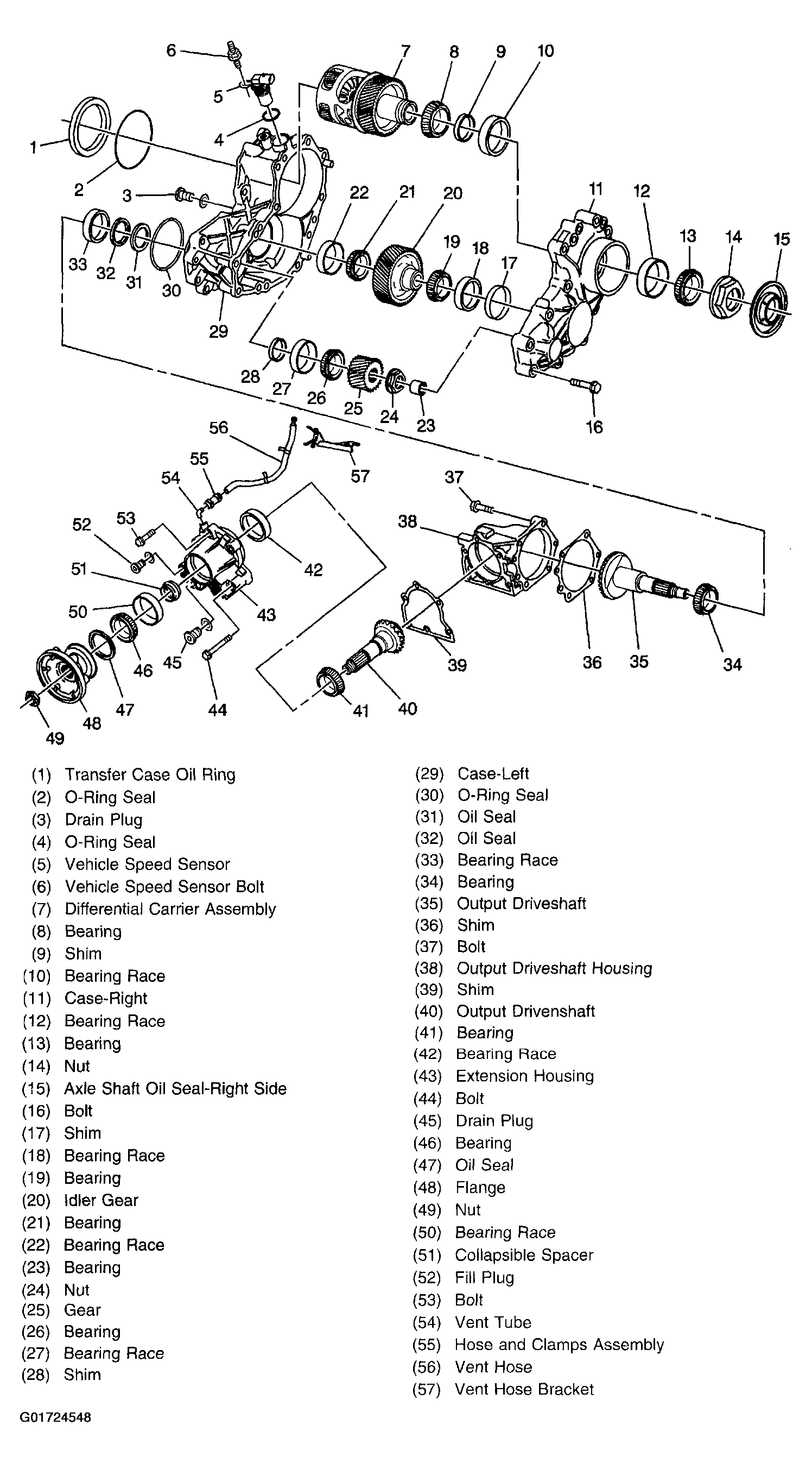

Fig 1: Transfer Case Assembly Disassembled View
G01724548Courtesy of GENERAL MOTORS CORP.

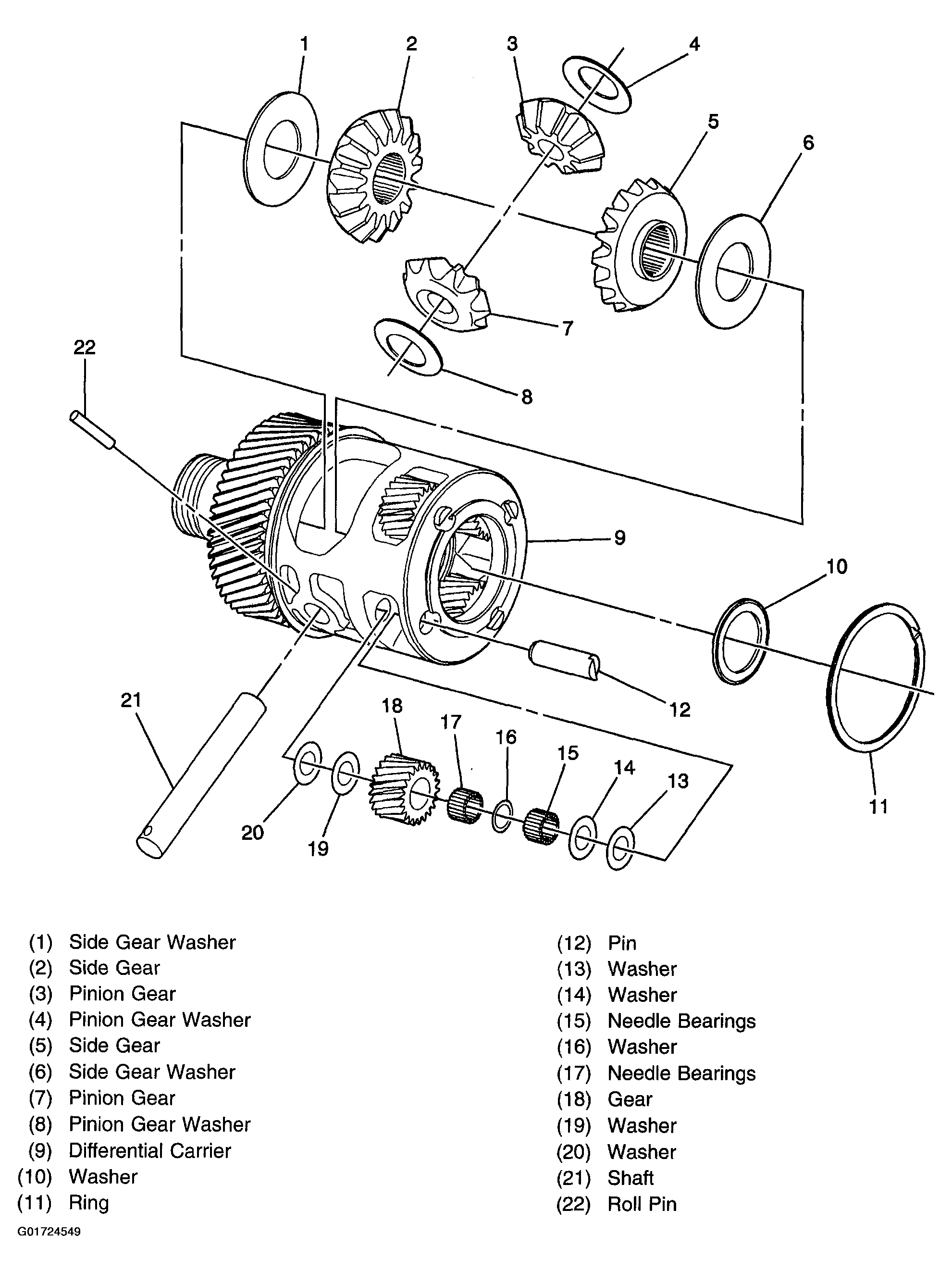

Fig 2: Carrier Assembly Disassembled View
G01724549Courtesy of GENERAL MOTORS CORP.
