Keyless Entry Connector End Views

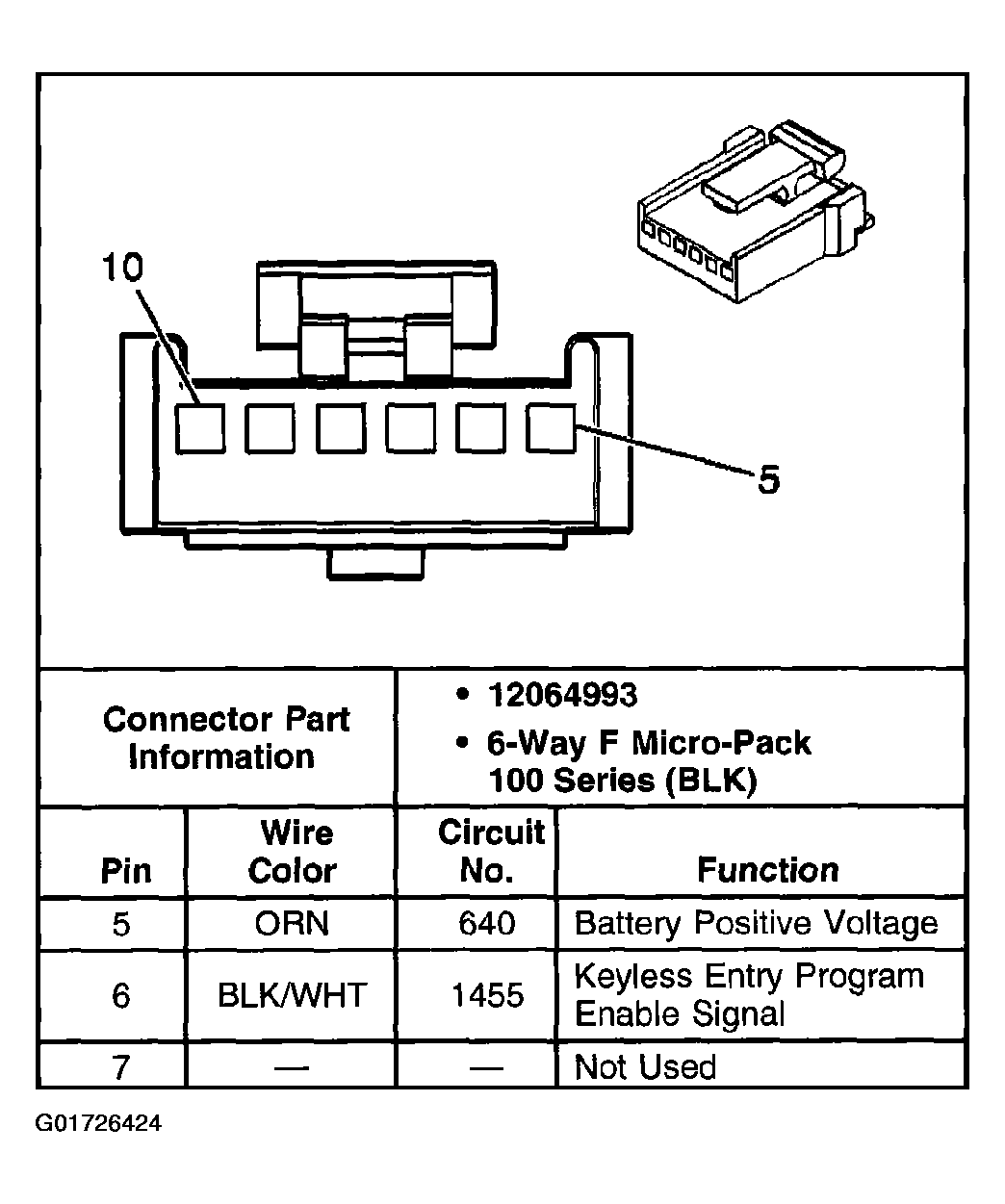

Fig 1: Remote Control Door Lock Receiver (RCDLR) Connector End Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

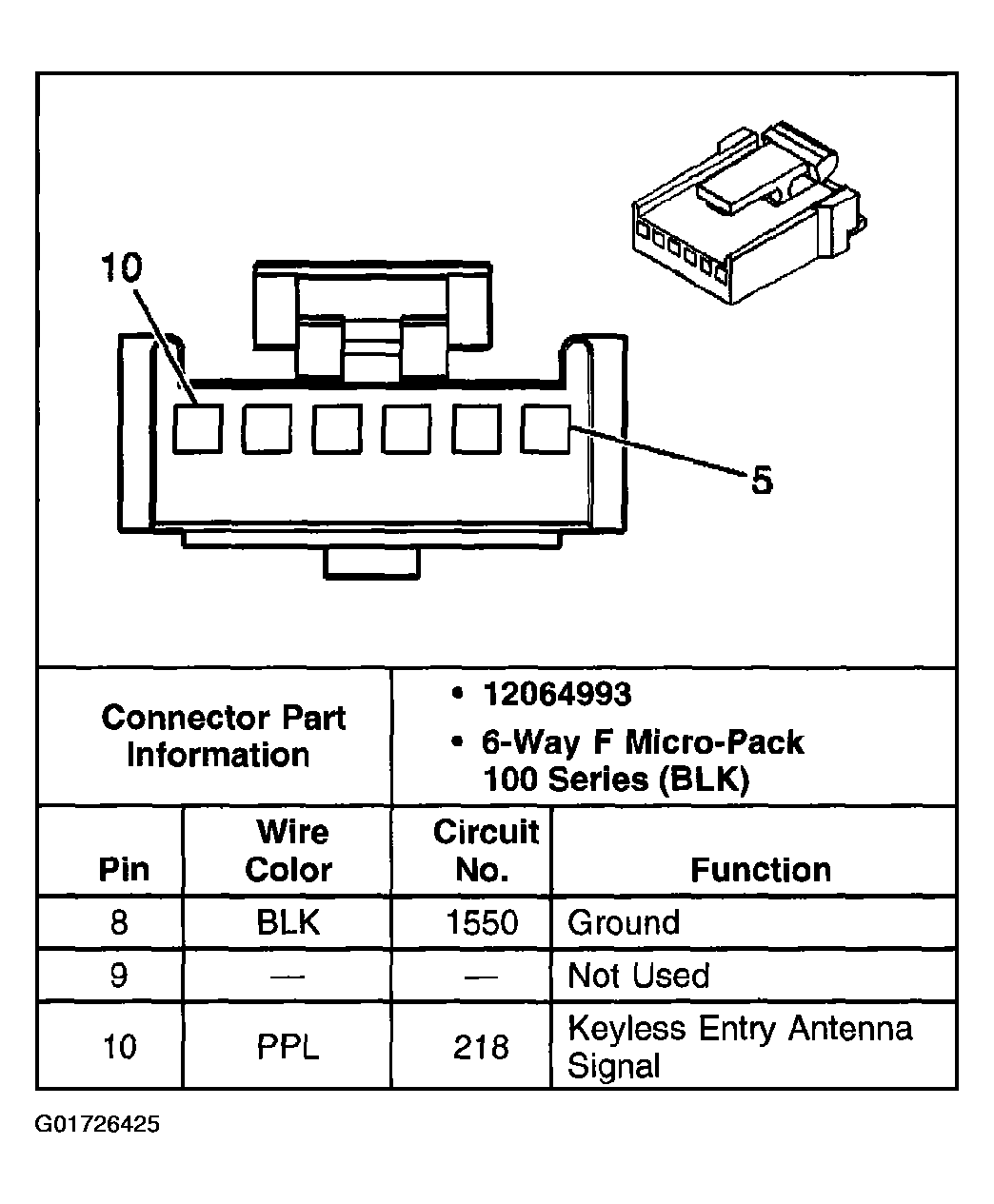

Fig 2: Remote Control Door Lock Receiver (RCDLR) Connector End Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
