Power Door Systems Component Views

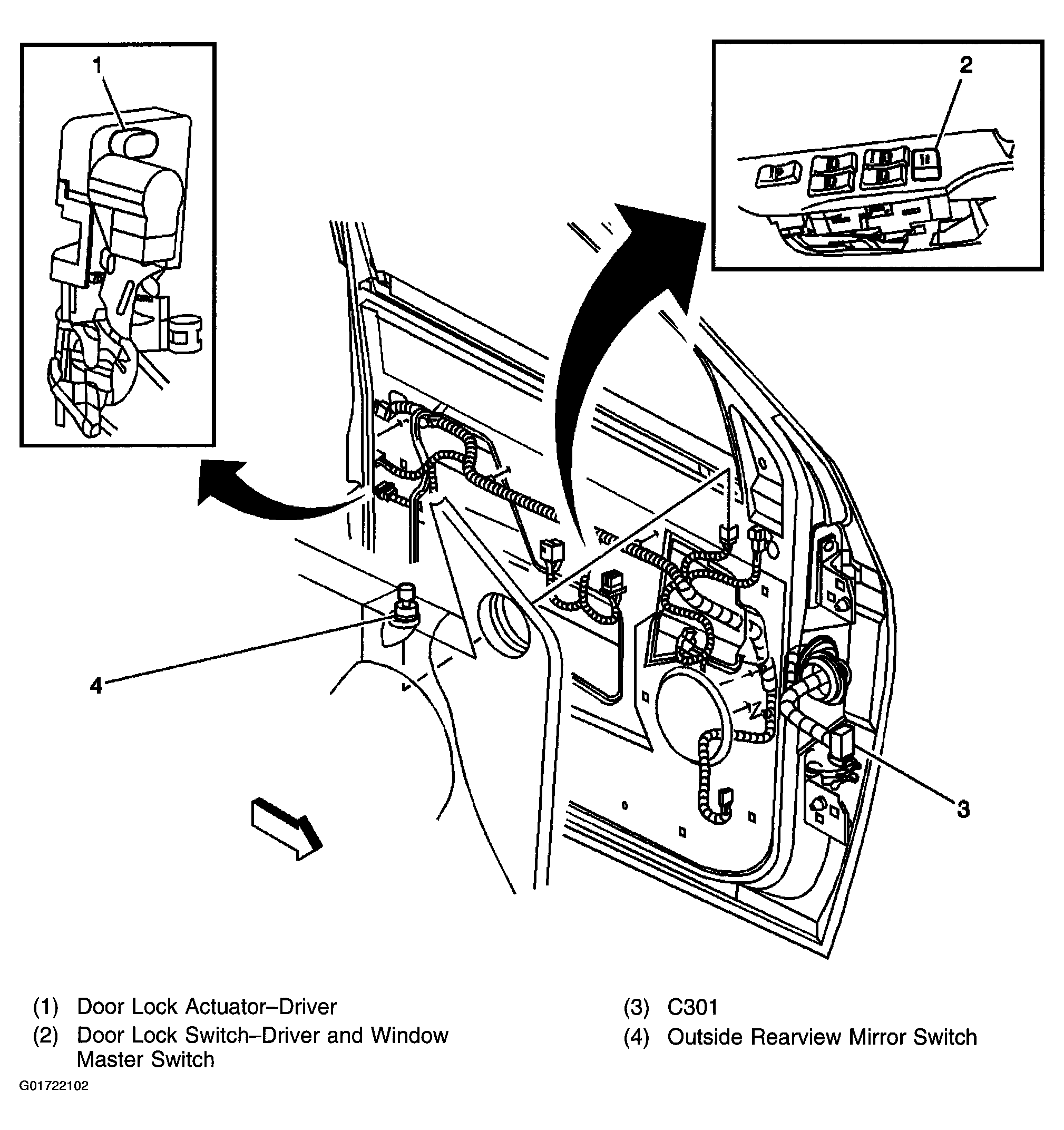

Fig 1: Door Component View - Driver

Courtesy of GENERAL MOTORS CORP.

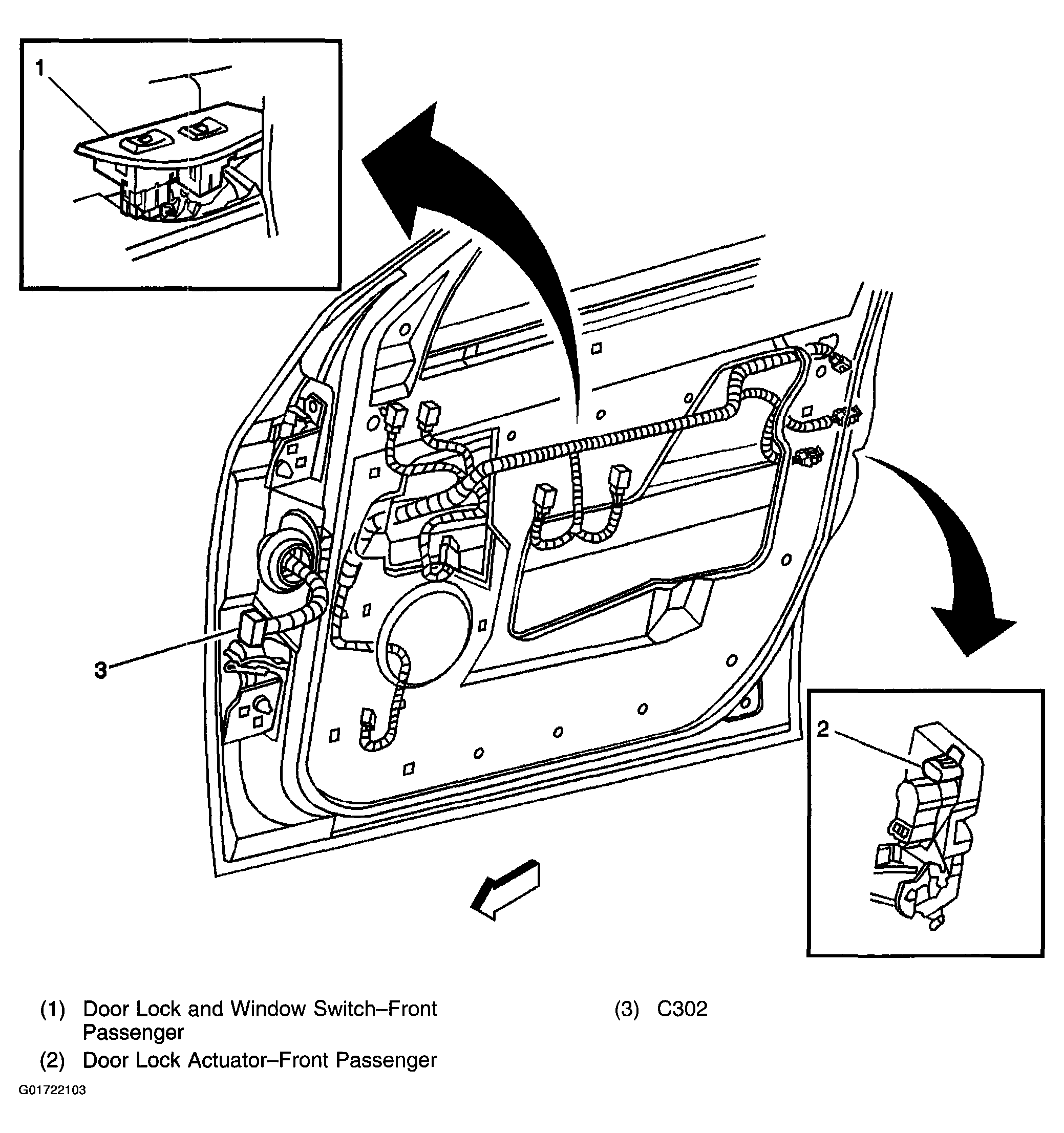

Fig 2: Door Component View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

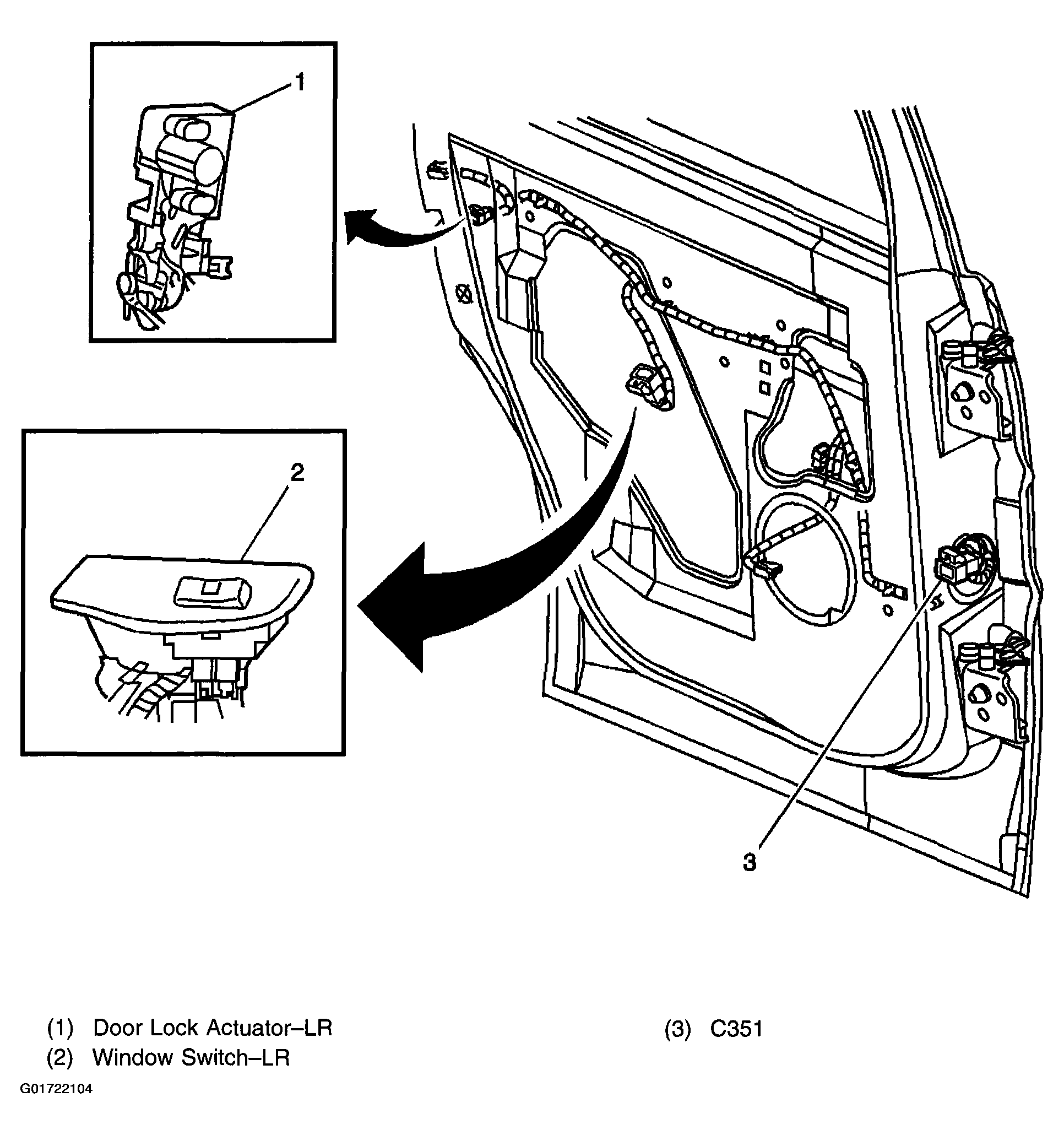

Fig 3: Door Component View - LR

Courtesy of GENERAL MOTORS CORP.

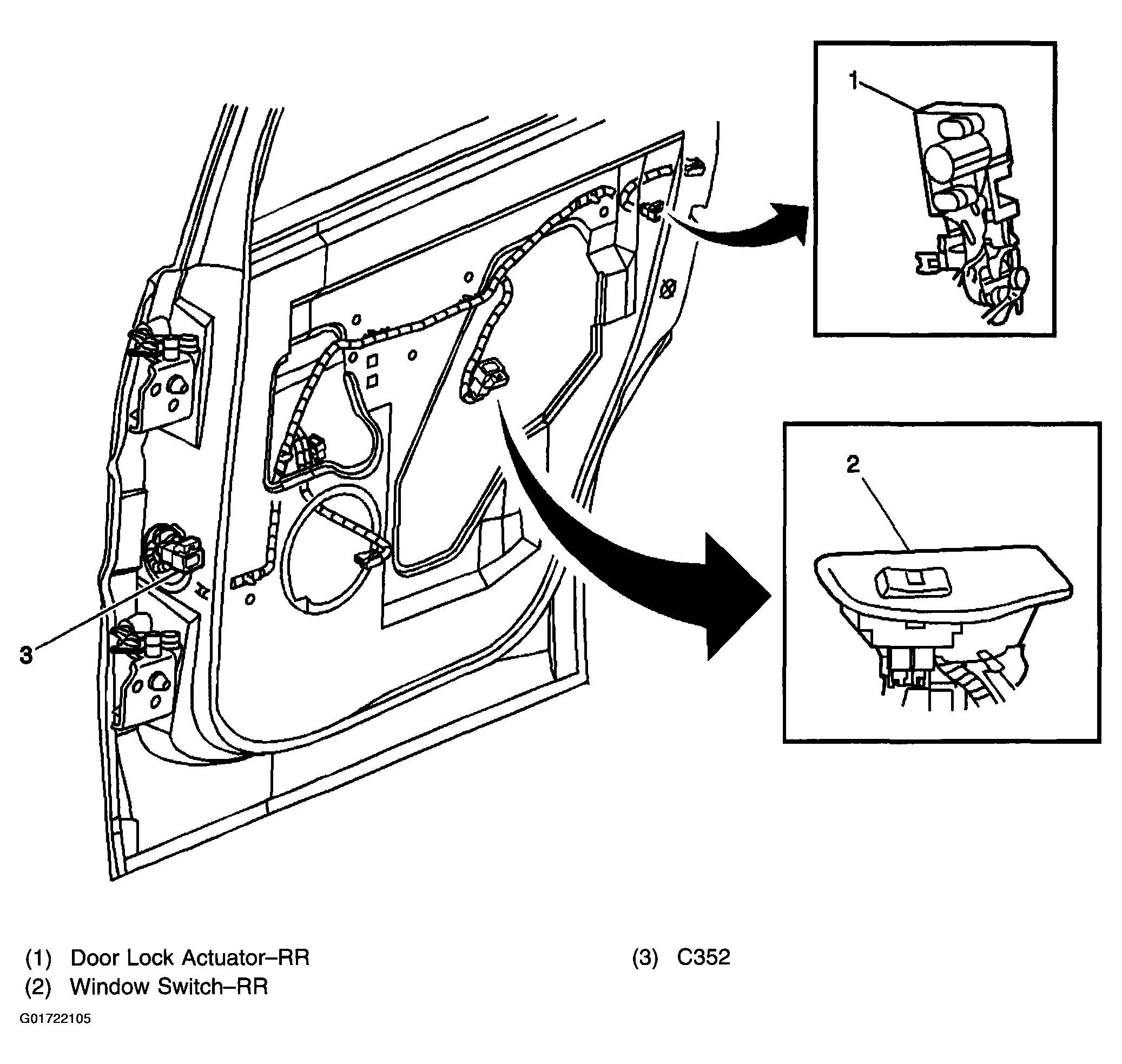

Fig 4: Door Component View - RR

Courtesy of GENERAL MOTORS CORP.
