Removal Procedure

  1. Open the front door.
  2. Remove the front door sill plates. Refer to INTERIOR TRIM .
  3. Remove the windshield garnish molding. Refer to INTERIOR TRIM .
  4. Remove the upper center pillar trim panel. Refer to INTERIOR TRIM .
  5. Remove the center lower trim panel. Refer to INTERIOR TRIM .
  6. Remove the front door opening weatherstrip by pulling it off the pinchweld flange.

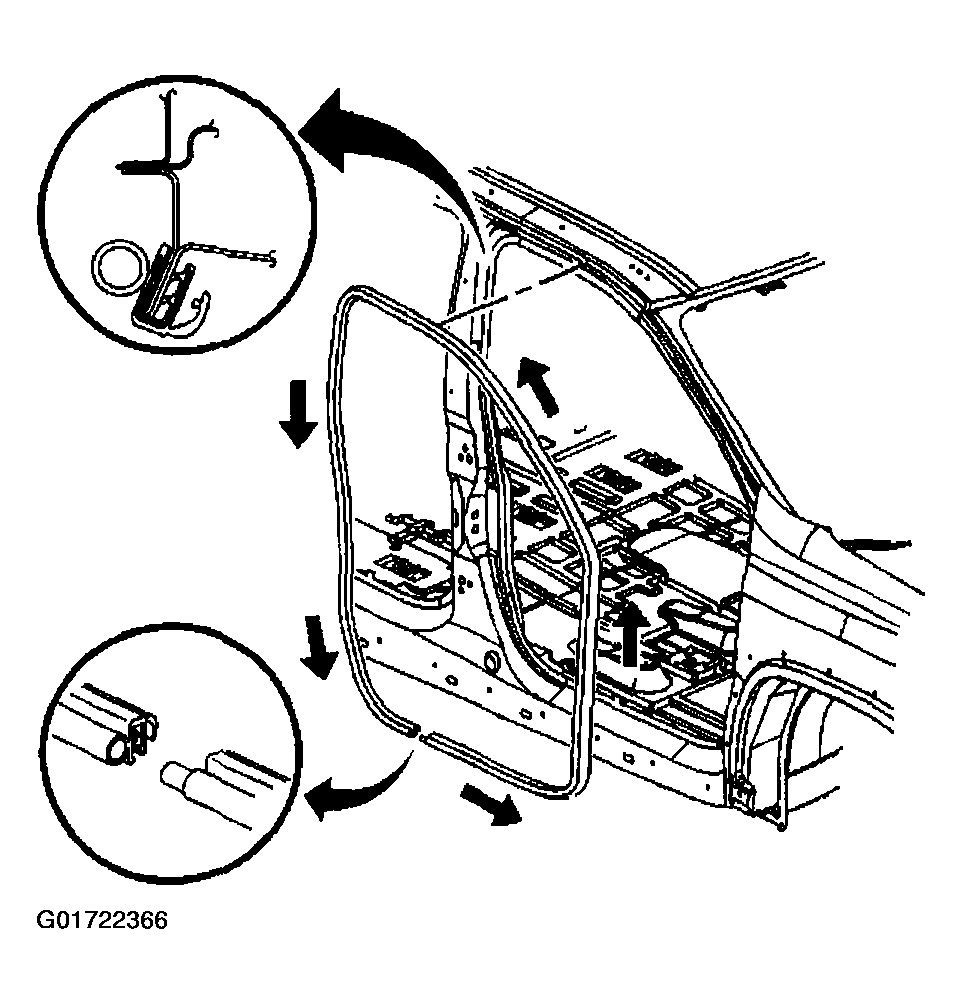

    Fig 1: Removing Front Door Opening Weatherstrip
    G01722366Courtesy of GENERAL MOTORS CORP.
