Installation Procedure

Connect the electrical connector to the lighted rearview mirror, if equipped.
Slide the mirror onto the mirror support.
NOTE: Refer to FASTENER NOTICE .
Install the screw to the base.
Tighten

Tighten the mirror screws to 2 N.m (18 lb in).

Fig 1: Installing Rearview Mirror Base Screw
Courtesy of GENERAL MOTORS CORP.
Install the wire harness cover from the lighted rearview mirror, if equipped.

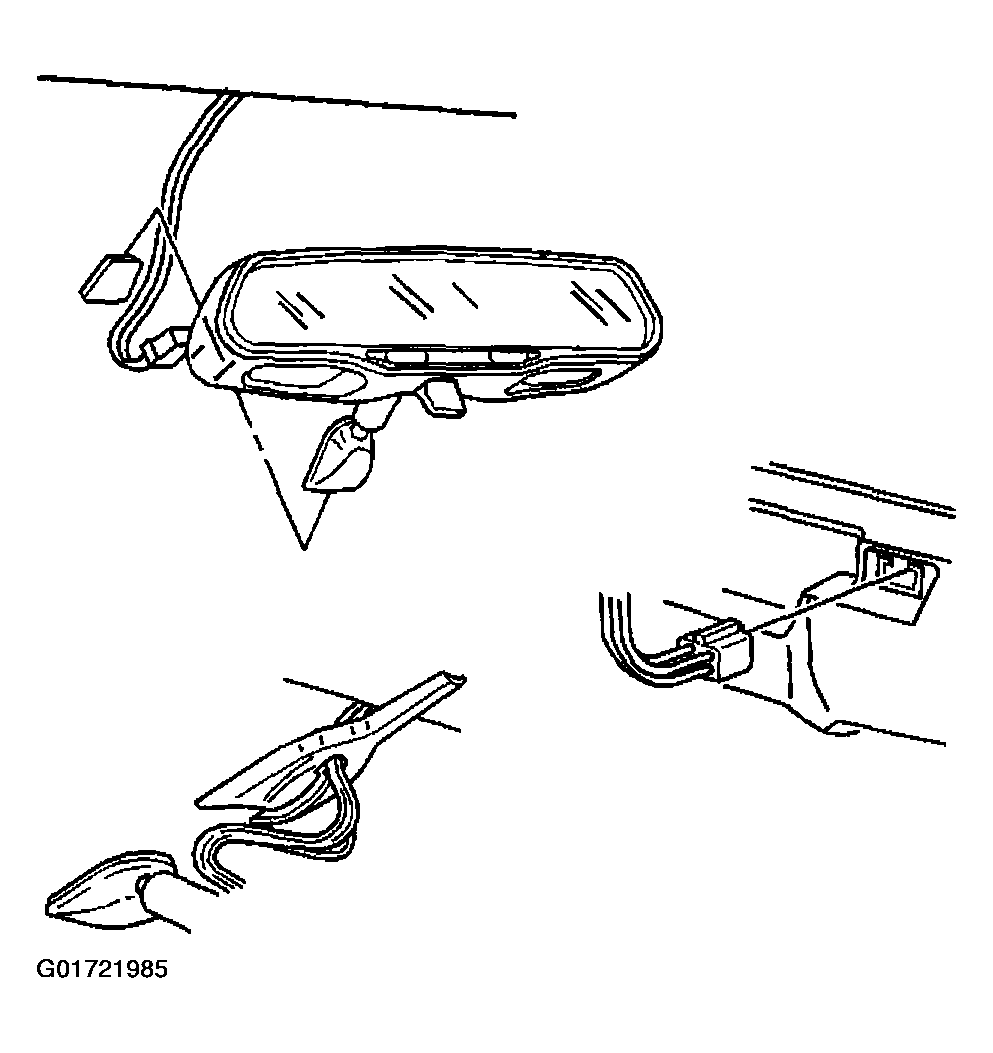

Fig 2: Installing Rearview Mirror Wire Harness
Courtesy of GENERAL MOTORS CORP.
