HVAC Control Module Connector End View

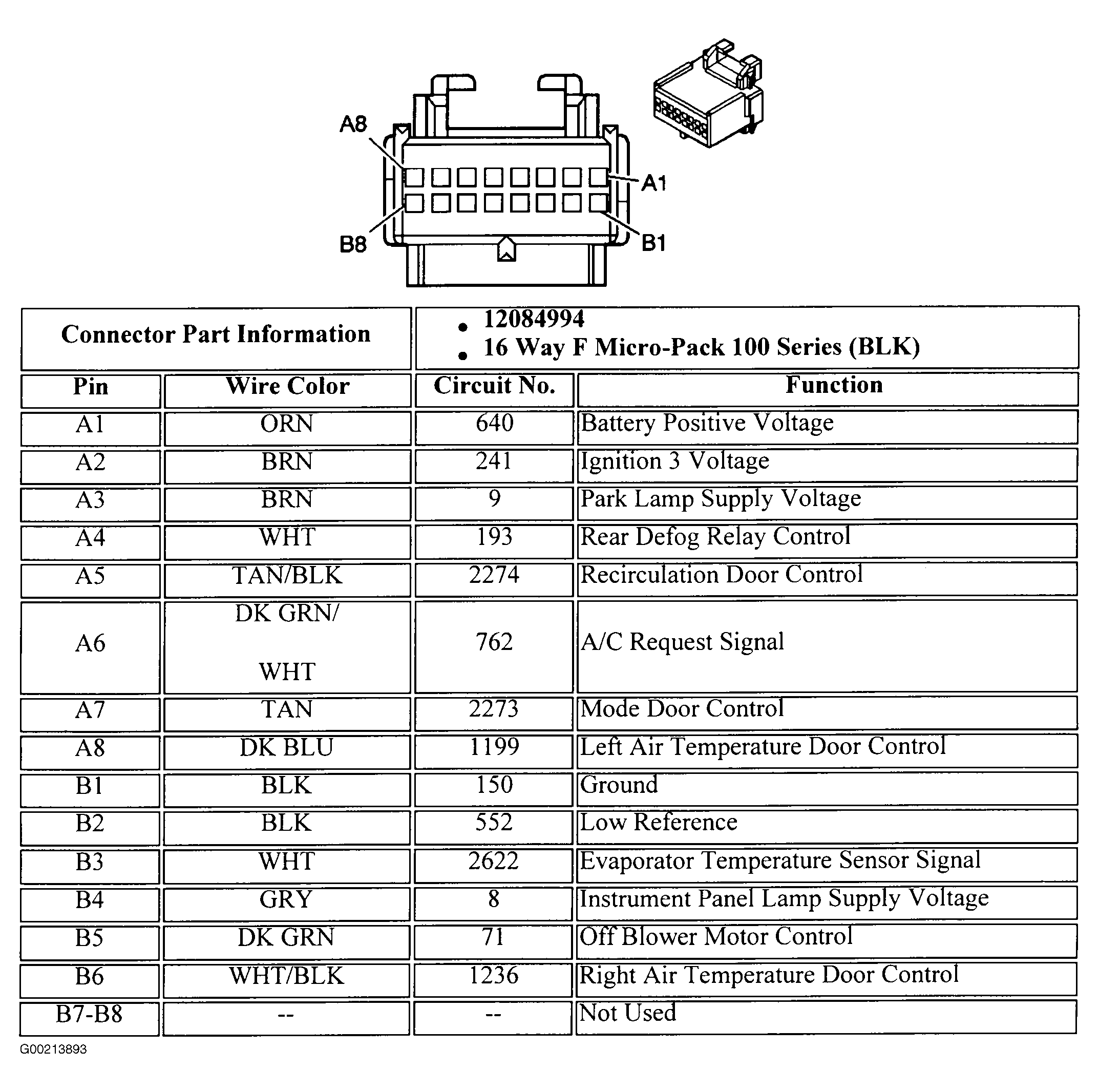

Fig 1: HVAC Control Module Connector End View
G00213893Courtesy of GENERAL MOTORS CORP.

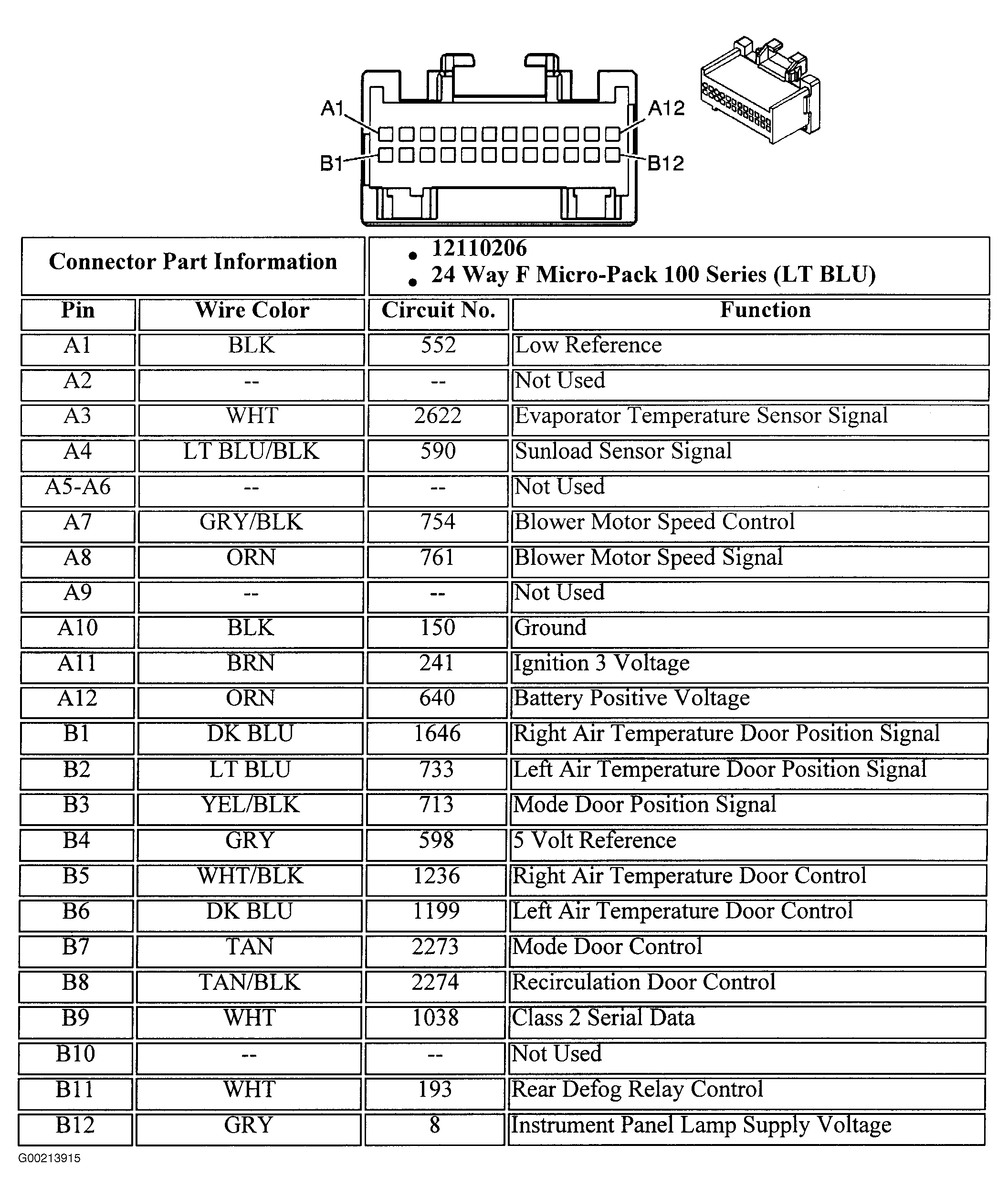

Fig 1: HVAC Control Module Connector End View
G00213915Courtesy of GENERAL MOTORS CORP.
