Home › Pontiac › 2002 › Aztek FWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Automatic Level Control (ALC) Compressor Connector End View

Automatic Level Control (ALC) Compressor Connector End View

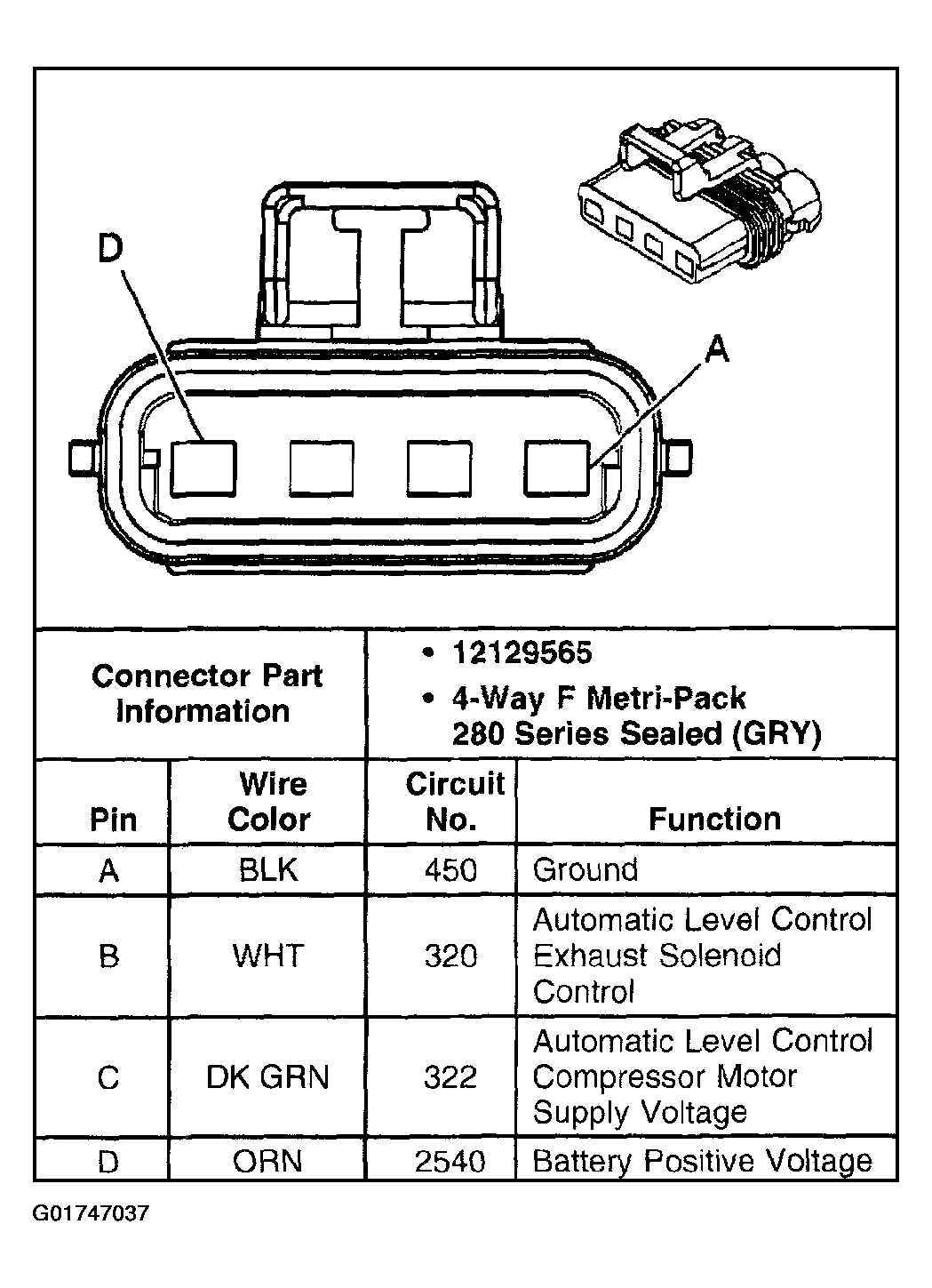

Fig 1: Automatic Level Control (ALC) Compressor
G01747037Courtesy of GENERAL MOTORS CORP.
