Body Control Module - C2 Connector End View
Body Control Module - C2 Connector End View

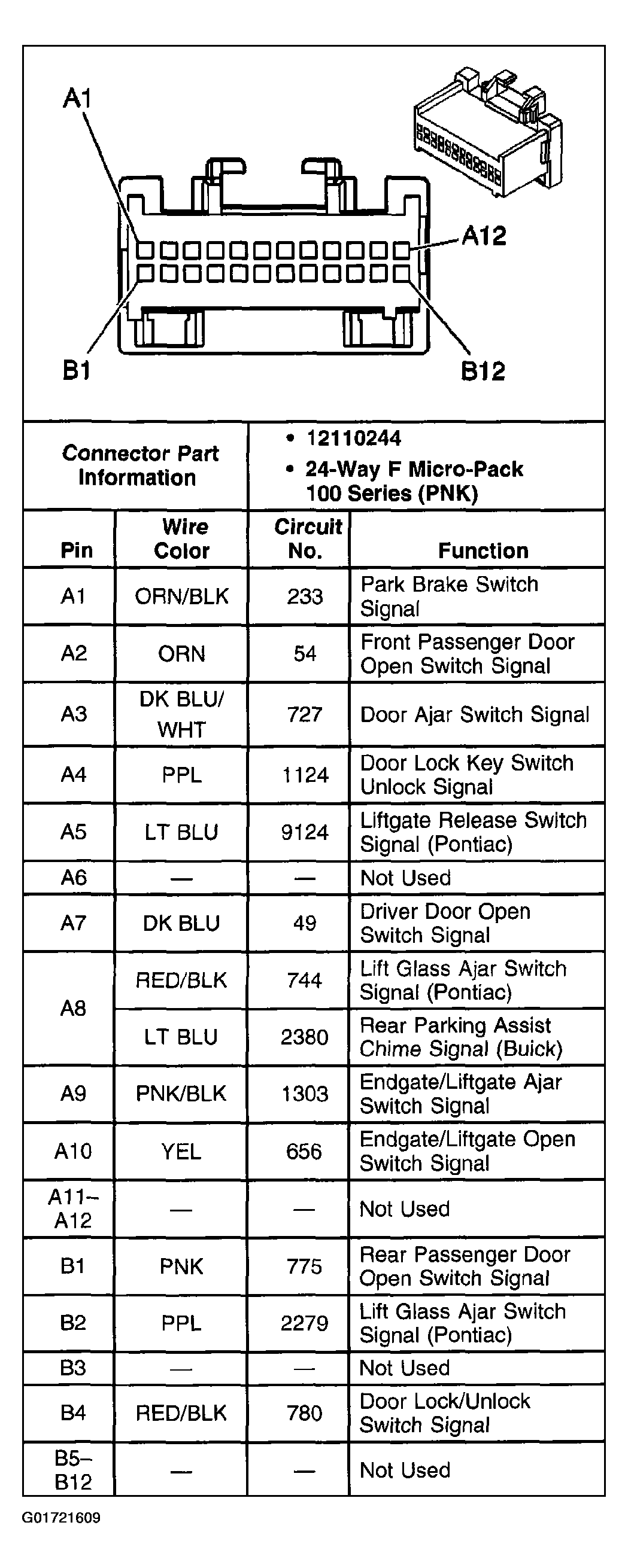

Fig 1: Body Control Module - C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
