Horns Connector End Views

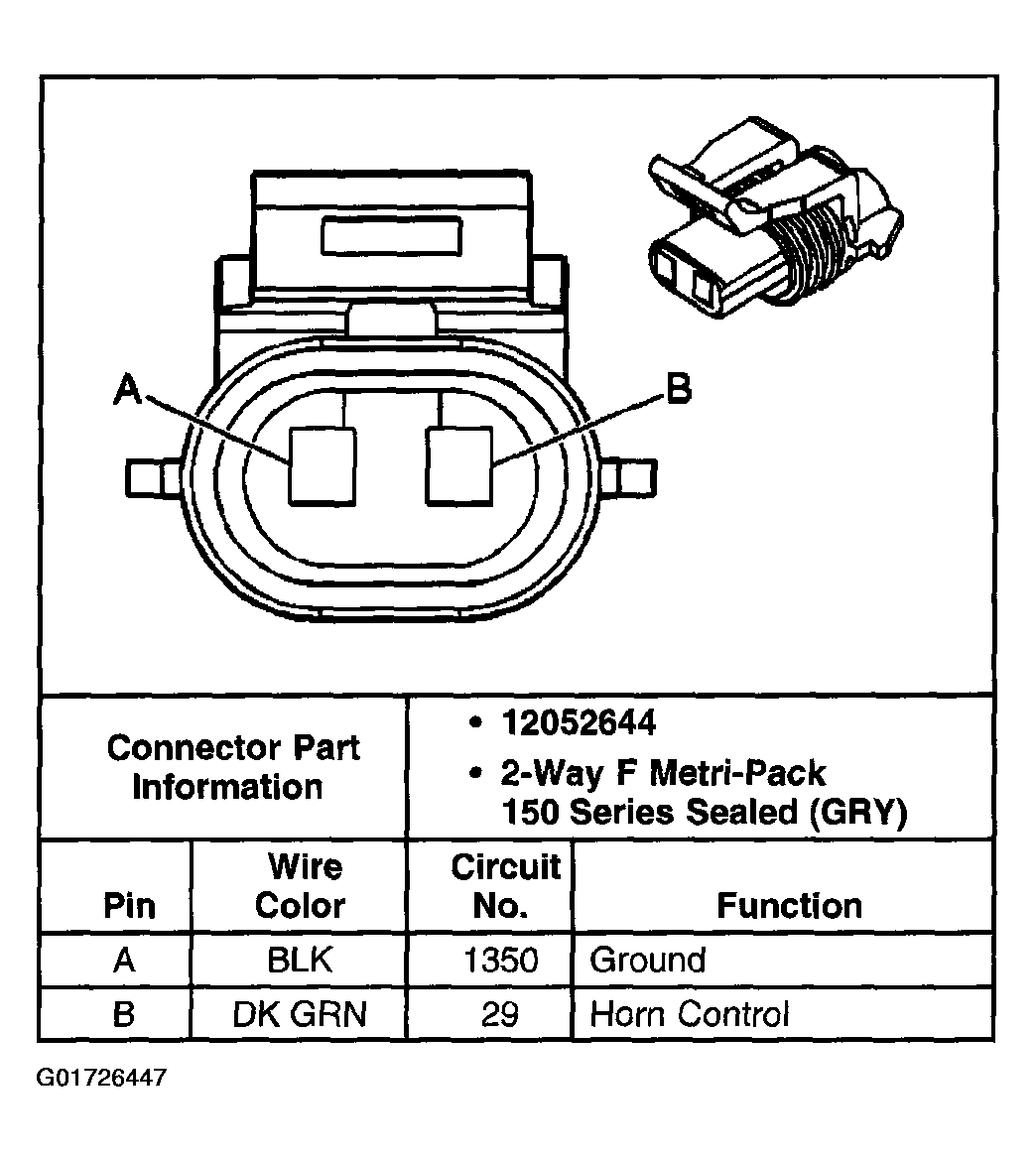

Fig 1: Horn Connector End Views - Left (Low Note)
G01726447Courtesy of GENERAL MOTORS CORP.

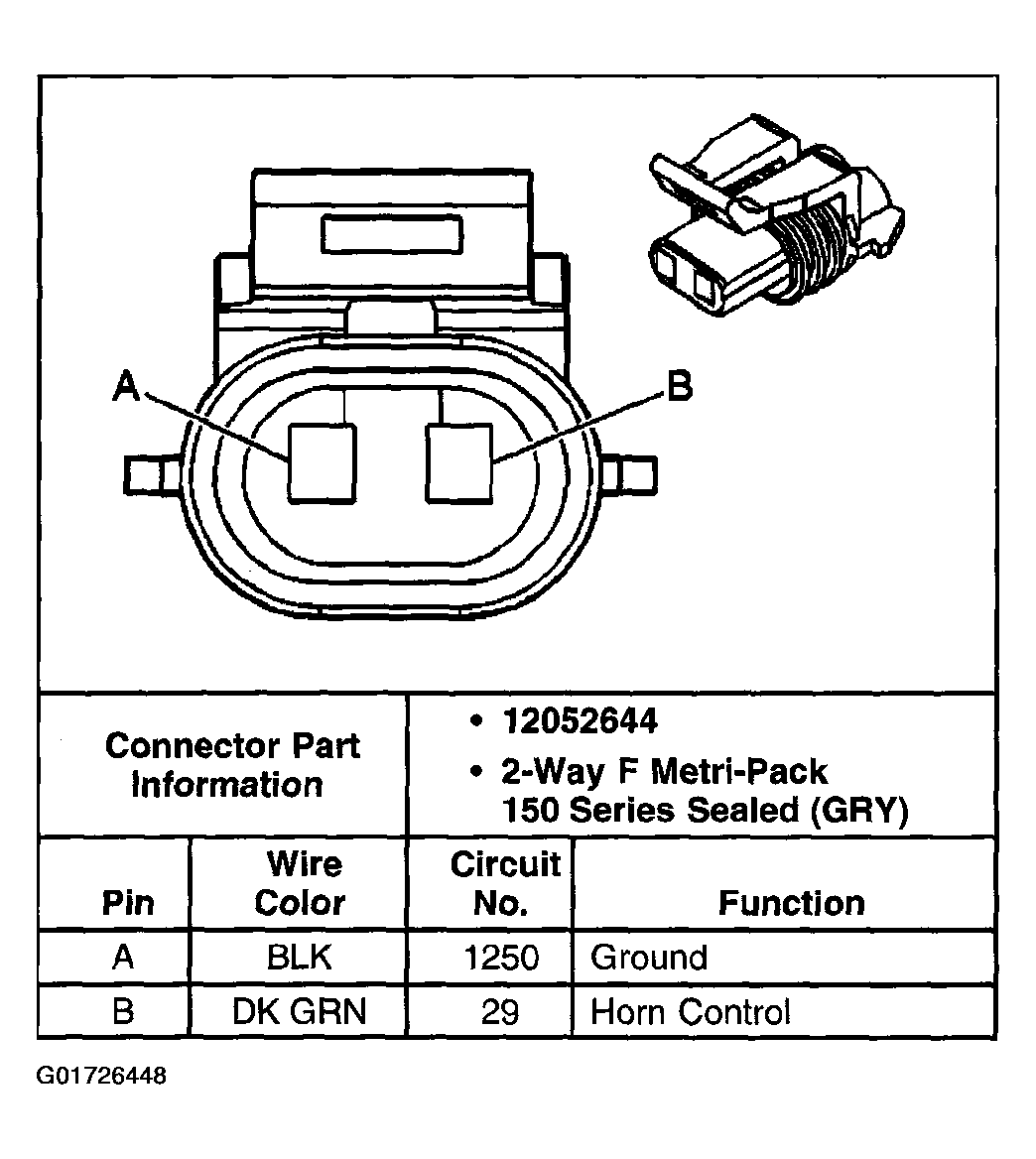

Fig 2: Horn Connector End Views - Right (High Note)
G01726448Courtesy of GENERAL MOTORS CORP.
