Removal Procedure

  1. Open the hood.
  2. Remove the cover (2) from the underhood electrical center.

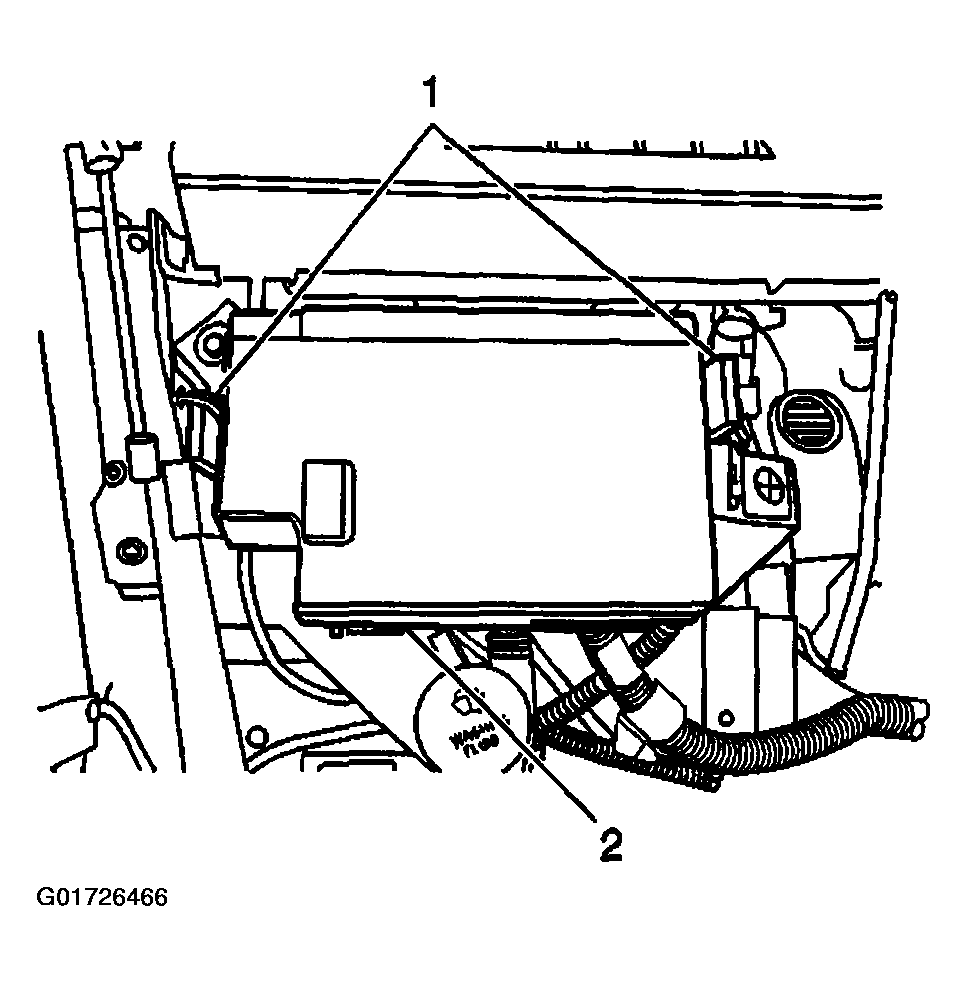

    Fig 1: Removing Underhood Electrical Center Cover
    G01726466Courtesy of GENERAL MOTORS CORP.
  3. Using J 43244  remove the horn relay (1) from the underhood electrical center.

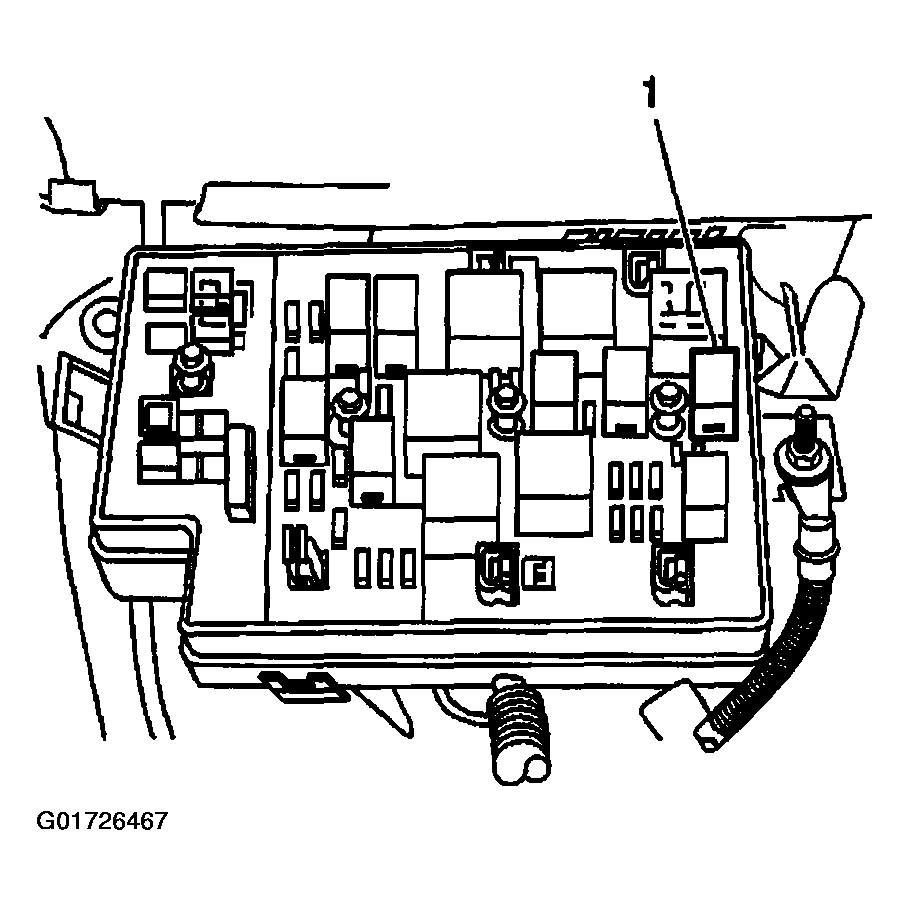

    Fig 2: View Of Horn Relay
    G01726467Courtesy of GENERAL MOTORS CORP.
