Disassembled Views

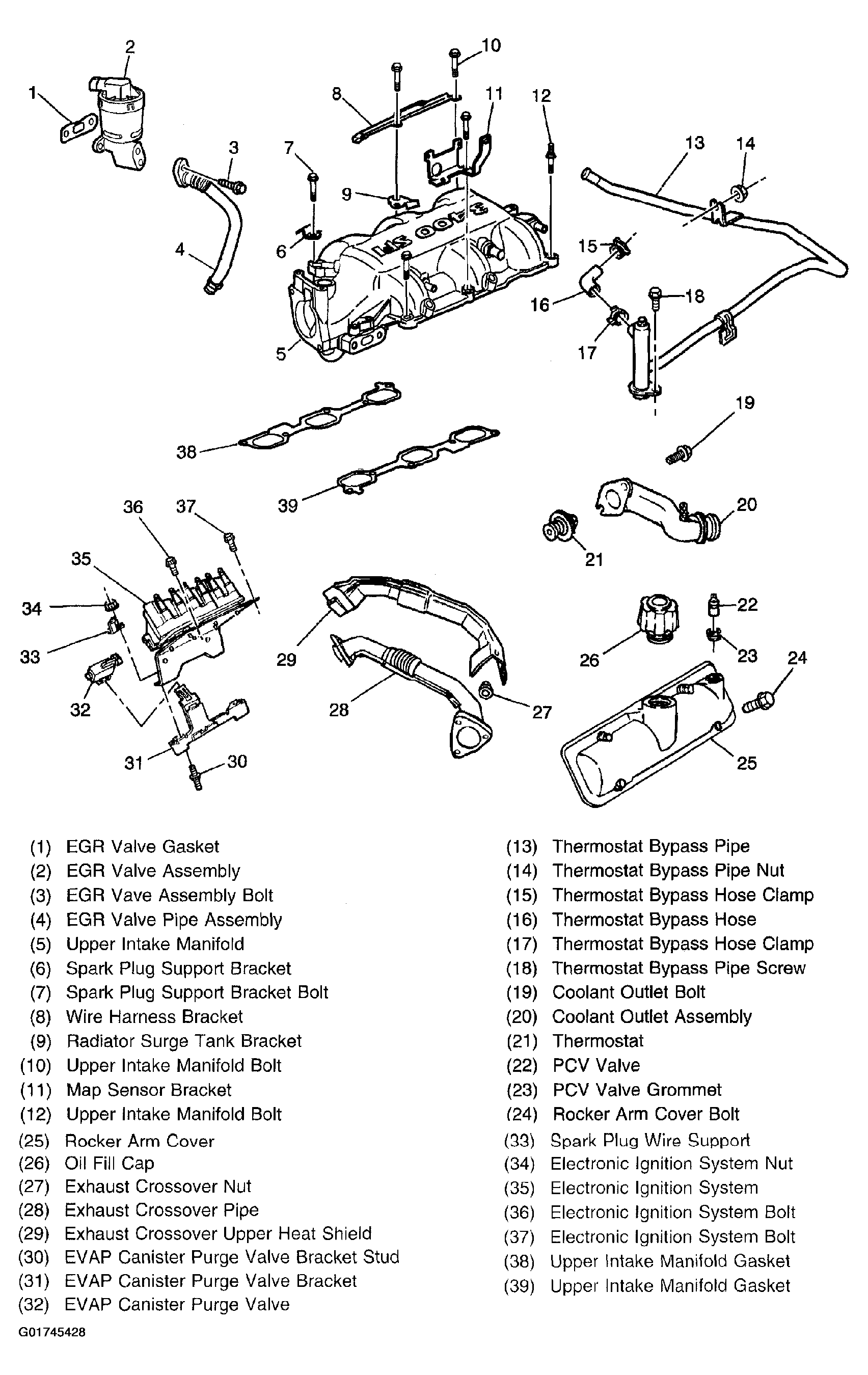

Fig 1: Upper Intake Manifold and Components

Courtesy of GENERAL MOTORS CORP.

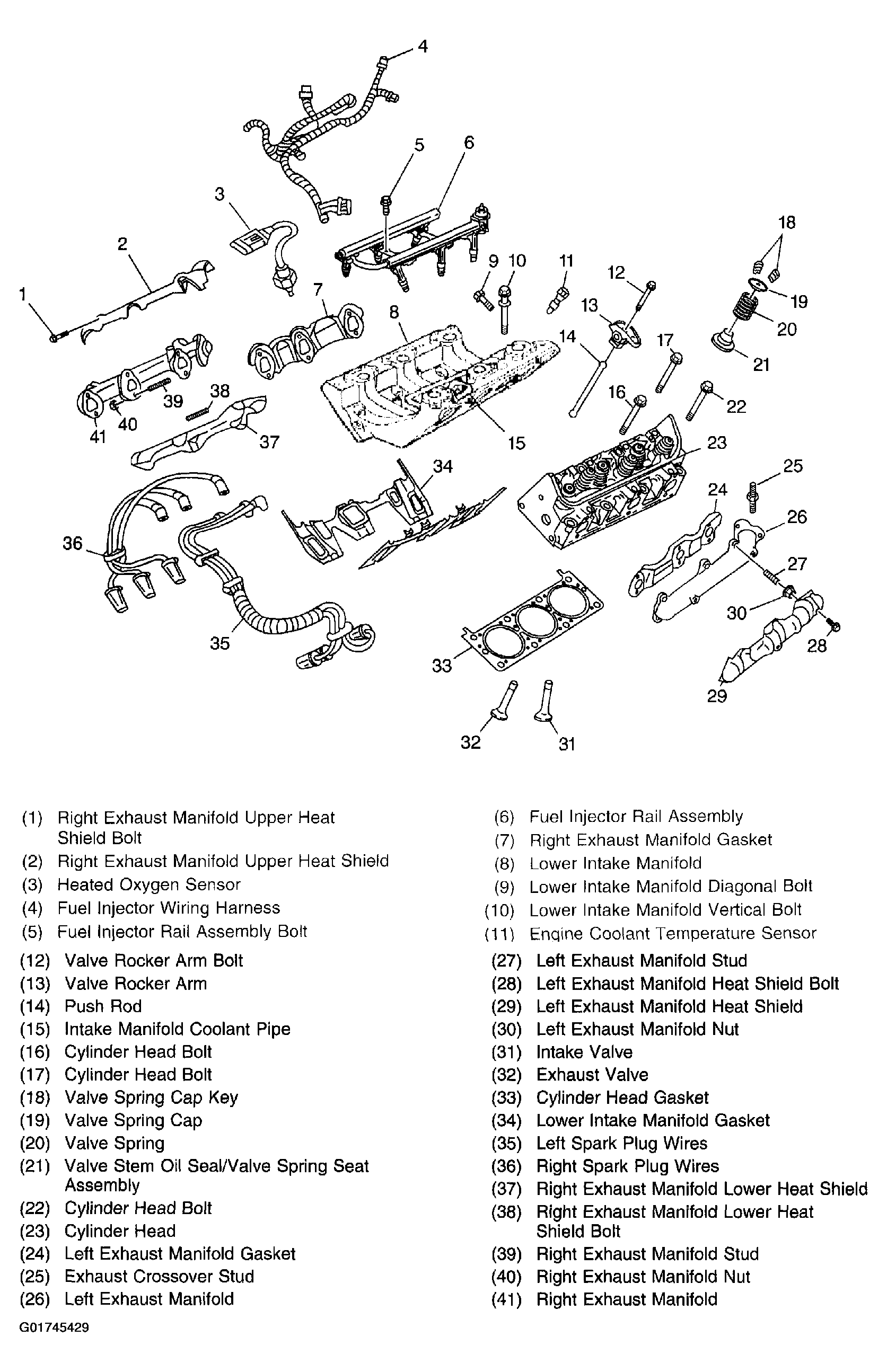

Fig 2: Lower Intake Manifold, Cylinder Head, and Components

Courtesy of GENERAL MOTORS CORP.

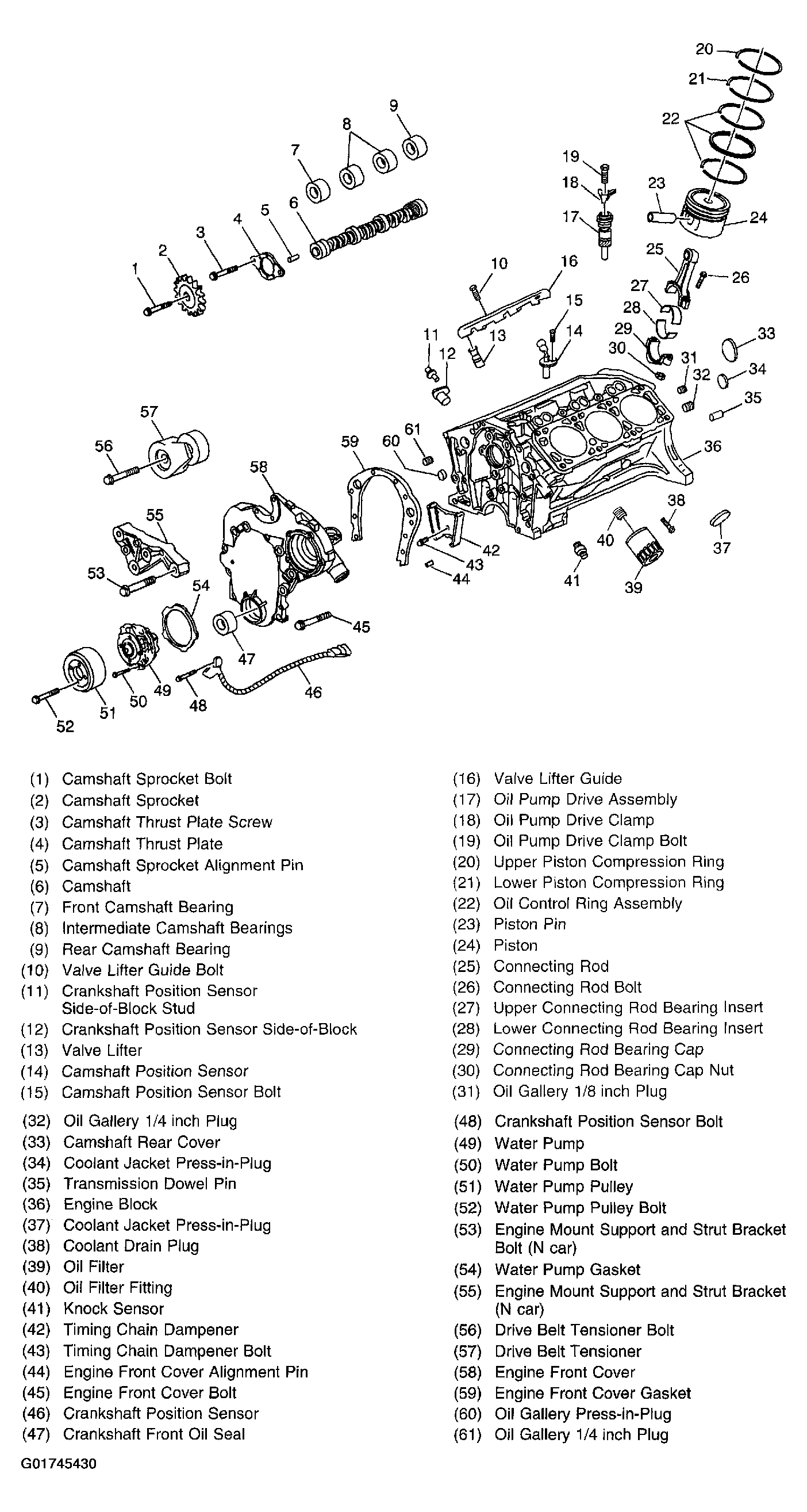

Fig 3: Engine Block and Components

Courtesy of GENERAL MOTORS CORP.

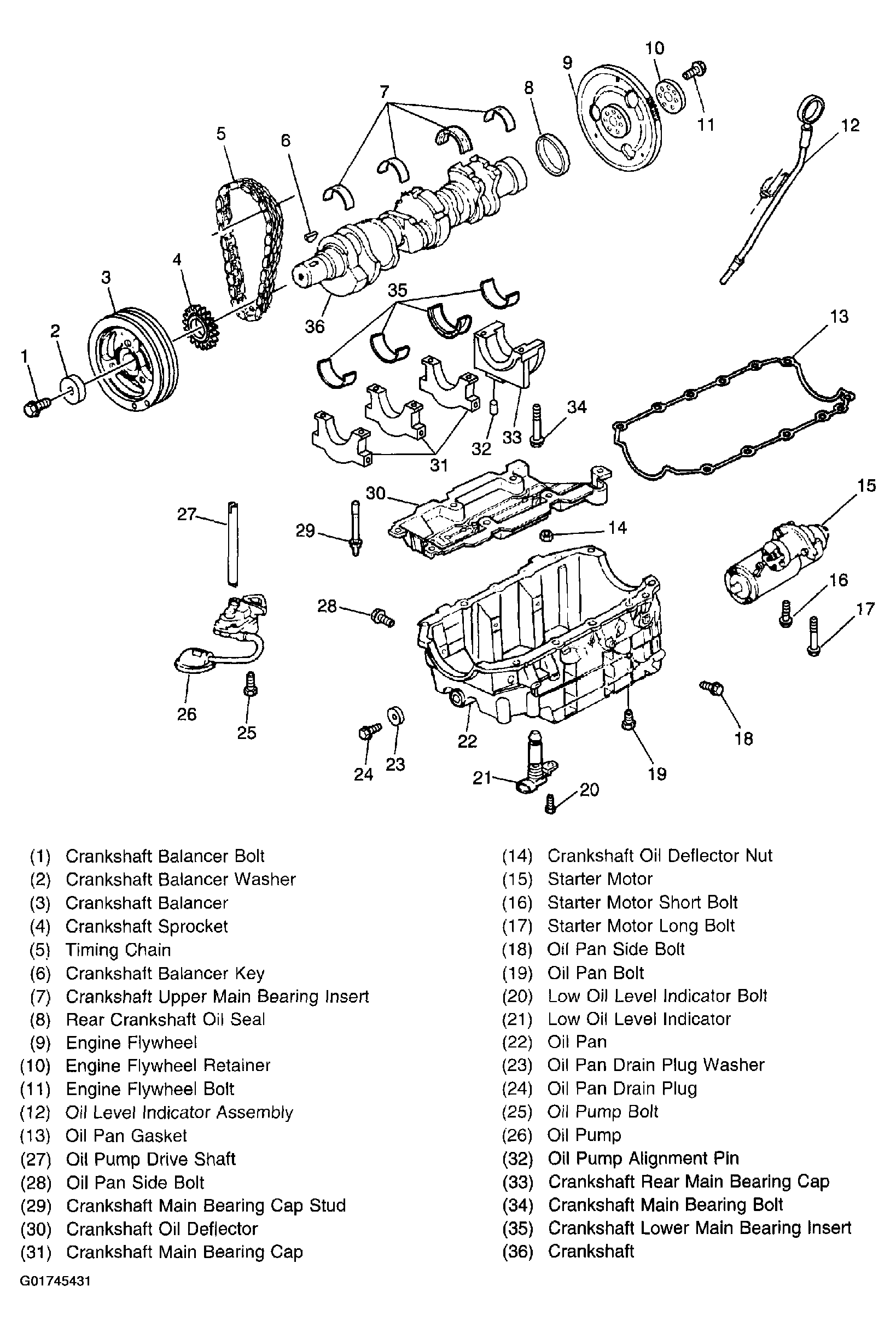

Fig 4: Crankshaft and Components

Courtesy of GENERAL MOTORS CORP.
