Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the release cables through the opening in the upper seat back frame.
  2. Snap the release lever mechanism to the seat back frame.
  3. Route the cables.
    Fig 1: Inserting Release Cables Through Opening In Upper Seat Back Frame
    G01451698Courtesy of GENERAL MOTORS CORP.
  4. Install the release cables to the right and left hinges inserting the locking pins in the notches.
  5. Apply Loctite™ 271 to the hinge bolts.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the nuts to the right and left hinge bolts.

    Tighten

    Tighten the hinge bolt nuts to 24 N.m (18 lb ft).

  7. Install the seat back free play retention cable (passenger seat only).

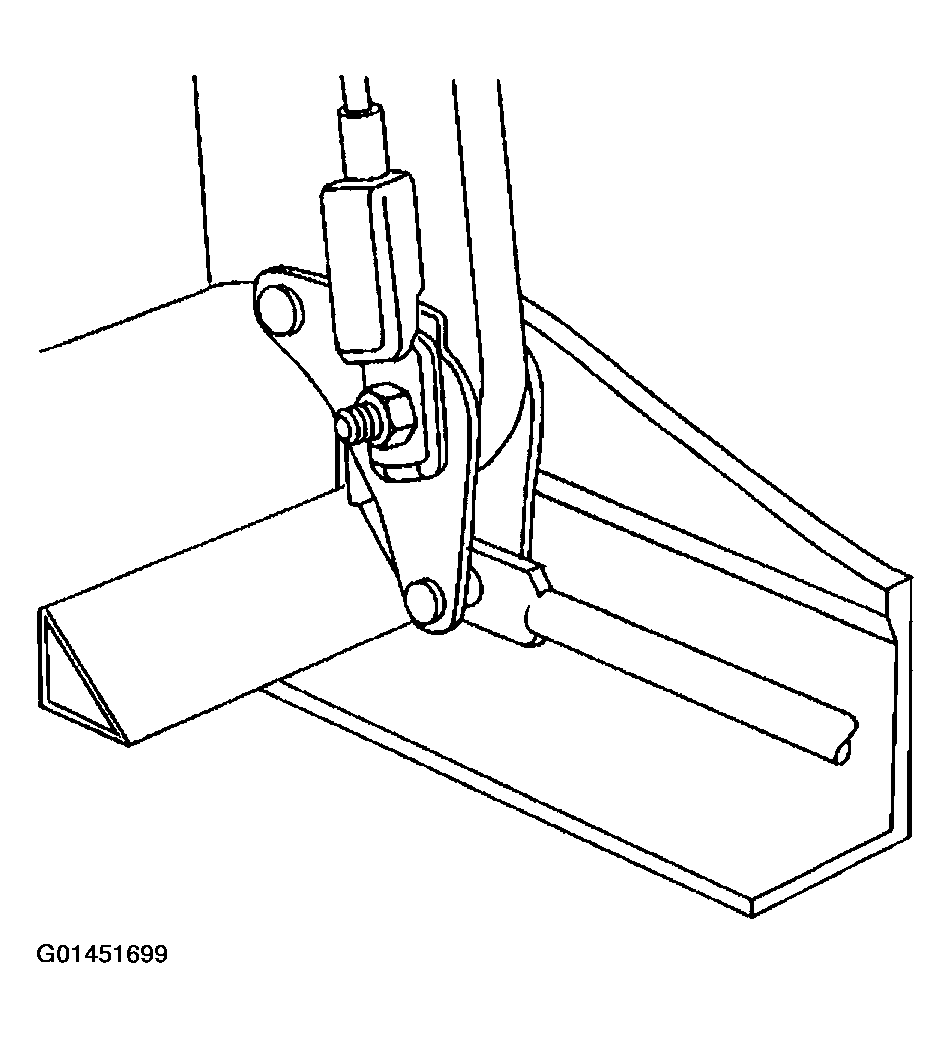

    Fig 2: Installing Release Cables To Right & Left Hinges
    G01451699Courtesy of GENERAL MOTORS CORP.
  8. Install the seat back trim cover. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT (RPO AR9 BASE SEAT) .
  9. Install the release lever bezel.

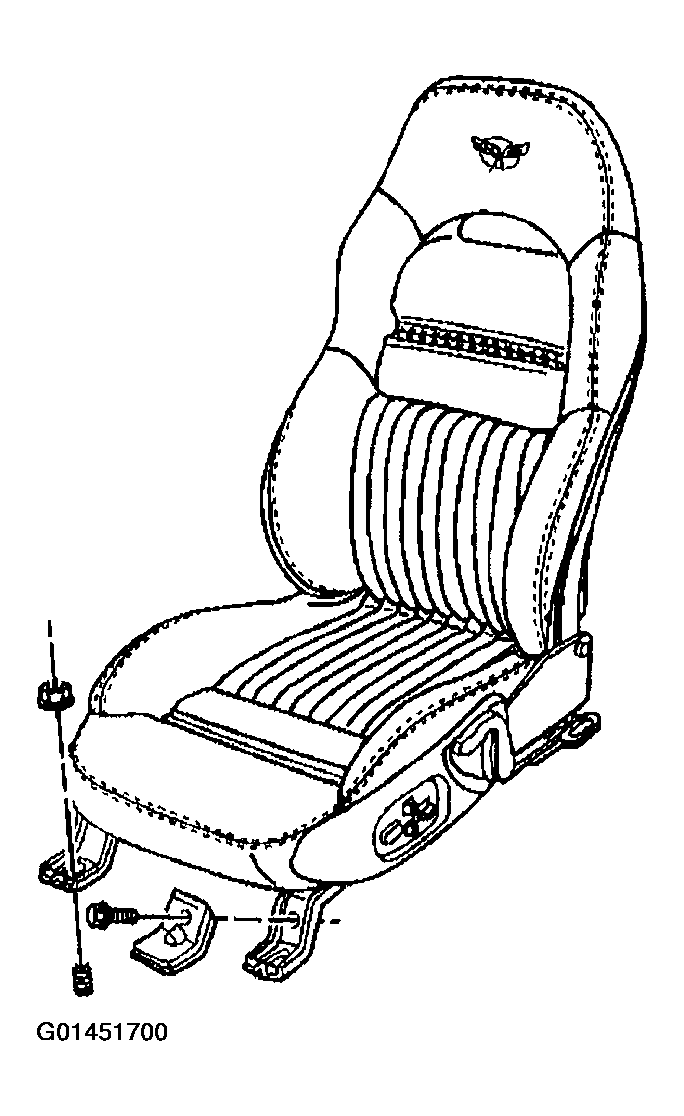

    Fig 3: Seat Back Trim Cover
    G01451700Courtesy of GENERAL MOTORS CORP.
