Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust muffler.
Install the exhaust muffler rear hanger insulators to the exhaust muffler.

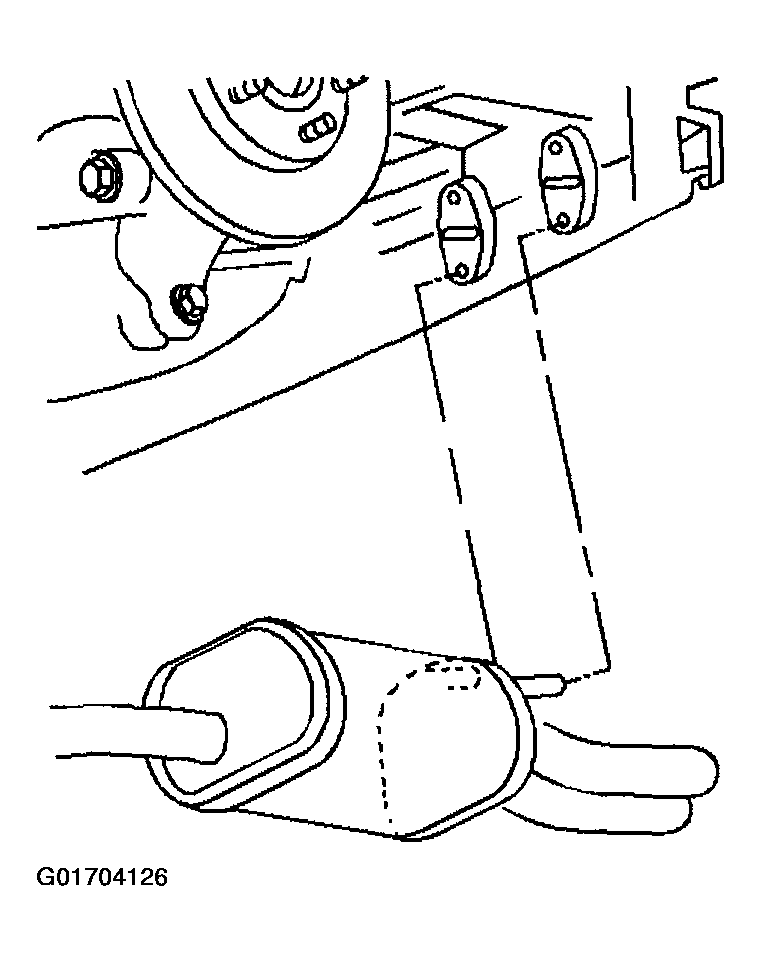

Fig 1: Exhaust Muffler & Rear Hanger Insulators
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Connect the exhaust muffler to the exhaust pipe with a exhaust muffler inlet pipe clamp.
Tighten

Tighten the exhaust muffler inlet pipe clamp nuts to 50 N.m (37 lb ft).

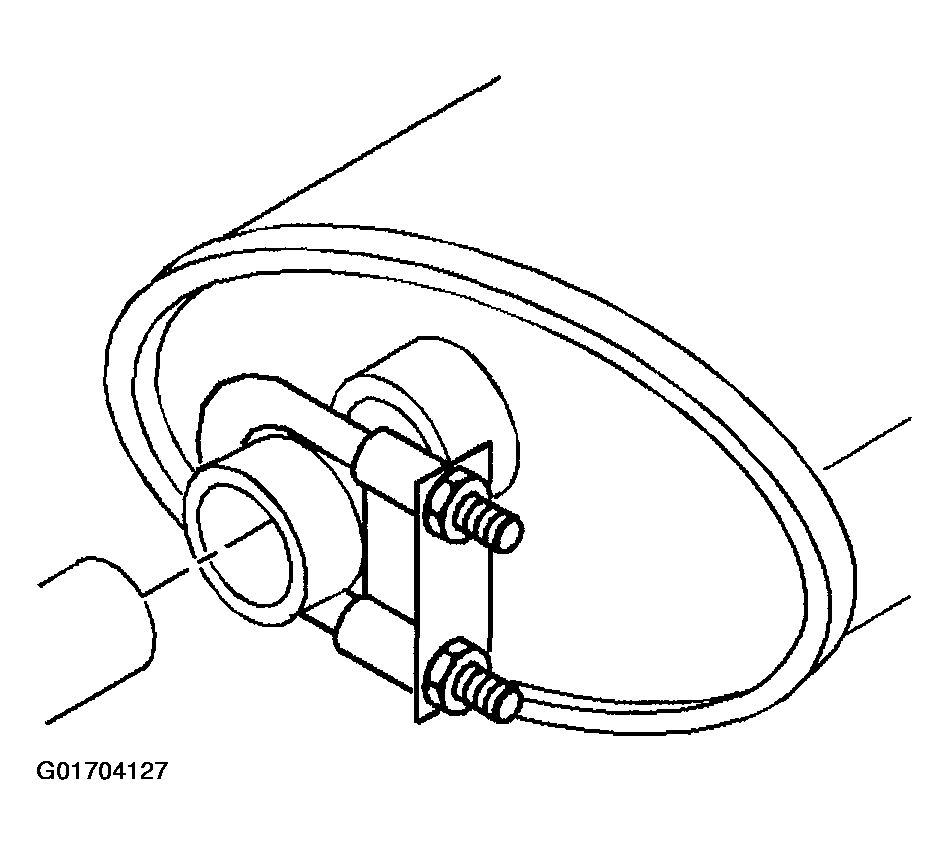

Fig 2: Exhaust Muffler, Pipe, Inlet Pipe Clamp & Nuts
Courtesy of GENERAL MOTORS CORP.
Install and adjust the exhaust tail pipe.
Tighten the tail pipe clamp.
Tighten

Tighten the tail pipe clamp to 35 N.m (26 lb ft).
Remove the support from the exhaust system.
Inspect the exhaust system for leaks and underbody contact.
Lower the vehicle.

Fig 3: Exhaust Tail Pipe & Clamp
Courtesy of GENERAL MOTORS CORP.
