Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radiator Support & Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The ambient air temperature sensor must be orientated so that the sensor probe end is inboard and the electrical connector is outboard.

Install the ambient air temperature sensor to the lower radiator support.
Install the push-in retainer to secure the ambient air temperature sensor to the radiator support.

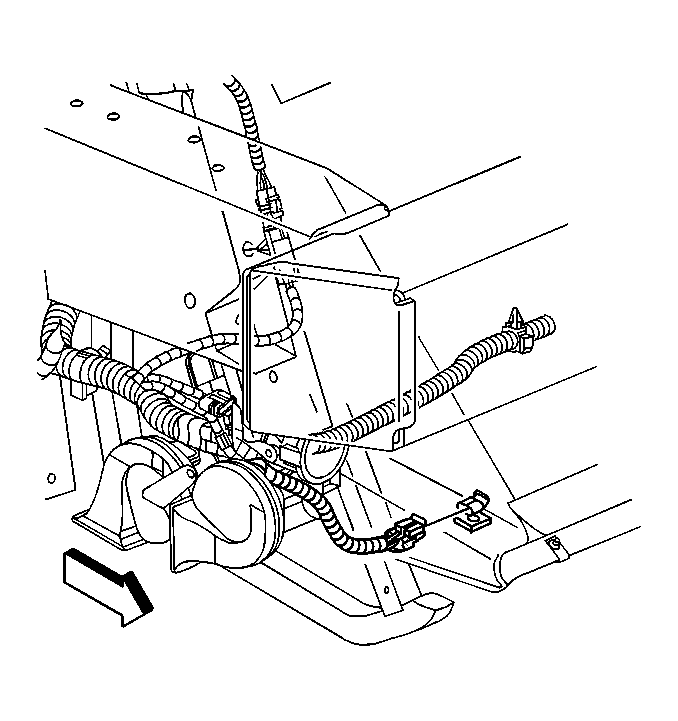

Fig 2: Ambient Air Temperature Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the ambient air temperature sensor electrical connector.
