Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

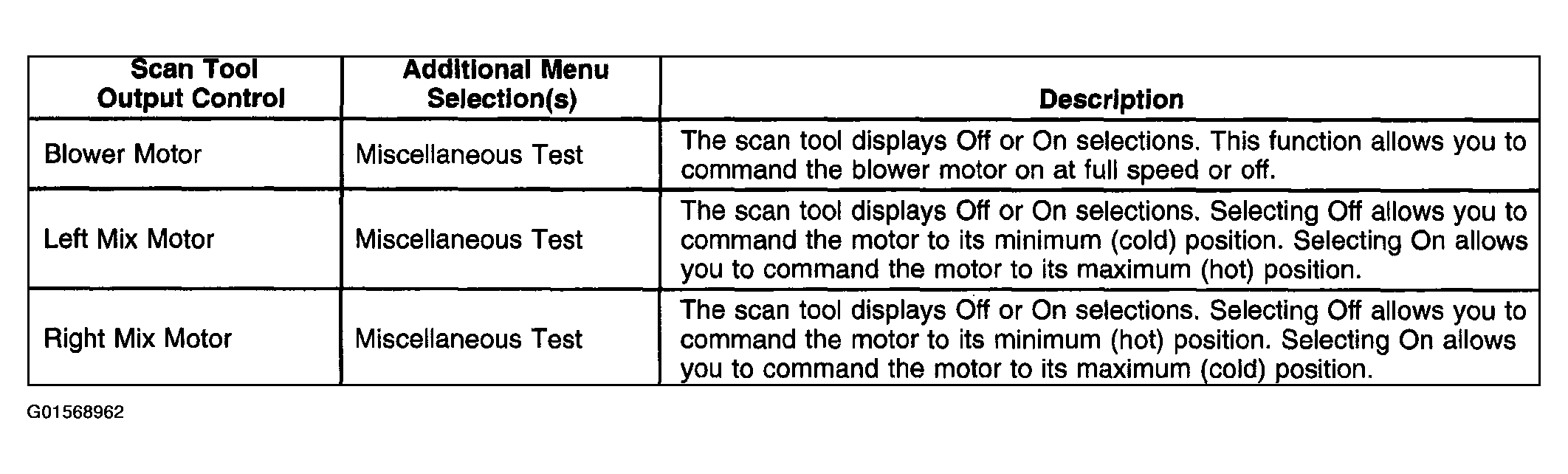

Fig 1: Heating And Air Conditioning Scan Tool Output Controls Table

Courtesy of GENERAL MOTORS CORP.

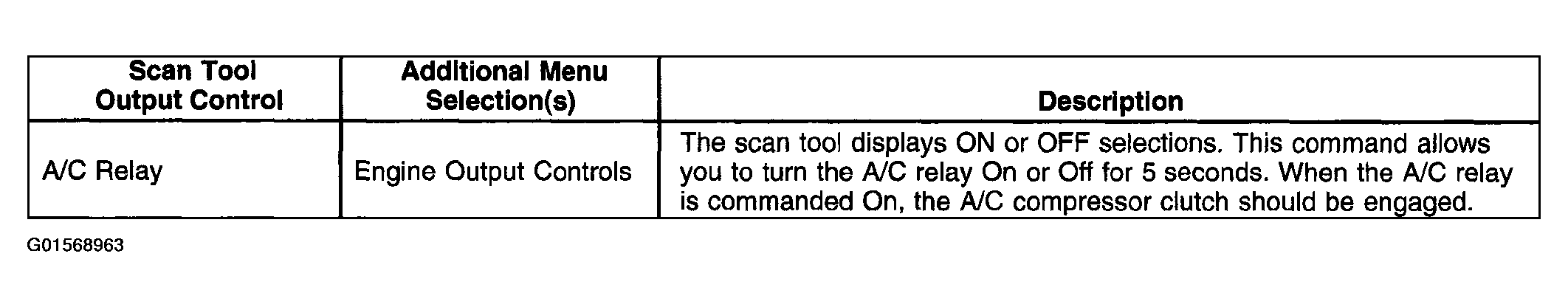

Fig 2: PCM Scan Tool Output Controls Table

Courtesy of GENERAL MOTORS CORP.
