Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

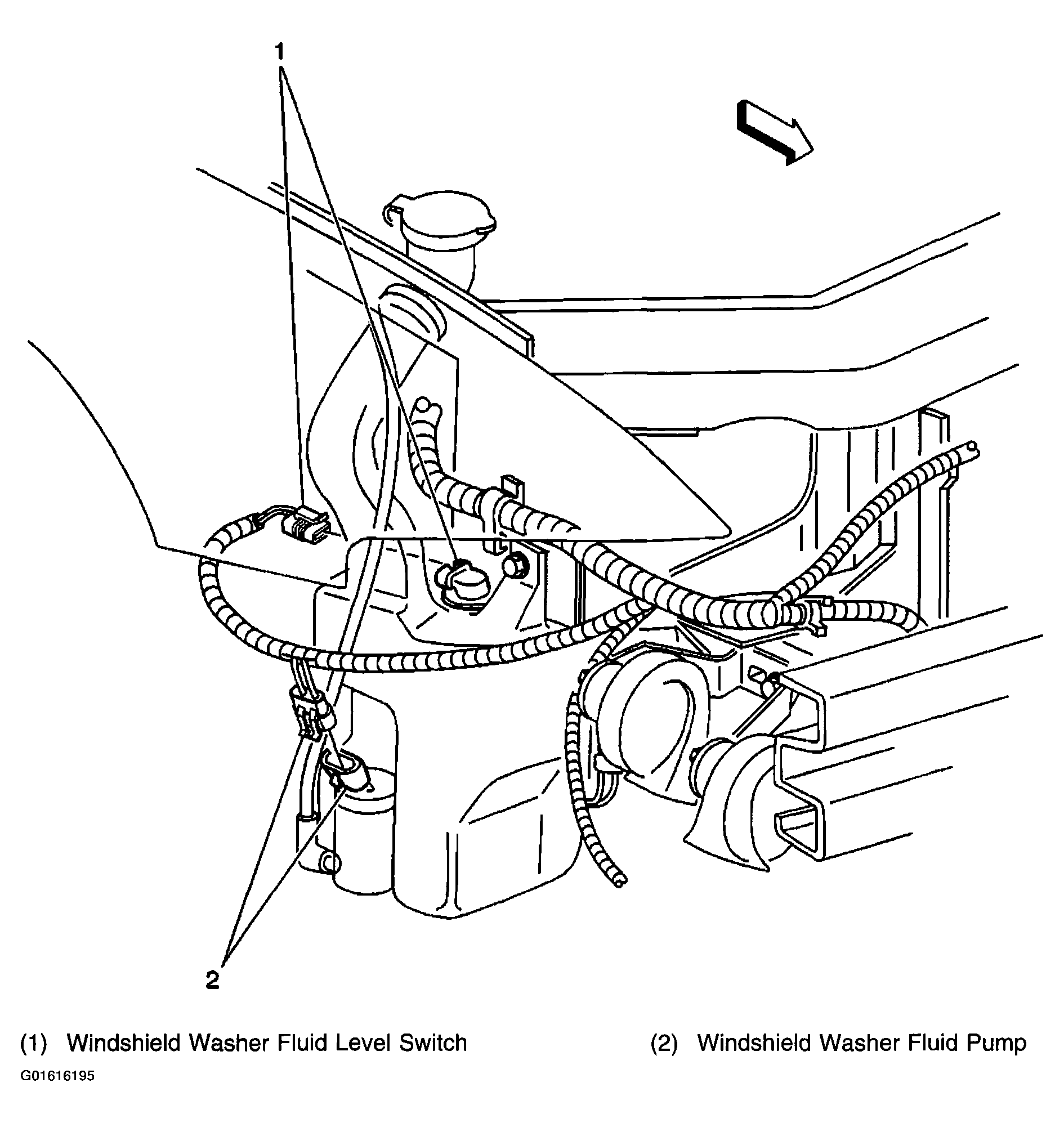

Fig 1: Right Front Fender
G01616195Courtesy of GENERAL MOTORS CORP.

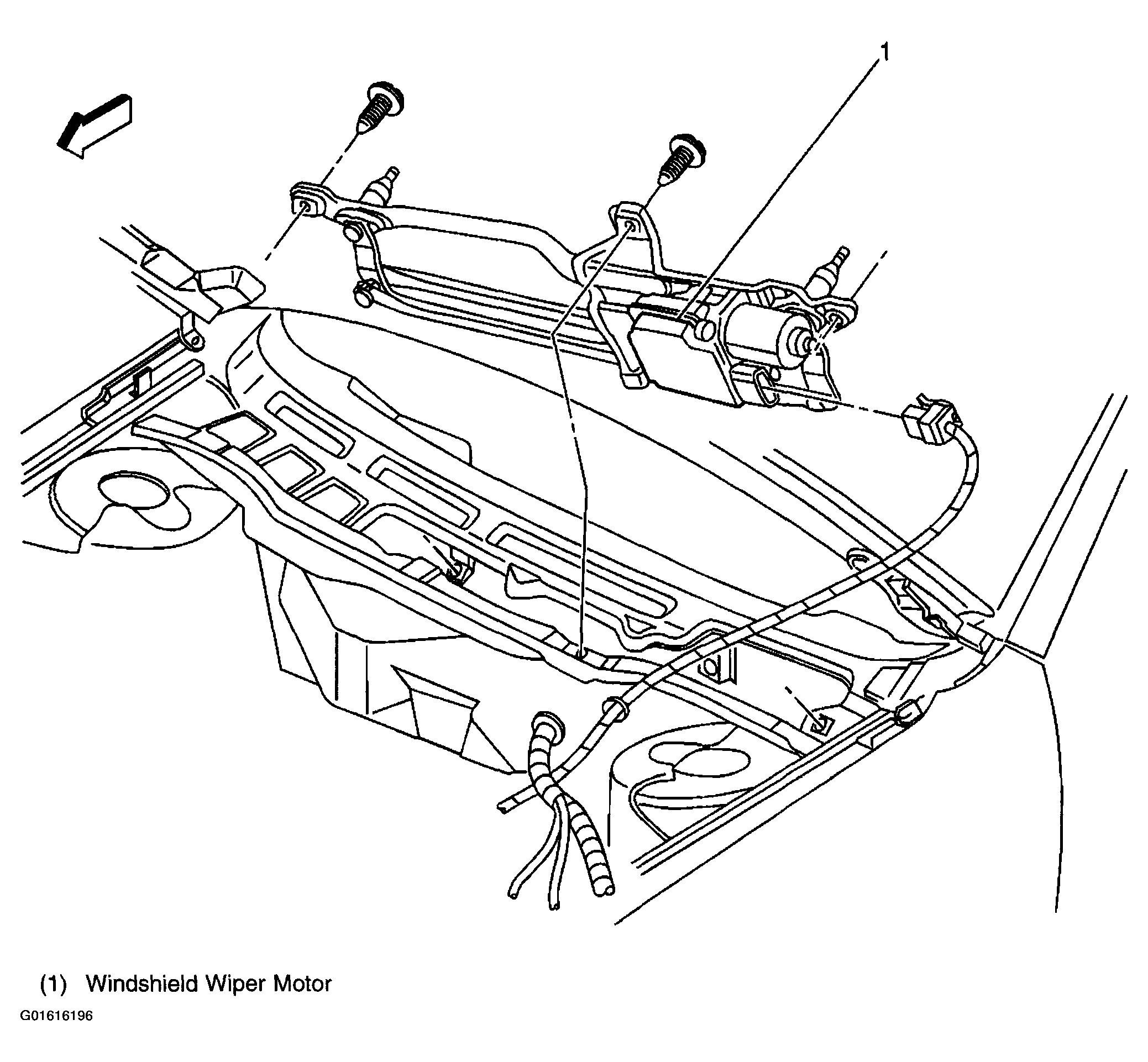

Fig 2: Base Of Windshield
G01616196Courtesy of GENERAL MOTORS CORP.

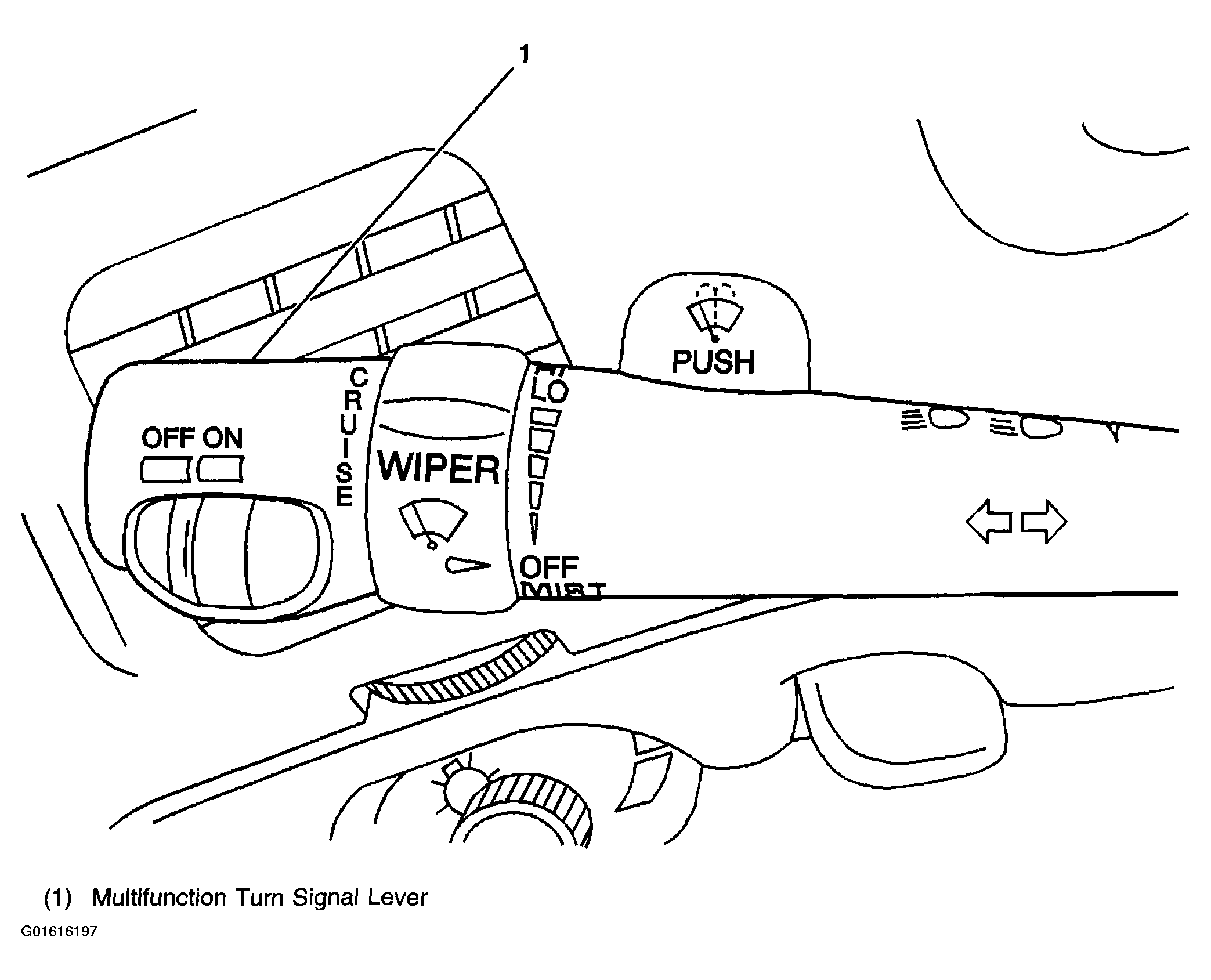

Fig 3: Turn Signal/Multifunction Lever
G01616197Courtesy of GENERAL MOTORS CORP.
