Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the coolant reservoir.
Install the reservoir mounting clip.
Connect the reservoir hose to the radiator overflow fitting.
Reposition the reservoir hose clamp to secure the hose using the J 38185.
Fill the coolant reservoir. Refer to DRAINING AND FILLING COOLING SYSTEM .

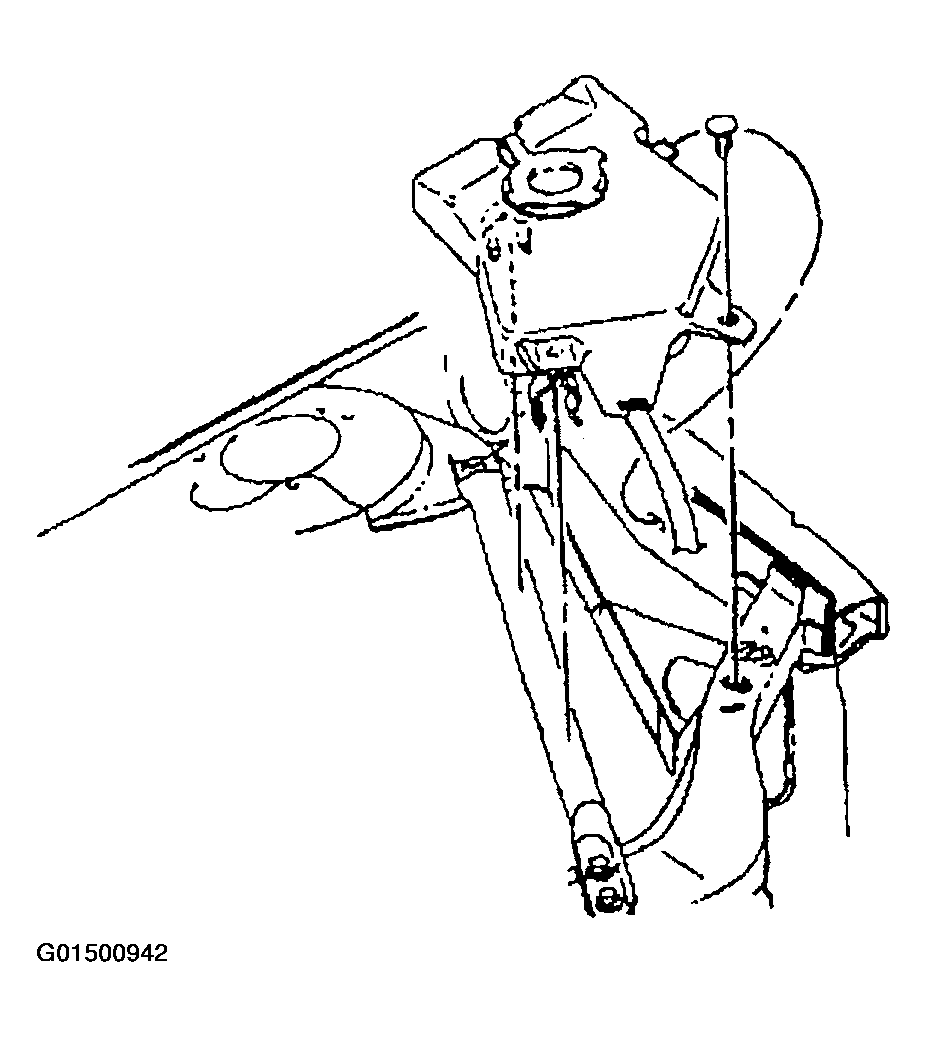

Fig 1: Installing Coolant Reservoir

Courtesy of GENERAL MOTORS CORP.
