Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

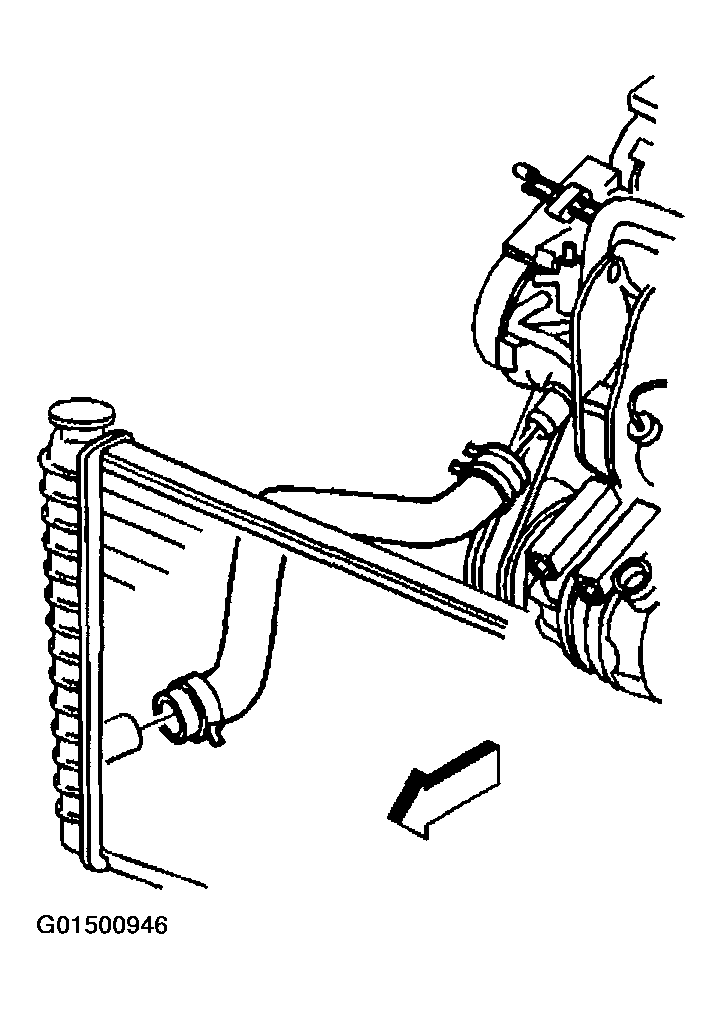

- Install the radiator outlet hose.
- Connect the radiator outlet hose to the radiator.
- Reposition the hose clamp at the radiator to secure the hose using the J 38185.
- Connect the radiator outlet hose to the water pump housing.
- Reposition the hose clamp at the water pump housing to secure the hose using the J 38185.
- Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
