120-Volt Accessory Power Receptacle Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

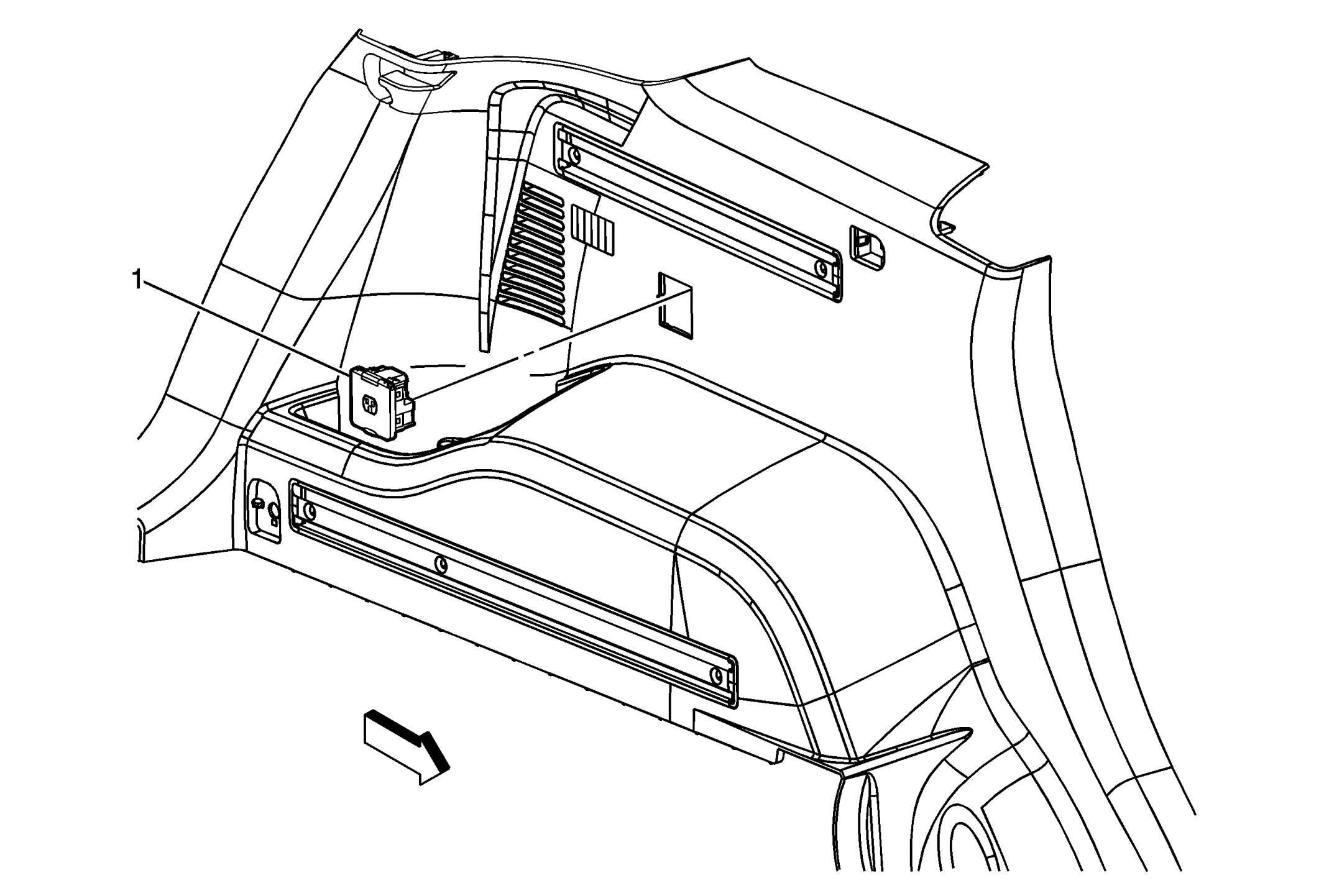

| Callout |
Component Name |
| 1 |
120 Volt Accessory Power Receptacle Procedure
- Disconnect the electrical connectors.
- Unsnap accessory power receptacle from the left rear quarter panel.
|
