Connector Identification

WARNING: This page is about a different car, the 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify connector terminals. See Fig 1, Fig 2, Fig 3, Fig 4, Fig 5 & Fig 6 .

Fig 1: Identifying Sensing & Diagnostic Module (SDM) Connector Terminals

G99B26725

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Driver-side Air Bag Module Connector Terminals

G99F26729

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Lower SIR Coil Connector Terminals

G99E26728

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Passenger-side Air Bag Module Connector Terminals

G99B26733

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Side Impact Air Bag Module Connector Terminals

G99H23785

Courtesy of GENERAL MOTORS CORP.

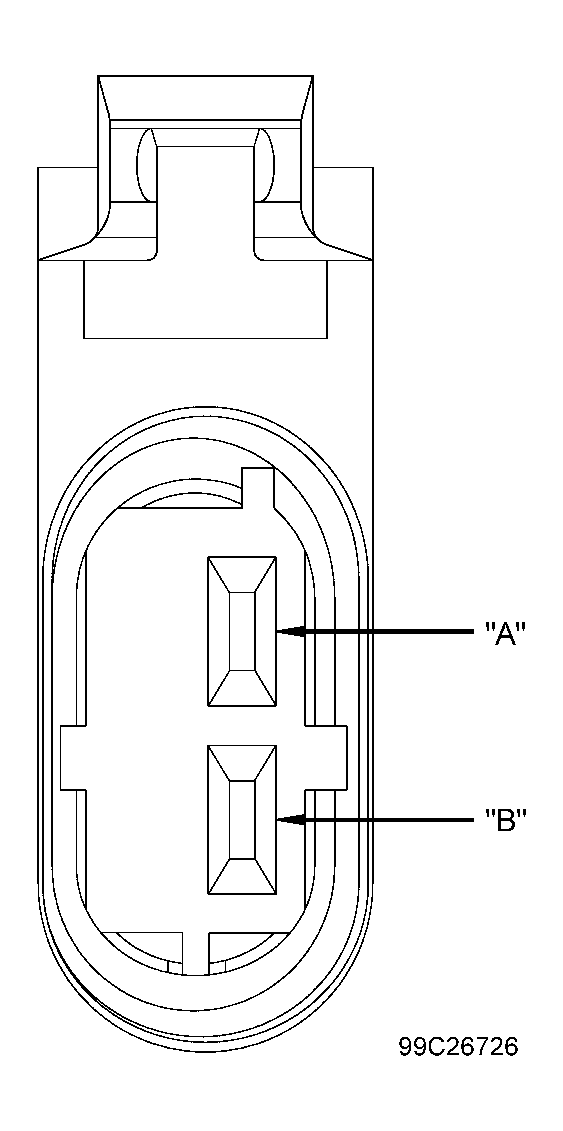

Fig 6: Identifying Side Impact Sensor (SIS) Connector Terminals

G99C26726

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Front End Discriminating Sensor Connector Terminals

G99C26734

Courtesy of GENERAL MOTORS CORP.
