Rear Coil Spring Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear stabilizer. See REAR STABILIZER REMOVAL/INSTALLATION .
Remove in the order indicated. See Fig 1.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. See WHEEL ALIGNMENT .

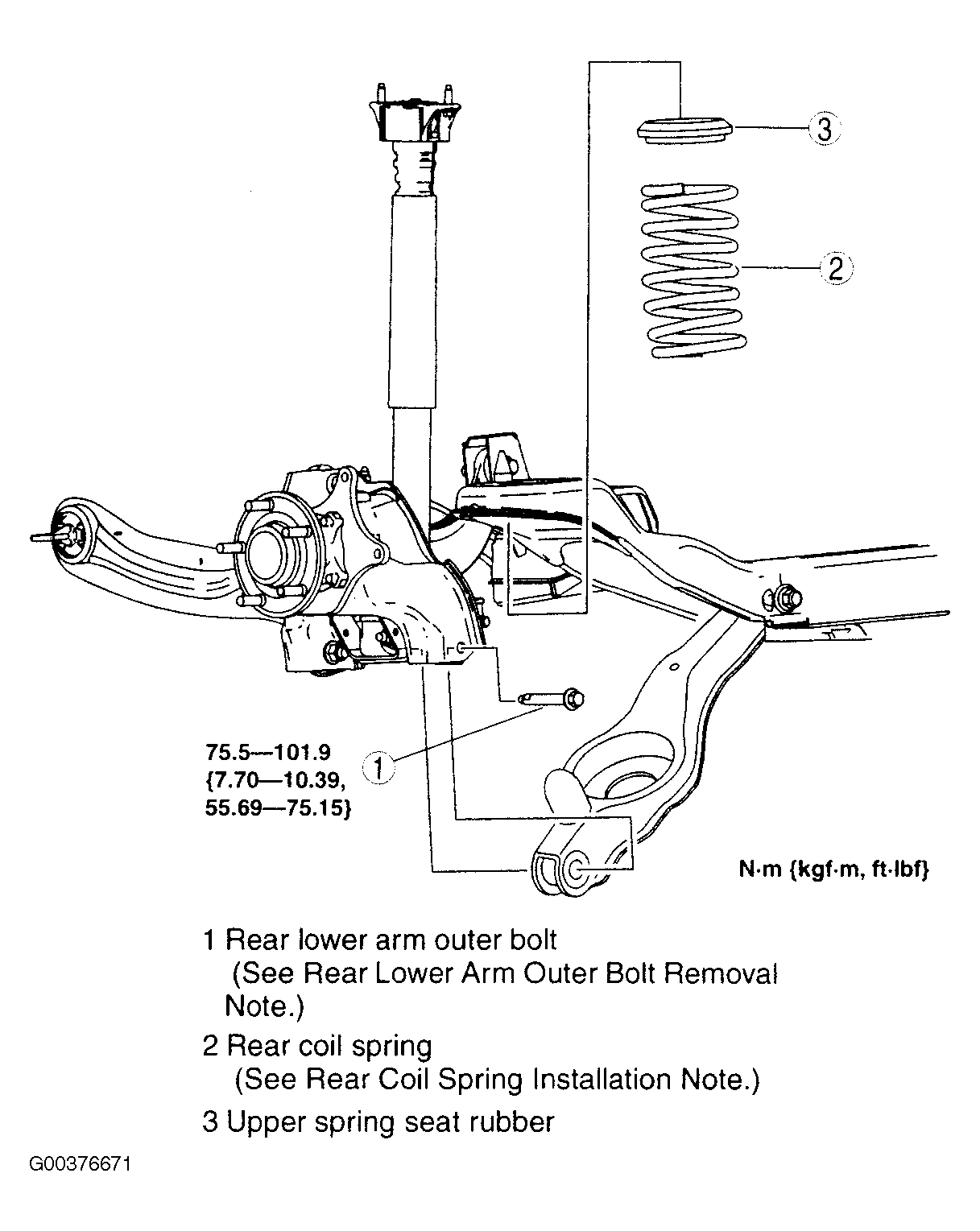

Fig 1: Rear Coil Spring With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
