Stabilizer Bushing Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

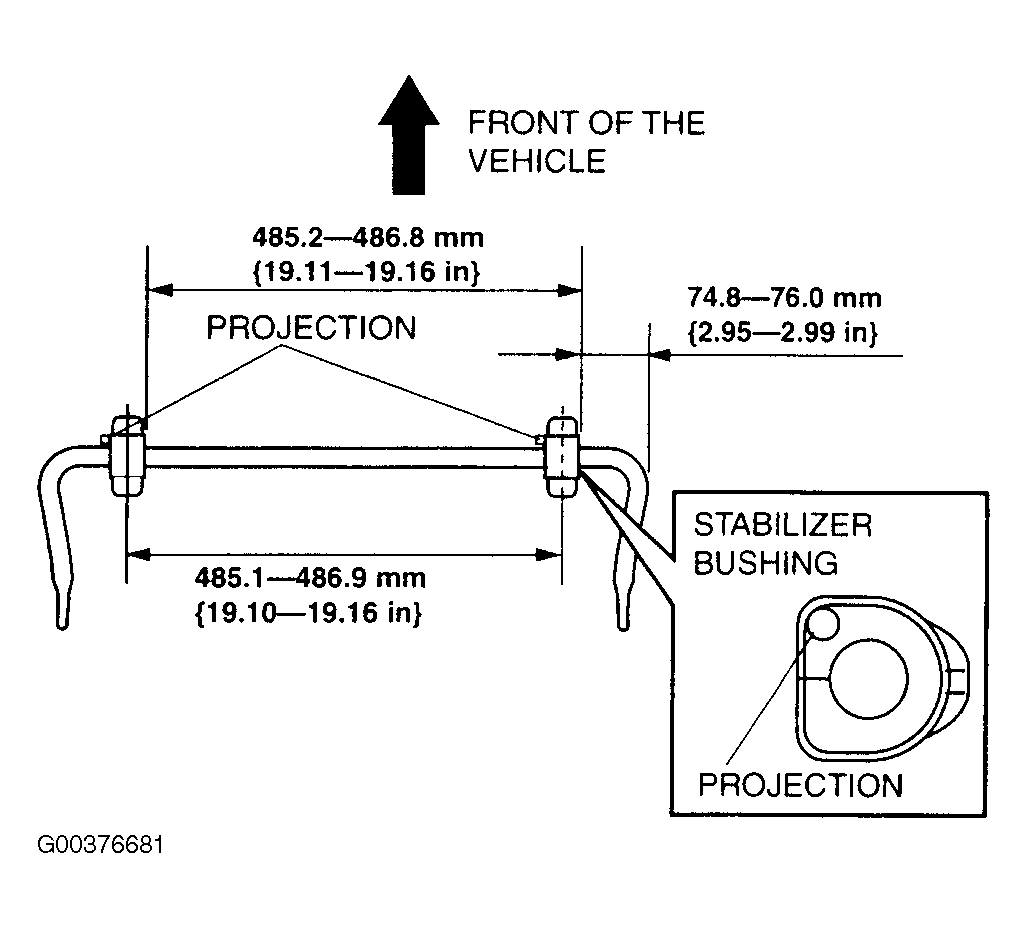

Place the stabilizer bushing so that the projection is facing toward the left side of the vehicle.

Fig 1: Installing Stabilizer Bushings
Courtesy of MAZDA MOTORS CORP.
Widen the stabilizer bushing opening 16-26 mm {0.7-1.0 in} and install the bushing to the rear stabilizer as shown in the illustration.

Fig 2: Stabilizer Bushing Installation
Courtesy of MAZDA MOTORS CORP.
