Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the carpet.

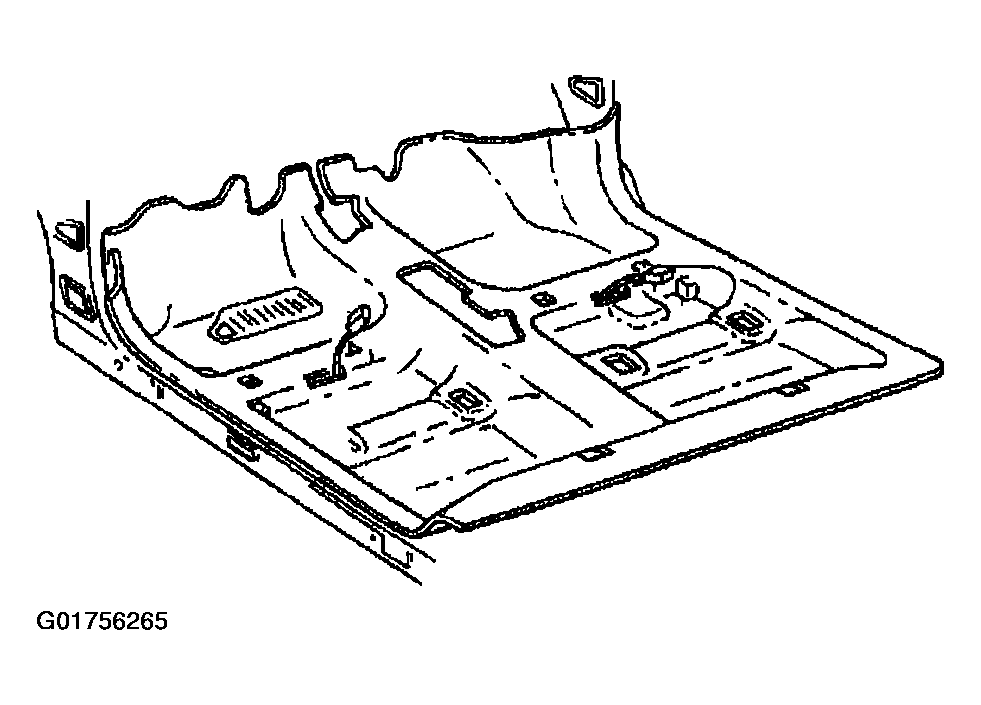

    2. Fig 1: Identifying Front Carpet
    G01756265Courtesy of GENERAL MOTORS CORP.

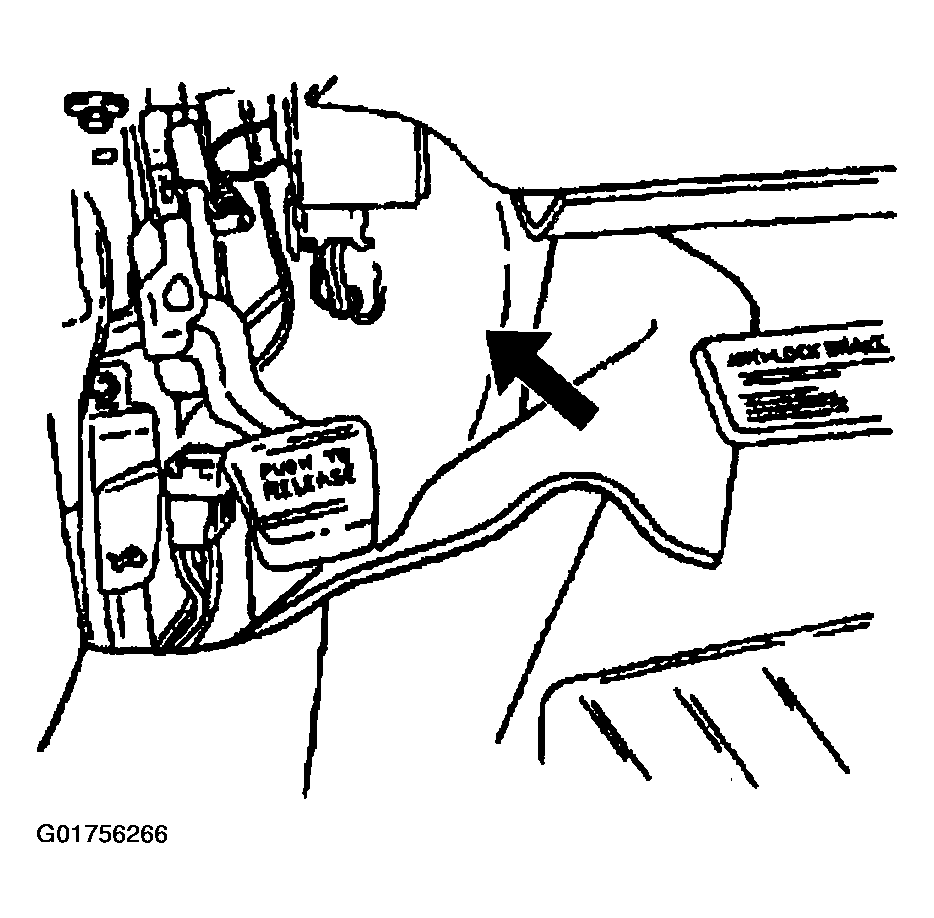

    Fig 2: Removing Front Carpet From Vehicle
    G01756266Courtesy of GENERAL MOTORS CORP.
  2. Install the quarter lower trim. Refer to Trim Panel Replacement - Rear Quarter Lower .
  3. Install the trim panel to the lower center pillar. Refer to Trim Panel Replacement - Lower Center Pillar .
  4. Install the carpet retainers. Refer to Carpet Retainer Replacement - Front  and Carpet Retainer Replacement - Rear  .
  5. Install the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  6. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  7. Install the center console, if equipped. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) or CONSOLE REPLACEMENT - FRONT FLOOR (D55) .
  8. Install the front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET or SEAT REPLACEMENT - SPLIT BENCH .
