Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the lamp socket.
Install the lamp socket to the IP cluster by rotating the socket clockwise.
Install the cluster into the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

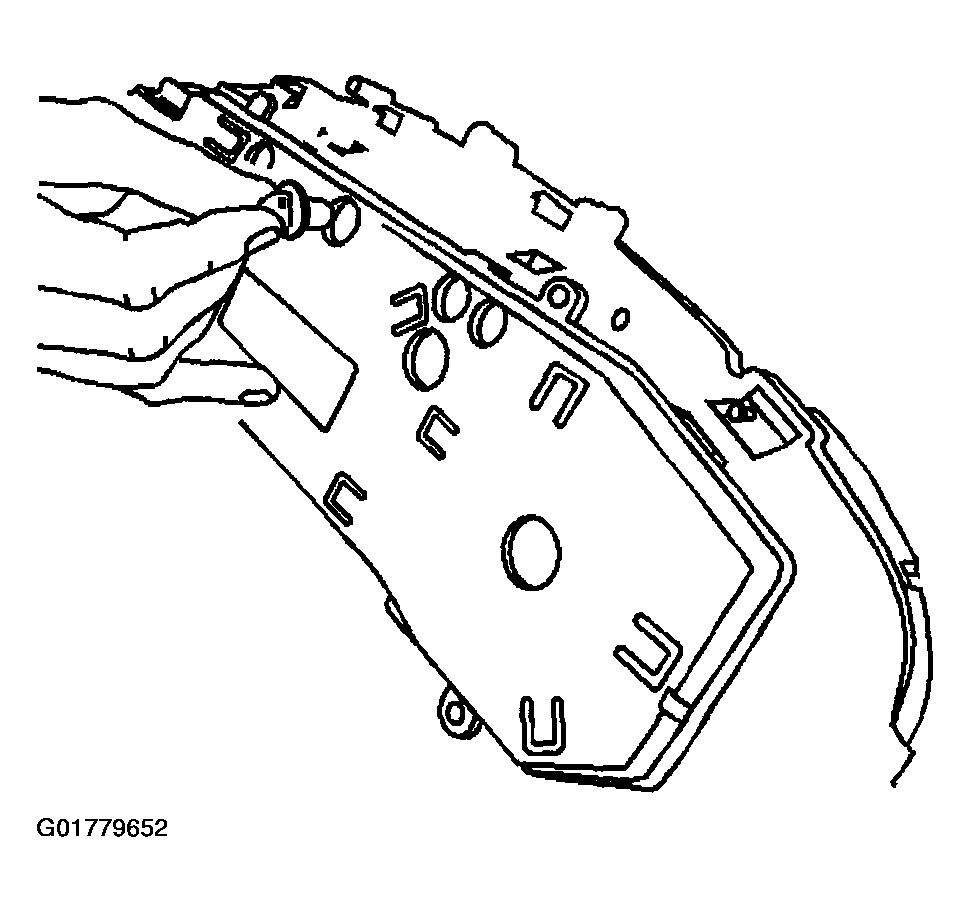

Fig 1: Installing IP Lamp
Courtesy of GENERAL MOTORS CORP.
