Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the stop lamp switch (2).

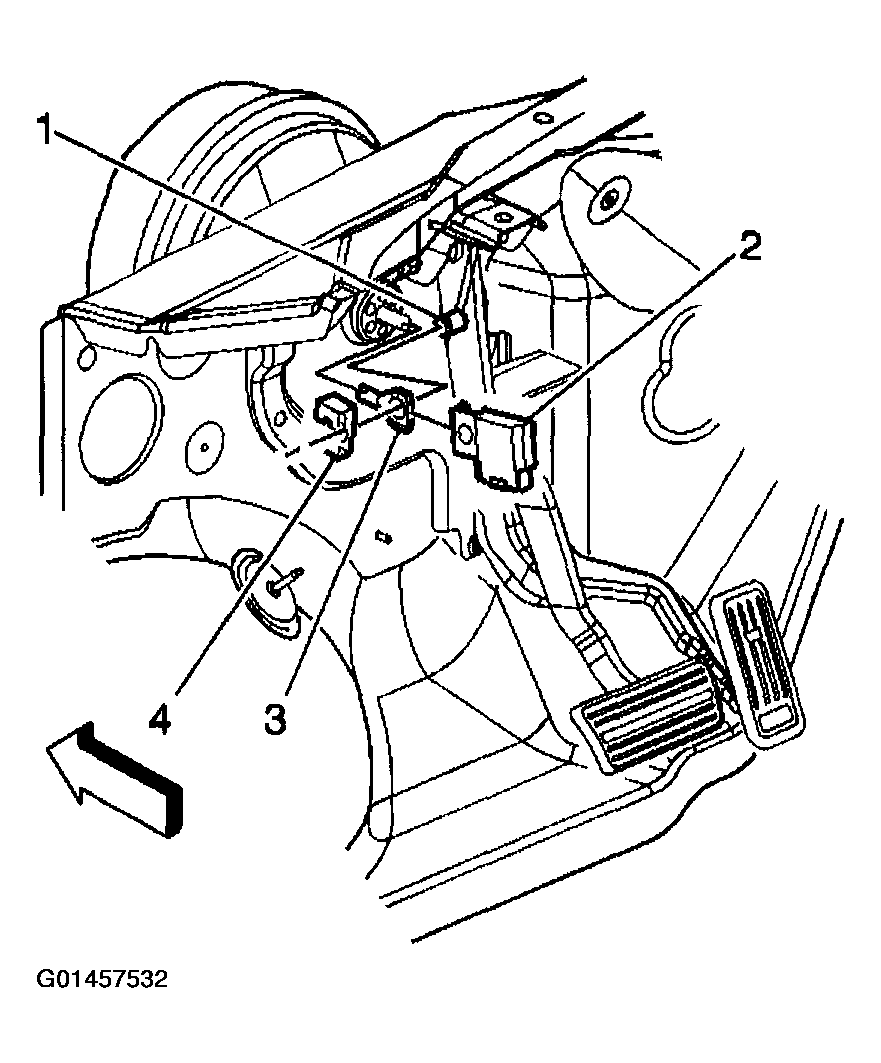

Fig 1: Installing Electrical Connector, Pushrod Retaining Clip & Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Install the pushrod retaining clip (4).
Connect the electrical connector to the stop lamp switch (2).
